Green /White electric golf carts 7.5KM Motor 72V 14 Seater Electric Sightseeing Bus / Tour Golf Cart for park
Performance:
Passenger capacity | 14 seats |
Max.Speed | 28 km/h |
Range(loaded) | 100 km |
Climbing Ability(loaded) | 25% |
Braking Distance | ≤4.5m |
Min.Turning Radius | 6.5 m |
Min.Clearance | 150mm |
Recharge time | 8~10h |
Dimensions
L×W×H | 4965×1520×1970mm |
F/R Tread | 1280/1270mm |
Axle Distance | 2650mm |
Curb Weight | 1260kg |
Max. loading | 1190 kg |
Standard Configurations
Motor | 72V/7.5 KW AC motor | ||
Controller | 72V controller | ||
Battery | battery 6V*12PCS | ||
Body & Roof | High impact fiber glass | ||
Windshield | See-through Laminated glass | ||
Seats | Sponge + artificial leather | ||
Rear view mirror | 2pcs | ||
Bumper | Front and rear Bumper | ||
Tire | 155/80 R12 Radial tire (Auto tire) | ||
Chassis | Welded tubular steel with rust-proof powder coated paint | ||
Steering | Power-Assisted Steering | ||
Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
Sound system | Radio and MP3 player; Speaker | ||
Brake system | Hydraulic double circuit four wheel brake (front disc brake rear hub brake), and mechanical parking (hand brake). | ||
Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |

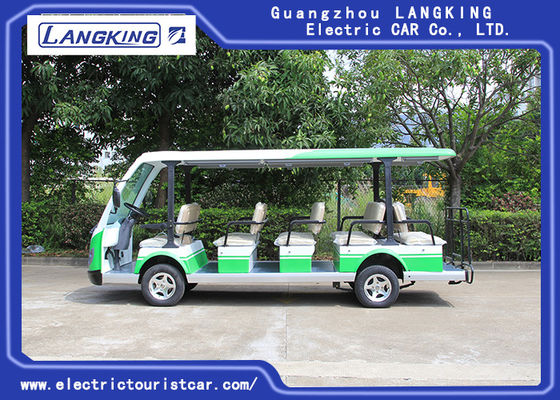

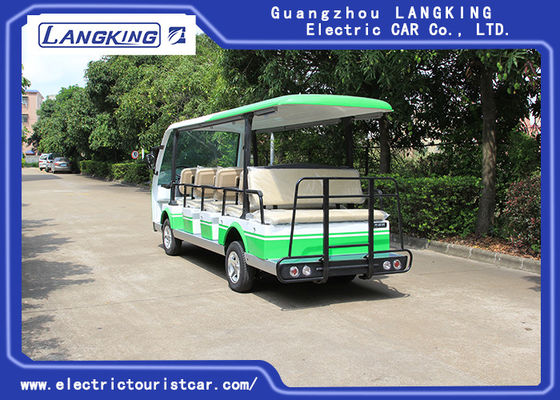

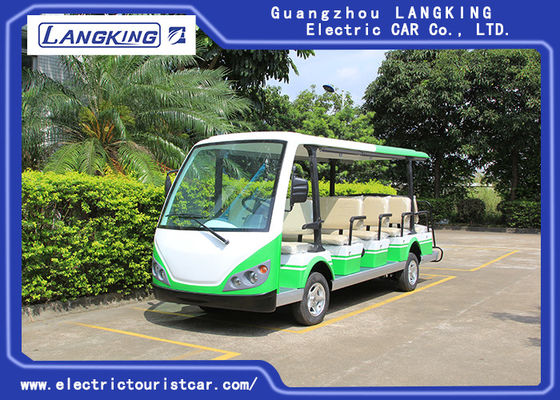

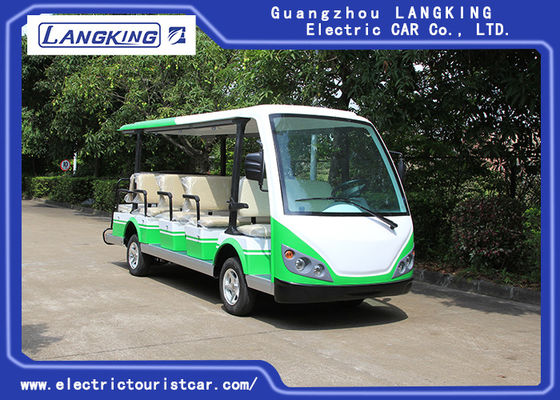

Showing photo:
Feather of electric cart:
Motor:5kw
Passenger Capacity:11
Battery:6V*12PCS
Range:100KM
Max.Speed:40KM/H
Climbing Ability(loaded):20%
Braking Distance:≤4.5m
Min.Turning Radius:5.7m
Charging Time:8-10h
L×W×H:4615*1520*1940mm
F/R Tread:1210/1200mm
Axle Distance:2650MM
Kerb Weight:1050KG
Gross Weight:1930KG
Min.Clearance:150MM
FAQ:
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
