| Place of Origin: | CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y140A-MB23 |
Electric shuttle bus 23 seats 72V/8.5KW bus plastic seats using park
Model LQY140A-MB23 Sprcification
| Qty/20'GP (Assembled) | 1 unit | |
| Qty/40'GP (Assembled) | 2 units | |
| HS CODE | 8703101900 | |
| Performance: | ||
| Passenger capacity | 23 seats | |
| Max.Speed | 28km/h | |
| Range(loaded) | 90km | |
| Climbing Ability(loaded) | 15% | |
| Braking Distance | ≤7m | |
| Min.Turning Radius | 8.5m | |
| Min.Clearance | 150mm | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 5300×1730×2250mm | |
| F/R Tread | 1470/1470mm | |
| Axle Distance | 3050mm | |
| Curb Weight | 1780kg | |
| Max. loading | 2000kg | |
| Standard Configurations | ||
| Motor | 72V/8.5KW motor | |
| Controller | 72V | |
| Body & Roof | High impact fiber glass | |
| Batteries | Batteries 6V*12 pcs | |
| Seats | Plastic seats for buses | |
| Rear view mirror | 2pcs +1 middle mirror | |
| Tire | Steel wheel hub / front 165 R13C Rear 185R14C vacuum meridians | |
| Chassis | Steel frame, surface rust treatment | |
| Steering | Recirculating ball type steering machine, electric assistance | |
| Front Suspension | Loaded front axle, leaf spring + cylinder type hydraulic shock absorber | |
| Rear suspension | Full-floating rear axle, leaf spring non-independent suspension, drum type hydraulic shock absorber | |
| Brake system | Front and rear drum hydraulic brakes, dual circuit hydraulic brake, parking brake | |
| Charger | 72V/25A, Input AC 220V/50HZ | |

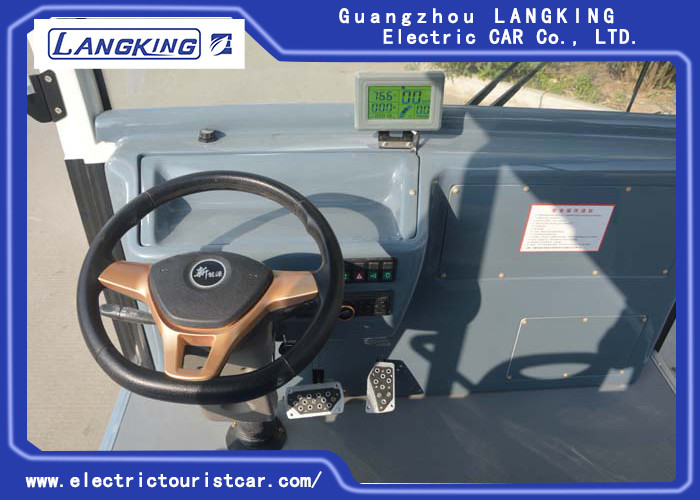

| Dashboard | LCD meter (including current, voltage, speed, speed, cruising range, battery power, light signal, etc.) | |
| Doors and windows | Sheet metal spray door, sliding aluminum tempered glass window, under the organic glass | |
| Sound | MP3, professional speaker | |
| Switch | Start switch, light and wiper combination switch, front and rear reversing, interior lights, warning light and reversing alarm rocker switch | |
| Color Option |
Customized,white,green, yellow, blue.
|
|
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4.Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order MOQ 1 unit .
7. Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
