| Place of Origin: | CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y181A |
18 Seats Speed 28km/h Electric Shuttle Car Model Y181A Used for Kid Tourist car
Specification for 18seats City Tourist Car
| Specifications | ||
| Qty/20'GP (Assembled) | 1 unit | |
| Qty/40'GP (Assembled) | 2 units | |
| HS CODE | 8703101900 | |
| Performance: | ||
| Passenger capacity | 18 seats | |
| Max.Speed | 28km/h | |
| Range(loaded) | 100km | |
| Climbing Ability(loaded) | 15% | |
| Braking Distance | ≤7m | |
| Min.Turning Radius | 6m | |
| Min.Clearance | 150mm | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 5300×1500×2000mm | |
| F/R Tread | 1220/1270mm | |
| Axle Distance | 2930mm | |
| Curb Weight | 1500kg | |
| Max. loading | 1350kg | |
| Standard Configurations | ||
| Motor | 72V/6.3KW motor | |
| Controller | 72V | |
| Body & Roof | High impact fiber glass | |
| Batteries | Batteries 6V*12 pcs | |
| Seats | Three low seat (leather + high-repulse PU + stainless steel armrest) | |
| Rear view mirror | 2pcs +1 middle mirror | |
| Tire | Steel wheel hub / front 155 R12C Rear 165R13C vacuum meridians | |
| Chassis | Steel frame, surface rust treatment | |
| Steering | Recirculating ball type steering machine, electric assistance | |
| Front Suspension | Loaded front axle, leaf spring + cylinder type hydraulic shock absorber | |
| Rear suspension | Full-floating rear axle, leaf spring non-independent suspension, drum type hydraulic shock absorber | |
| Brake system | Front brake dis and rear drum hydraulic brakes, dual circuit hydraulic brake, parking brake | |
| Charger | 72V/25A, Input AC 220V/50HZ | |
| Dashboard | LCD meter (including current, voltage, speed, speed, cruising range, battery power, light signal, etc.) | |
| Doors and windows | Sheet metal spray door, sliding aluminum tempered glass window, under the organic glass | |
| Sound | MP3, professional speaker | |
| Switch | Start switch, light and wiper combination switch, front and rear reversing, interior lights, warning light and reversing alarm rocker switch | |
| Color Option | Customized,white,green, yellow, blue. | |

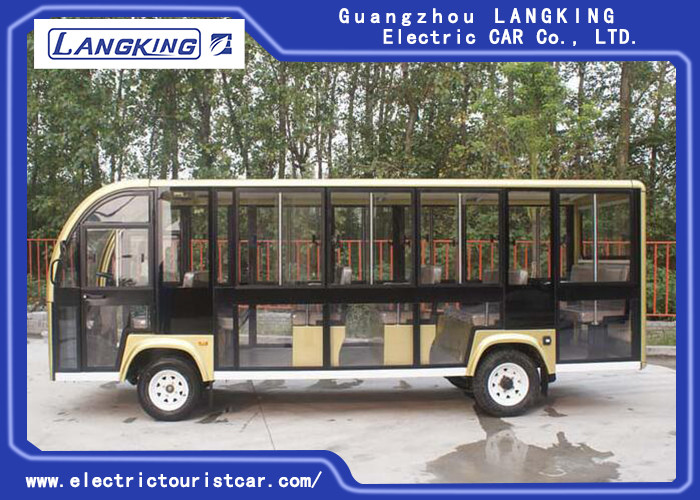

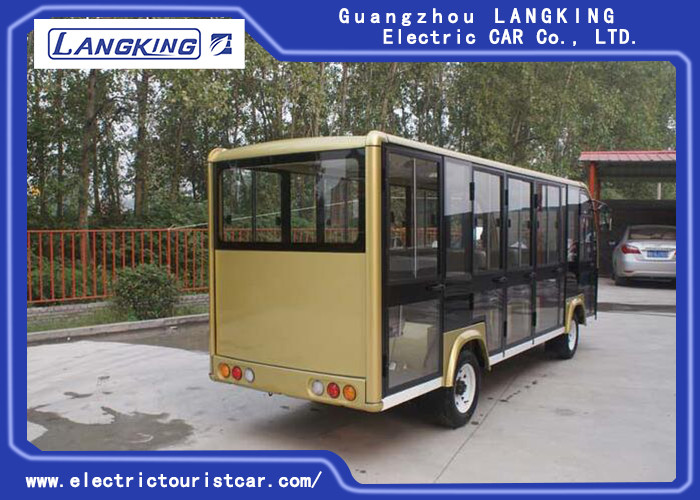

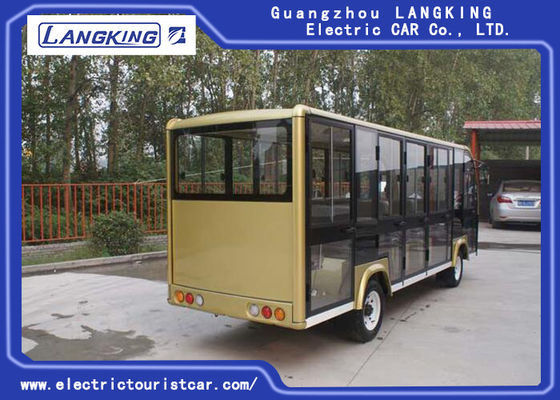

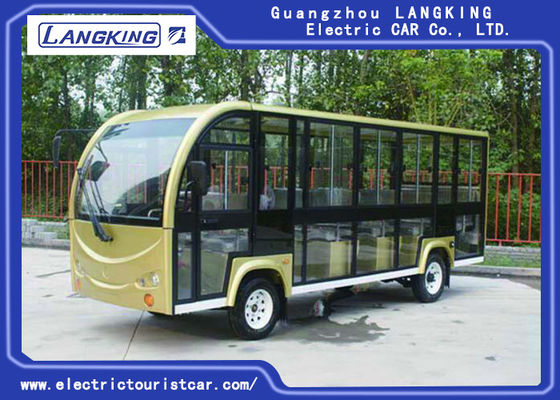

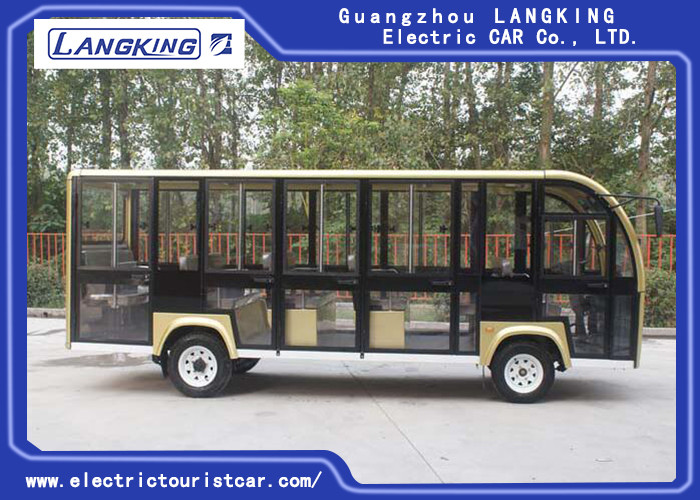

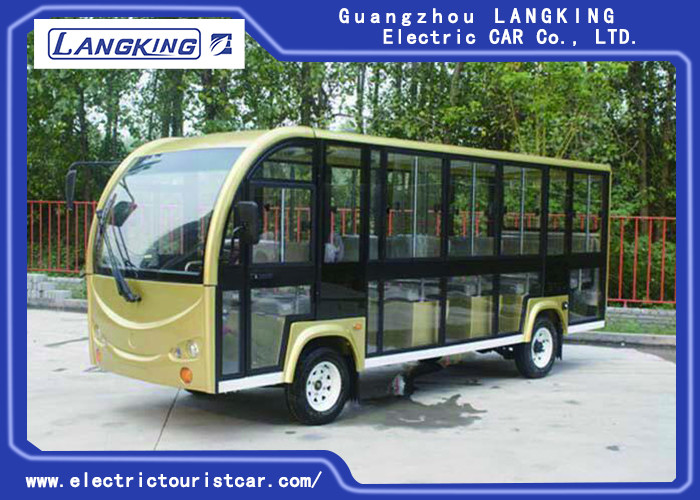

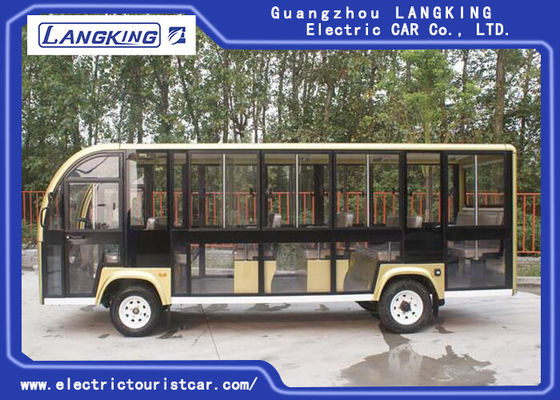

Picture:
Model 18seats car is a great Electric City tourist car .It's an ideal shuttle for using in school hotel, resort, residential community, airport, port, stations, museum, theme park, historic town, zoo, factory, campus, garden and any places where need a quite and clean vehicles, for moving cargos.
Electric 18 seats Tourist Cars offer advantages of both an economic and technical nature. Running costs are lower as, unlike combustion vehicles, there aren't any parts subject to wear, and the motor works in a cleaner, more simple manner than traditional engines.
But there are also other benefits, such as the possibility to move freely even in areas with traffic limitations because these vehicles are non-polluting. This is a huge advantage nowadays, given the ever increasing traffic bans. Consumption is very low,
Whether you need to transport 17 guests with luggest box, the Standard 18seats is a beautiful addition to any resort's fleet. Using the latest design and quality components from around the global, while providing excellent value for money. Ensuring a level of comfort unavailable,Adjustable camber provides longer tyre life. Rollaway protection and downhill regenerative braking are included as standard equipment.
Have your vehicle finished in your choice of colour scheme, with black or ivory coloured seats. Other options include alloy wheels,motors, weather enclosures and rear vision mirrors. The Standard 18seats is one of the most beautiful golf carts has ever seen! With class-leading 150mm ground clearance, headlights and tail lights, this 18-seat tourist cart is worthy of your consideration.
Why choose Langking's electric cars for work?
· Hundreds of configurations available
· Negotiable slope up to 15%
· 3 different types of cars to choose
· 100% made in China
FAQ:
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty for the main parts. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
