Multi - Purpose Electric Sightseeing Bus 8 Seater with a Cargo Box Tourist Coach
Model THA8 is a 8 Passenger Electric Shuttle Tour Bus, it is the second generation electric mini bus of ours. It has aluminum hard door. It's an ideal shuttle for using in hotel, resort, residential community, airport, port, stations, museum, theme park, historic town, zoo, factory, campus, garden and any places where need a quite and clean vehicles, for people moving. It can also be used as public bus.
Electric Shuttle Bus 8 seats Specifications :
| HS CODE |
8703101900 |
| Qty/20'GP (Assembled) |
1 UNIT |
| Qty/40'HQ (Assembled) |
3 UNITS |
| Passenger capacity |
8 seats |
| Max.Speed |
30 km/h |
| Range(loaded) |
80-100km(level road) |
| Climbing Ability |
30% |
| Braking Distance |
＜5m |
| Min.Turning Radius |
5m |
| Min.Clearance |
150 mm |
| Recharge time |
＜5h |
| L×W×H |
3800*1530*2100mm |
| F/R Tread |
1320mm//1340mm |
| Axle Distance |
2000mm |
| Curb Weight |
990kg |
| Max. loading |
680 kg |
| Motor |
48V/5KW AC motor |
| Controller |
48V |
| Battery |
Lithium iron phosphate battery 48V 200Ah |
| Body & Roof |
The front cover, seat bucket, and handlebar frame are made of automotive-grade PP material through injection molding, providing UV resistance and aging durability. [High-strength aluminum alloy special profiles for front and rear supports + high-grade aluminum alloy welding]/Injection molding of automotive-specific PP material |
| Windshield |
Automobile laminated glass plus windshield wipers |
| Seats |
Ergonomic chair, made of pure foam and leather upholstery |
| Rear view mirror |
Left and right mirrors |
| Tire |
165/70R13C vacuum tire (diameter 560mm); 13-inch steel wheel |
| Front Suspension |
MacPherson independent suspension system, same as the Wuling Hongguang model, featuring coil springs and telescopic hydraulic shock absorbers. |
| Rear suspension |
Integral rear axle with a high reduction ratio gearbox of 18:1 [strong climbing power] + six leaf springs + telescopic hydraulic shock absorber |
| Lighting system |
Front headlights, turn signals, reverse lights, taillights, snail horn, reverse horn |
| Brake system |
Four-wheel hydraulic brakes with rear parking brake and electric vacuum brake assist system |
| Steering system |
Dual gear and rack steering system with automatic clearance compensation and electric power steering ESP system |
| Charger |
Intelligent vehicle-mounted charger 48V/25A, charging time less than 5 hours |
| Dashboard |
In-molded dashboard, combination instrument panel, instrument indicator lights, switches, combination switches, multimedia in-car player |
| Optional color |
White, Metallic silver, Metallic black, Blue,Bright cherry-red, Green, Red. |

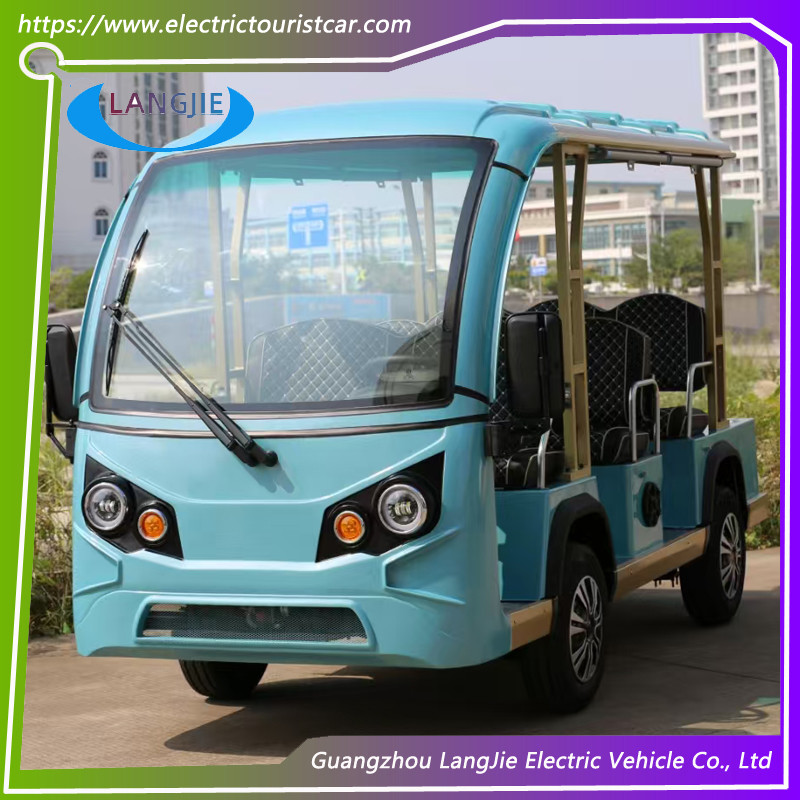

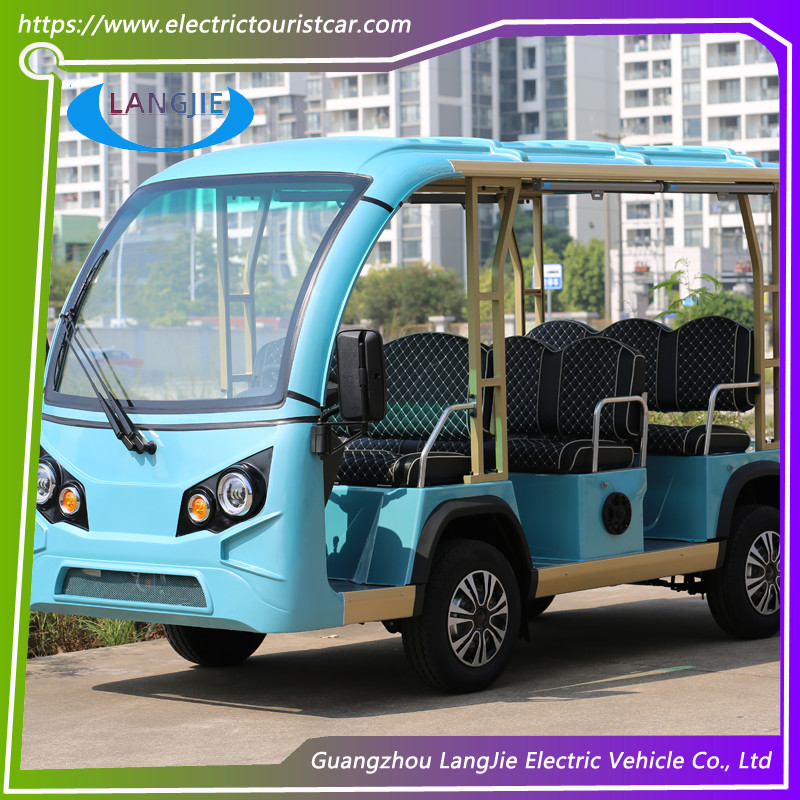

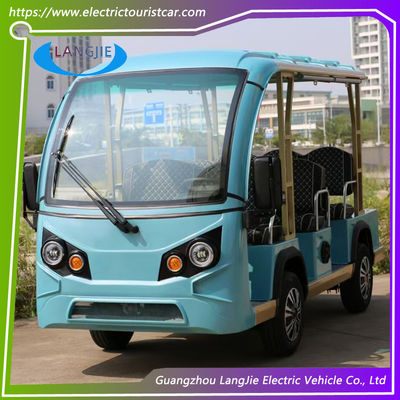

Showing Photos:
1). China programmable controller
2). North America ,European, Australia and Asia are the main market.
FAQ
1, what's your warranty time?
All Langjie golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2, What's the production time?
Normally for 30 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
