| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | Y113B |
| Document: | Product Brochure PDF |
11 Passenger Electric Sightseeing Bus For Museum, Park , Garden , Resort
Model LQY113B is a 11 Passenger Electric Shuttle Tour Bus, it is the second generation electric mini bus of ours. It has aluminum hard door. It's an ideal shuttle for using in hotel, resort, residential community, airport, port, stations, museum, theme park, historic town, zoo, factory, campus, garden and any places where need a quite and clean vehicles, for people moving. It can also be used as public bus.
Specifications :
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Aassembled) | 2 units |
Performance:
| Passenger capacity | 11 seats |
| Max.Speed | 40km/h |
| Range(loaded) | 100km |
| Climbing Ability(loaded) | 20% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 4615×1520×1970mm |
| F/R Tread | 1280/1270mm |
| Axle Distance | 2650mm |
| Curb Weight | 1230kg |
| Max. loading | 880kg |
Key Components
| Motor | 72V/5KW DC motor | ||
| Controller | Curtis 72V/400A controller | ||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Power-Assisted Steering | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

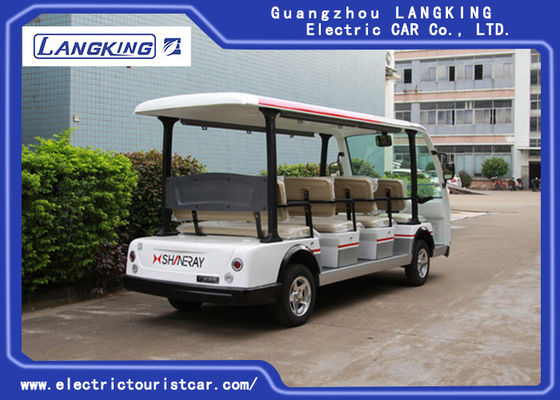

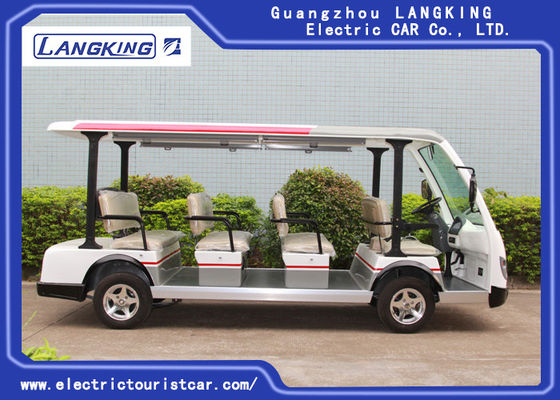

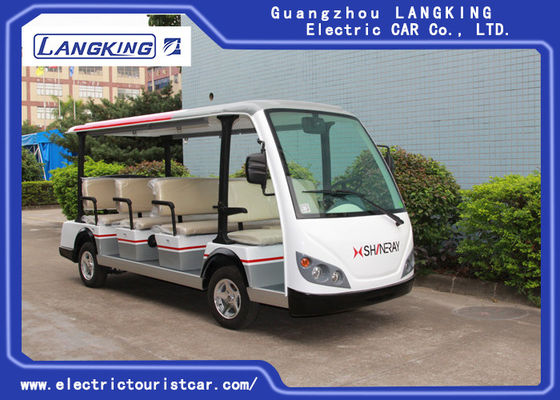

Product Showing:
Packaging Details
Container order, remove the canopy and package in the protective material. Sample order, packaged in the individual steel shelf and the protective material
Port:Guangzhou or shenzhen
Lead Time :4 weeks after receiving the deposit
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 120 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
FAQ:
1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
4.Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
