CE Certificate 4 Seater Electric freight car / Electric Hotel Buggy Car / electric van With Cargo 28km/h for Hotel Factory
Feature Description
this vehicle is modified base on standard F090 electric cargo van.with a roof
Performance
Passenger capacity | 2 seats |
Max.Speed | 25km/h |
Range(loaded) | 70km |
Climbing Ability(loaded) | 12% |
Braking Distance | 4m |
Min.Turning Radius | ≤4.5m |
Recharge time | 8~10h |
Dimensions
L×W×H | 3820×1430×1940 mm |
Axle Distance | 1935mm |
Curb Weight | 850kg |
Max. loading | 900kg |
Qty/40'GP (Assembled) | 3 units |
Standard Configurations | |||
Motor | 48V/5KW AC motor | ||
Controller | 48V (China Brand ) | ||
Battery | Maintenance-free battery 6V/170Ah*8pcs | ||
Body & Roof | High strength FRP body + sheet metal cargo platform enclosure/Bifacial fiberglass. | ||
Seats | High density polyurethane foam, outer wear-resistant waterproof leather fabric. | ||
Rear view mirror | 2pcs | ||
Tire | Strengthened vacuum meridian tire, specification model: 155 / 80 R12, equipped with aluminum alloy rim. | ||
Chassis | High strength steel pipe welding structure, anti-rust electrophoretic paint treatment. | ||
Steering | Gear rack steering system | ||
Front Suspension | McPherson independent suspension, spiral spring + cylinder hydraulic shock absorber. | ||
Rear suspension | Directly connected integral rear axle, steel plate spring + cylinder hydraulic damping non-independent suspension. | ||
Lighting system | Headlights, turn signals, rear combination lights, reversing buzzers, electric horns. | ||
Brake system | Hydraulic double circuit four-wheel drum brake is used, with mechanical parking (handbrake). | ||
Charger | Car charger, Output:48V/25A, Input AC 220V/50HZ | ||
Dashboard | Fiberglass molded instrument panel, voltmeter, ammeter, steering indicator light, combination switch and so on. | ||

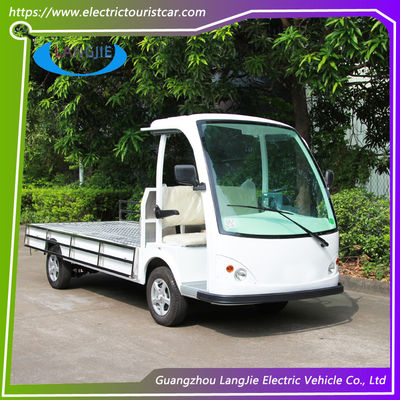

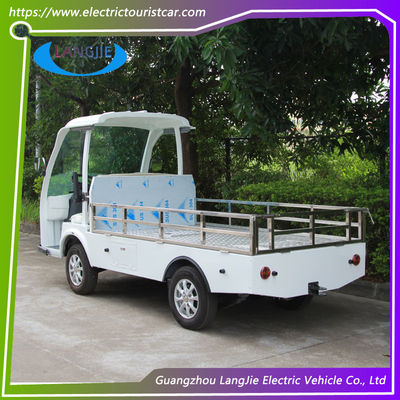

Showing Photos :
FAQ
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty for the ver the repair cost; otherwise, we will send replacements and cover the freight cost if any.
main parts. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will co
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone.
Q5. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q6: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before shipment. Please contact us for more information.
If there is any quality problem, Please contact us .
