Electric Shuttle Car
Created with Pixso.

Battery Operated Electric Shuttle Car 2 Seats For Museum , Mountain Area

Battery Operated Electric Shuttle Car 2 Seats For Museum , Mountain Area

Brand Name: LANGJIE
Model Number: G100
MOQ: 1 Unit
Price: Negotiate
Payment Terms: T/T
Supply Ability: 100Units/ month
Detail Information
Place of Origin:
GUANGZHOU ,CHINA
Certification:
CE
Part Name:
Electric Car
Passenger Capacity:
2 Seats
MOQ:
3 PCS
Overall Dimension(L*W*H, Mm):
4490×1610×1900 Mm
Rudder:
LHD
Wheel Base:
3050mm
Wheel Base Front/rear:
1386/1408mm
Tire Specifications:
175/70R14C
Maximum gradability:
27%
Maximum speed:
90km/h
Packaging Details:
Non packing
Supply Ability:
100Units/ month
Highlight:

electric shuttle bus

Product Description

Battery Operated Electric Shuttle Car 2 Seats For Museum , Mountain Area



Loading 2 Person



Green energy ,pure electric,zero pullution,no noise.the model adopts low carbon environmental protection design simple front design,with large cambered passenger car special viewing glass.



Feature Description

MOQ 3 UNITS
Passenger Capacity(seats, including driver) 2 seats
Overall Dimension(L*W*H, mm) 4490×1610×1900 mm
Container volume 2622×1457×1340mm
Rudder LHD
Wheel base 3050mm
Wheel base front/rear 1386/1408mm
Tire specifications 175/70R14C
Maximum gradability 27%
Maximum speed 90km/h
Minimum ground clearance 125mm
Min turning diameter 11.9m
Sprung mass 950KG
Max. total mass 2510KG
Mass of preparation 1430KG
Full load shaft load 1135KG
1375KG
Power type EV
Battery type Lithium Iron Phosphate
Electric power 41.86 kwh
Charging time(fast charge) 1h
Rated/Peak power 30/60kw
Rated/Peak torque 90/220 N·m
Pure electric driving range(NEDC) 300 km
Front suspension Macpherson independent suspension
Rear suspension Multi-link non-independent suspension
Drive system Integral rear axle reduction assembly

Steering gear
Rack and pinion type mechanical steering gear
AC Optional
Basic hand tool Optional
Battery Heating Optional
Note: This information is only for reference, Labgjie has final explanation right.

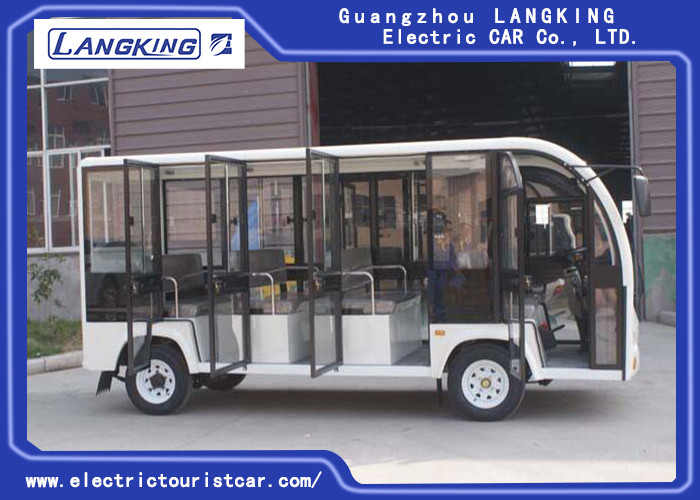

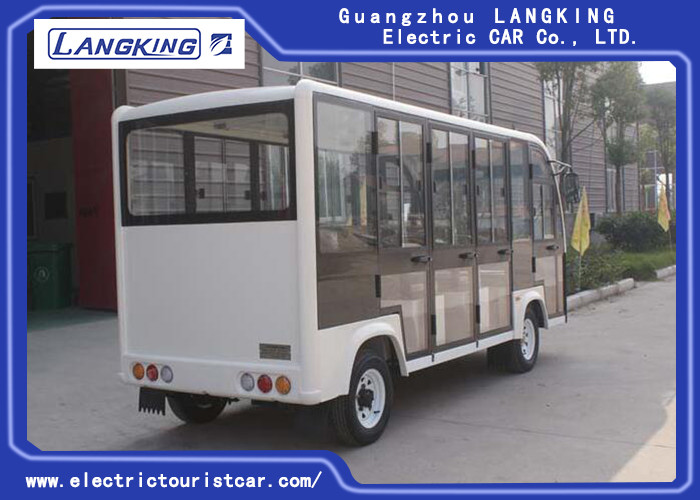

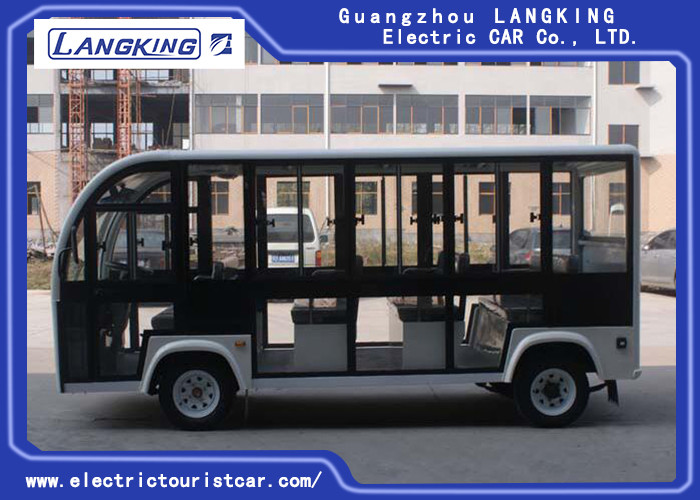

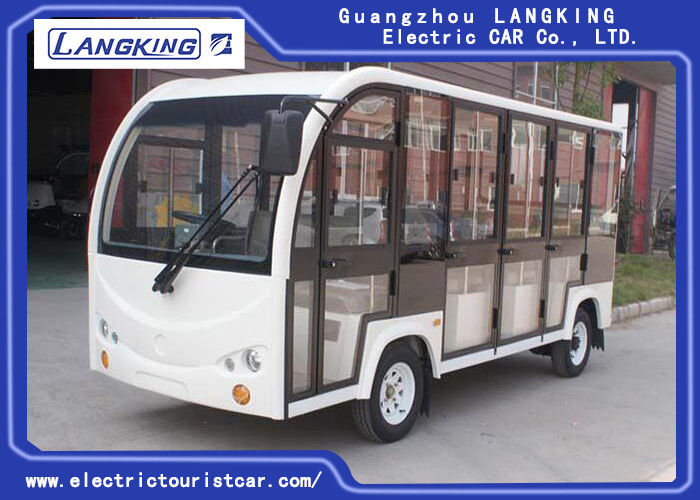

Others Showing Photo



Battery Operated Electric Shuttle Car 2 Seats For Museum , Mountain Area 0Battery Operated Electric Shuttle Car 2 Seats For Museum , Mountain Area 1

Application:





* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.



Electric Shuttle Car had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of electric shuttle Cart, to facilitate our customers of different kinds.



Electric Shuttle car that can handle the tough jobs while going easy on the turf. Electric Shuttle car has the hauling power you would not expect from an electric vehicle.



FAQ:



1. What's the production time?
Normally for 30 working days.



2. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.



3.Can we also purchase the parts?

Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.


4. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.



5.What is your MOQ?
You can order MOQ 1 unit .


6.Can we put the Logo we designed on the vehicle?
Yes, you can put your own Logo on the vehicle where you like.
