Features

Specifications

Part Name: Electric Freight Car

Qty/40'GP (Assembled): 2 Units

Passenger Capacity: 2 Seats With Cargo

Climbing Ability(loaded): 10%

Motor: 72V/7.5KW AC Motor

Rear View Mirror: 2pcs

Max. Loading: 1000kg

Recharge Time: 8-10h

Highlight:

electric utility carts

Name: 72V 7.5KW 2 seats Small Electric Pickup Truck Shorter Loading Platform 1000kgs
Brand: Guangzhou Langjie Electric Vehicle Co., Ltd.
SKU: D-GH2
Price: 300.00 USD
Availability: InStock

Basic Infomation

Place of Origin: GUANGZHOU ,CHINA

Brand Name: LANGJIE

Certification: CE

Model Number: D-GH2

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Steel Frame or Non Packing

Delivery Time: 20-25 working day

Payment Terms: T/T

Supply Ability: 300Unit/month

Gallery

72V 7.5KW 2 seats Small Electric Pickup Truck Shorter Loading Platform 1000kgs

Product Description

Small Electric Pickup Truck Shorter Loading Platform 1000kgs Loading Capacity

HS CODE	8709119000
Qty/20'GP (Assembled)	1 unit
Qty/40'GP (Assembled)	2 units
Specifications
Performance:
Passenger capacity	2 seats
Max.Speed	30km/h
Range(loaded)	80-100km
Climbing Ability(loaded)	10%
Braking Distance	≤4.5m
Min.Turning Radius	5.7m
Min.Clearance	150mm
Recharge time	8~10h
Dimensions
L×W×H	4000mm×1500mm×2000mm
F/R Tread	1200㎜/1200㎜
Curb Weight	1000 kg
Max. loading	1000kg
Standard Configurations
Motor	72V/7.5KW AC motor
Controller	72V 450A controller
Battery	Maintenance-free battery 8V/150Ah*9pcs
Body	Engineering plastic material
Seats	Soft seat
Rear view mirror	2pcs
Tire	Vacuum radial tire 165 / 70R13
Chassis	Electroplated powder coated steel structure, chassis is strong and durable, corrosion resistant
Steering	Electric assistance makes steering easier
Suspension	The front suspension features an independent strut-type shock absorber, while the rear has an independent shock absorber, providing a smooth and comfortable ride.
Brake system	Four-wheel disc brakes at the front and drum brakes at the rear with hydraulic braking, vacuum-assisted for smooth operation, excellent braking performance, and high safety and reliability.
Charger	Fully automatic high-efficiency pulse microcomputer smart charger that stops automatically once fully charged, effectively extending battery life.
Function	Self-unloading function

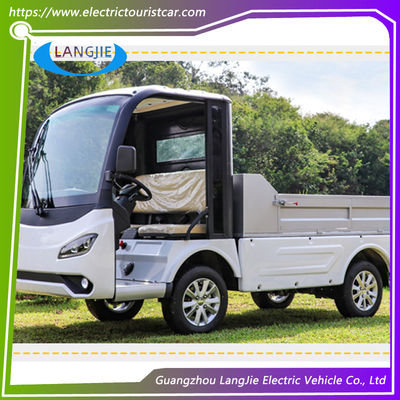

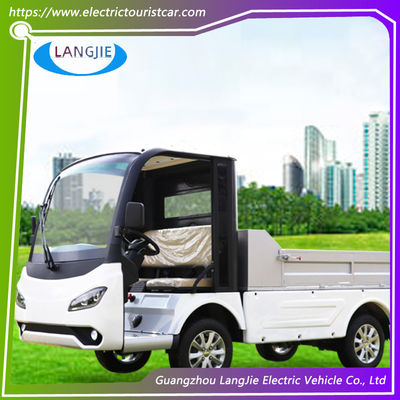

Product showing:

72V 7.5KW 2 seats Small Electric Pickup Truck Shorter Loading Platform 1000kgs 0

Our Service:

We promise to answer your questions about handling, maintaining or repairing within 12 hours.

If there is any quality problem, we promise to deliver the spare parts within 5 working days.

FAQ:

1, what's your warranty time?
All Langjie golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.

2, What's the production time?
Normally for 30 working days

3, What's your payment term?
T/T 30% deposit and balance paid before shipment

4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

5, How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
