Electric Car Battery Charger
Fast Charging 25A Electric Car Battery Charger 48V Aluminum Material

Fast Charging 25A Electric Car Battery Charger 48V Aluminum Material

Product Details:
Place of Origin: Guangzhou
Brand Name: Langking
Model Number: 48V 25A
Detail Information
Place of Origin:
Brand Name:
Model Number:
48V 25A
Electric Vehicle Charger:
Delivery Time ::
Material ::
On-board ::
Yes, On - Board
Input Volt ::
110 / 230 Vac
Net Weight ::
6.5 KG
Size ::
330×150×90 Mm
High Light:

High Light

High Light:

electric golf cart battery charger


club car 48 volt battery charger

Trading Information
Minimum Order Quantity:
1 PC
Packaging Details:
Carton Box
Delivery Time:
5-10 Working Days
Payment Terms:
Supply Ability:
Product Description

Electric Vehicle Charger 48V for Club Cart Shuttle Bus Classic Car


Technical parameters



Case Material: Aluminum Size: 300*150*90 MM
Net Weight: 5.5 KG Input Volt: 230 Vac
Output: Rated 48V 25A, Max 54.6 / 58.4 / 58.8V Housing Color: Black Or Silver
Battery Types: Lithium Or Lead Acid Battery Charging Method: Pre Charge, CC, CV, Floating / Trickle / Shut Off
Applied To EV: Electric Golf Cart, Electric Club Car and E-tourist Car

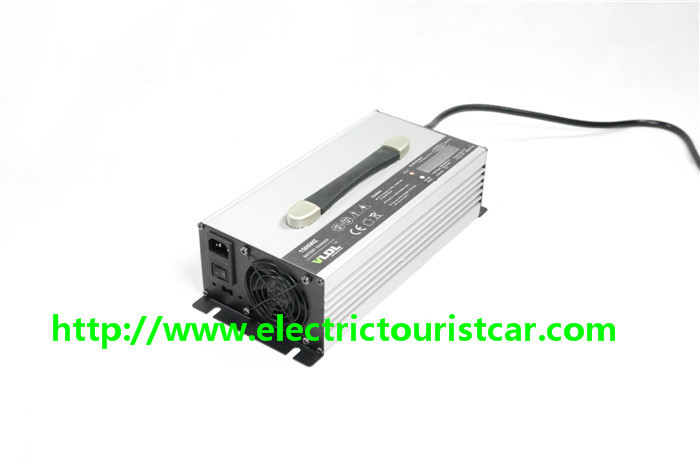

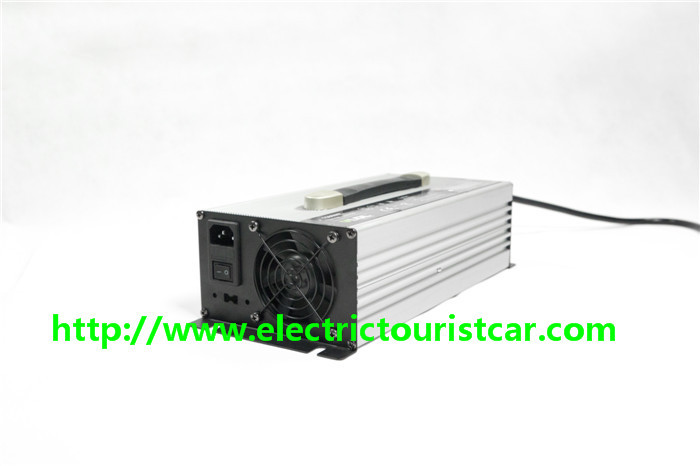

4 Steps Portable Automatic Battery Charger 48V 25A High Power With Aluminum Housing


Brief Description:


Portable battery charger 48 volts 25 amps with aluminum housing and small size. Input 230 Vac. Max charging voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 48V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.





AC input voltage: 110 or 240Vac

AC input freq.: 50 / 60 Hz

Rated output: 48V 25Amps

Max charging voltage: 58.8V

Dimensions(LxWxH): 300 x 150 x 90 mm

Net weight: 5.5 KG

Housing: Aluminum


Charging method:


For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, trickle, auto cut-off.




High Frequency Switching Mode Power Supply

Smart MCU controlled





Short circuit, Over-voltage, Over-temperature, Reverse Polarity.




Fully 2-year warranty with Free Replacing Policy.

Response in 24 hours after getting failed product report from customers.




Charging 48V Lead-acid Battery Powered Electric Golf Cart, Electric Club Car and E-tourist Car.


Input Plug & Output Connector:


We supply different plugs and connector by customer's applications.


Output series: 1,500W Size: 300×150×90 mm Net weight: 5.5 KG
Input Model Apply to battery types Floating V CV (V) CC (A) Switching


AC Input:










VL1280L 12V LiFePO4 Battery   14.6V 80A CC5~8%
VL1280 12V Lead-acid Battery 13.5V 14.7V 80A CC20%
VL1480 14V AGM Battery 13.5V 14.4V 80A CC20%
VL1680L 16V LiFePO4 Battery   18.2V 80A CC5~8%
VL2445LM 24V Li-MnO2 Battery   29.4V 45A CC5~8%
VL2445L 24V LiFePO4 Battery   29.2V 45A CC5~8%
VL2445 24V Lead-acid Battery 27.6V 29.4V 45A CC20%
VL3630LM 36V Li-MnO2 Battery   42V 30A CC5~8%
VL3630L 36V LiFePO4 Battery   43.8V 30A CC5~8%
VL3630 36V Lead-acid Battery 41.4V 44.1V 30A CC20%
VL4825LM 48V Li-MnO2 Battery   54.6V 25A CC5~8%
VL4825L 48V LiFePO4 Battery   43.8V 25A CC5~8%
VL4825 48V Lead-acid Battery 55.2V 58.8V 25A CC20%
VL6020L 60V LiFePO4 Battery   73V 20A CC5~8%
VL6020 60V Lead-acid Battery 67.5V 73.5V 20A CC20%
VL7215L 72V LiFePO4 Battery   87.6V 15A CC5~8%
VL7215 72V Lead-acid Battery 81V 88.2V 15A CC20%
VL8413L 84V LiFePO4 Battery   102.2V 13A CC5~8%
VL8413 84V Lead-acid Battery 94.5V 102.9V 13A CC20%
VL9612L 96V LiFePO4 Battery   116.8V 12A CC5~8%
VL9612 96V Lead-acid Battery 108V 117.6V 12A CC20%
Note: customized input / output / plug type / connectors are available.
