Green / White Electric Shuttle Car / 7.5KM Motor 72V 14 Seater Electric Golf Carts For Park

Product Details:

Place of Origin:	GUANGZHOU ,CHINA
Brand Name:	LANGKING
Certification:	CE
Model Number:	Y145B

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	Negotiated
Packaging Details:	NUDE PACKING
Delivery Time:	20-25 WORKING DYA
Payment Terms:	T/T
Supply Ability:	300 /UNIT/MONTH

Contact Now

Detailed Product Description

HS CODE:	8703101900	Passenger Capacity:	14 Seats
Max.Speed:	28 Km/h	Range(loaded):	100 Km
Braking Distance:	≤4.5m	Climbing Ability(loaded):	25%
Min.Turning Radius:	6.5 M	Min.Clearance:	150mm
Recharge Time:	8~10h	Qty/20'GP (Assembled):	1 Unit
High Light:	electric shuttle bus , electric shuttle vehicles

Green /White electric golf carts 7.5KM Motor 72V 14 Seater Electric Sightseeing Bus / Tour Golf Cart for park

Performance:

Passenger capacity	14 seats
Max.Speed	28 km/h
Range(loaded)	100 km
Climbing Ability(loaded)	25%
Braking Distance	≤4.5m
Min.Turning Radius	6.5 m
Min.Clearance	150mm
Recharge time	8~10h

Dimensions

L×W×H	4965×1520×1970mm
F/R Tread	1280/1270mm
Axle Distance	2650mm
Curb Weight	1260kg
Max. loading	1190 kg

Standard Configurations

Motor	72V/7.5 KW AC motor
Controller	72V controller
Battery	battery 6V*12PCS
Body & Roof	High impact fiber glass
Windshield	See-through Laminated glass
Seats	Sponge + artificial leather
Rear view mirror	2pcs
Bumper	Front and rear Bumper
Tire	155/80 R12 Radial tire (Auto tire)
Chassis	Welded tubular steel with rust-proof powder coated paint
Steering	Power-Assisted Steering
Front Suspension	The MacPherson Strut suspension system, coil spring+shock absorber
Rear suspension	Leaf spring+shock absorber non-independent suspension
Sound system	Radio and MP3 player; Speaker
Brake system	Hydraulic double circuit four wheel brake (front disc brake rear hub brake), and mechanical parking (hand brake).
Charger	Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ
Dashboard	Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button


Color Option	White, Grey, Navy, Red, Khaki, Purple, Green etc.

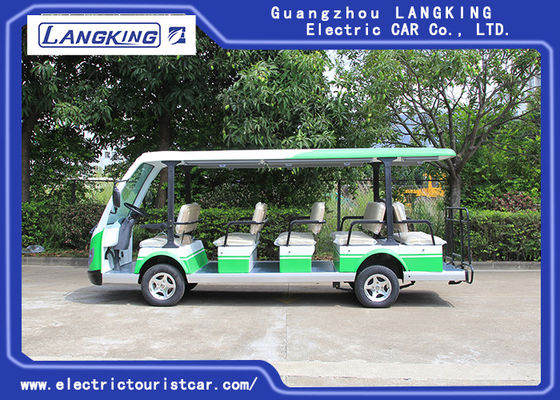

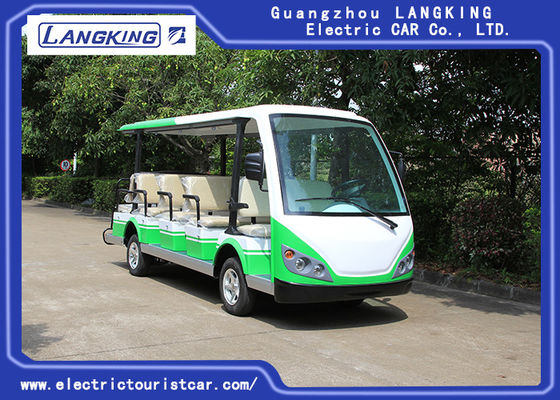

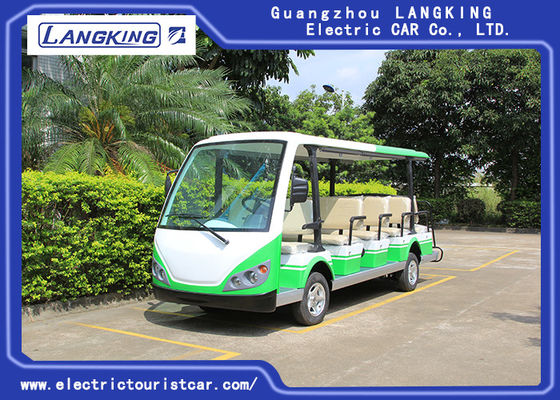

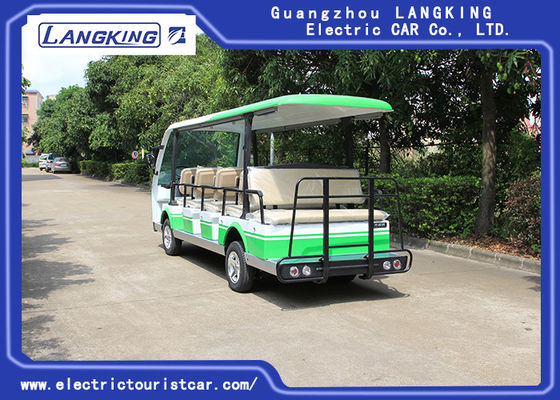

Showing photo:

Green / White Electric Shuttle Car / 7.5KM Motor 72V 14 Seater Electric Golf Carts For Park

Feather of electric cart:

Motor:5kw

Passenger Capacity:11

Battery:6V*12PCS

Range:100KM

Max.Speed:40KM/H

Climbing Ability(loaded):20%

Braking Distance:≤4.5m

Min.Turning Radius:5.7m

Charging Time:8-10h

L×W×H:4615*1520*1940mm

F/R Tread:1210/1200mm

Axle Distance:2650MM

Kerb Weight:1050KG

Gross Weight:1930KG

Min.Clearance:150MM

FAQ:

1. What's your payment term?
T/T 30% deposit and balance paid before shipment.

2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
