| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Model Number: | 48V 25A |
Electric Vehicle Charger 48V for Club Cart Shuttle Bus Classic Car
Technical parameters
| Case Material: | Aluminum | Size: | 300*150*90 MM |
| Net Weight: | 5.5 KG | Input Volt: | 230 Vac |
| Output: | Rated 48V 25A, Max 54.6 / 58.4 / 58.8V | Housing Color: | Black Or Silver |
| Battery Types: | Lithium Or Lead Acid Battery | Charging Method: | Pre Charge, CC, CV, Floating / Trickle / Shut Off |
| Applied To EV: | Electric Golf Cart, Electric Club Car and E-tourist Car |

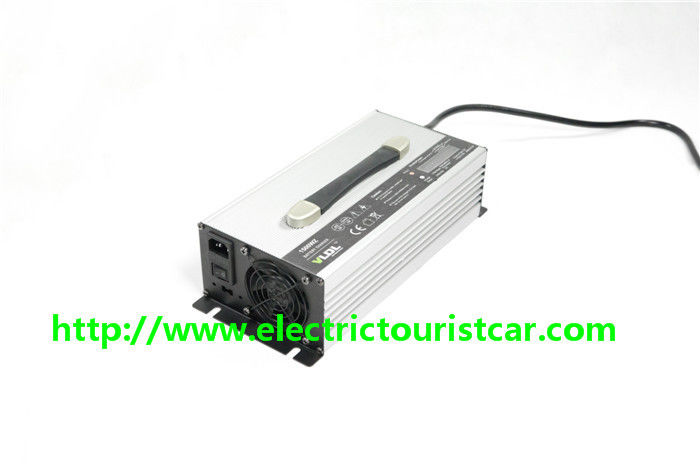

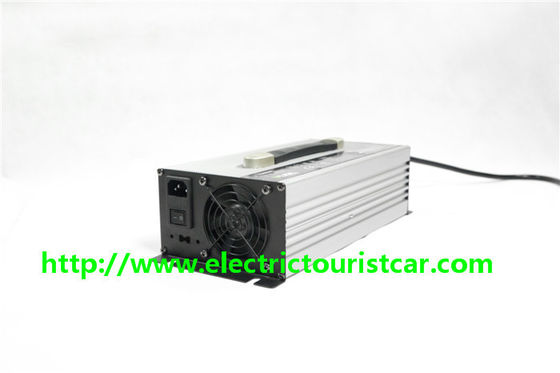

4 Steps Portable Automatic Battery Charger 48V 25A High Power With Aluminum Housing
Brief Description:
Portable battery charger 48 volts 25 amps with aluminum housing and small size. Input 230 Vac. Max charging voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 48V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.
Specifications:
AC input voltage: 110 or 240Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 25Amps
Max charging voltage: 58.8V
Dimensions(LxWxH): 300 x 150 x 90 mm
Net weight: 5.5 KG
Housing: Aluminum
Charging method:
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, trickle, auto cut-off.
Technology:
High Frequency Switching Mode Power Supply
Smart MCU controlled
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
Applications:
Charging 48V Lead-acid Battery Powered Electric Golf Cart, Electric Club Car and E-tourist Car.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
| Output series: 1,500W Size: 300×150×90 mm Net weight: 5.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 230V
Frequency: 47~63HZ
|
VL1280L | 12V LiFePO4 Battery | 14.6V | 80A | CC5~8% | |
| VL1280 | 12V Lead-acid Battery | 13.5V | 14.7V | 80A | CC20% | |
| VL1480 | 14V AGM Battery | 13.5V | 14.4V | 80A | CC20% | |
| VL1680L | 16V LiFePO4 Battery | 18.2V | 80A | CC5~8% | ||
| VL2445LM | 24V Li-MnO2 Battery | 29.4V | 45A | CC5~8% | ||
| VL2445L | 24V LiFePO4 Battery | 29.2V | 45A | CC5~8% | ||
| VL2445 | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% | |
| VL3630LM | 36V Li-MnO2 Battery | 42V | 30A | CC5~8% | ||
| VL3630L | 36V LiFePO4 Battery | 43.8V | 30A | CC5~8% | ||
| VL3630 | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% | |
| VL4825LM | 48V Li-MnO2 Battery | 54.6V | 25A | CC5~8% | ||
| VL4825L | 48V LiFePO4 Battery | 43.8V | 25A | CC5~8% | ||
| VL4825 | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% | |
| VL6020L | 60V LiFePO4 Battery | 73V | 20A | CC5~8% | ||
| VL6020 | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% | |
| VL7215L | 72V LiFePO4 Battery | 87.6V | 15A | CC5~8% | ||
| VL7215 | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% | |
| VL8413L | 84V LiFePO4 Battery | 102.2V | 13A | CC5~8% | ||
| VL8413 | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% | |
| VL9612L | 96V LiFePO4 Battery | 116.8V | 12A | CC5~8% | ||
| VL9612 | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
