| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y230A 23 SEATS CLOSED |
23 seats with door 4 Wheels Electric shuttle bus For Resorts ,Villas , City Walking Street/electric mini bus AC MOTOR
Feature Description
Our electric sightseeing car is designed for real estate, tourist attractions ,parks, amusement park ,campus ,community, garden style hotels, resorts ,villas, city walking street ,driving,and other regional development of regional port patrol.
| Performance: | ||
| Passenger capacity | 23 seats (driver included) | |
| Max.Speed | 28km/h | |
| Range(loaded) | 80km | |
| Climbing Ability(loaded) | 10% | |
| Braking Distance | 5m | |
| Min.Turning Radius | ≤8 m | |
| Min.Clearance | 150mm | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 6020×1760×2250mm | |
| F/R Tread | 1490/1470mm | |
| Axle Distance | 3400 mm | |
| Curb Weight | 1975kg | |
| Max. loading | 1955kg | |
| Standard Configurations | ||
| Motor | 96V/15KW AC motor | |
| Controller | 96V controller | |
| Batteries | Batteries 6V*16 pcs | |
| Body & Roof | High impact fiber glass | |
| Windshield | See-through Laminated glass | |
| Floor | High strength fiberglass plate | |
| Seats | Sponge + artificial leather | |
| Rear view mirror | 2pcs and 1 Inner mirror | |
| Tire | Radial tire (Auto tire), front is 185 R14LT and rear is 195R14LT. | |
| Chassis | Welded tubular steel with rust-proof powder coated paint | |
| Steering | Circulating ball steering gear+Power-Assisted Steering | |
| Front Suspension | Integral front axle, coil spring+shock absorber | |
| Rear suspension | Straight high deceleration ratio integral rear axle, steel spring cylinder type hydraulic shock absorber suspension. | |
| Lighting system | 2 headlights(big), 2 headlights(small), 2 front turn signals, 2 rear turn signals and 2 rear brake lights,2 Reversing light. | |
| Sound system | Radio and MP3 player; Speaker | |
| Brake system | Hydraulic double-loop four-wheel brake (with hydraulic brake power) and mechanical parking (hand brake). | |
| Charger | Automatic high efficiency pulse, Output:96V/25A, Input AC 220V/50HZ-60HZ | |
| Dashboard | Digital display | |
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | |

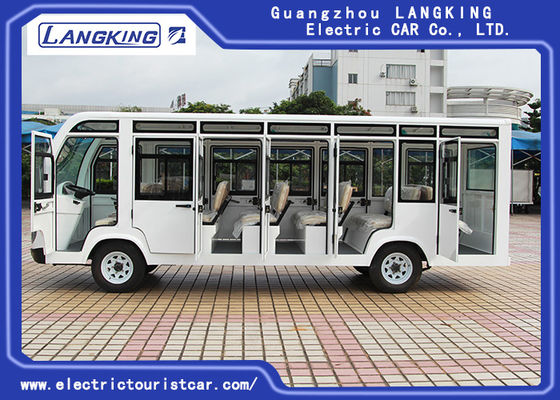

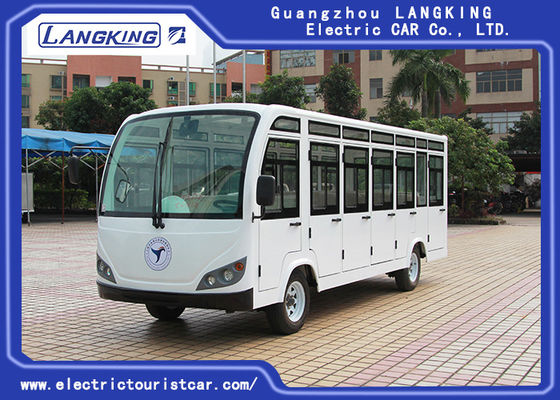

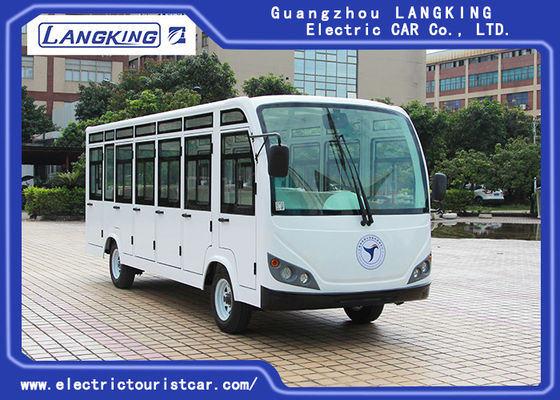

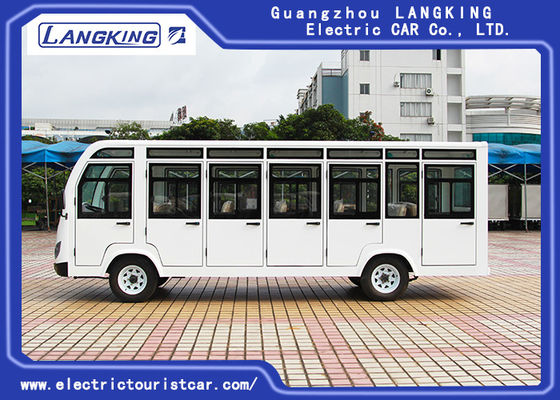

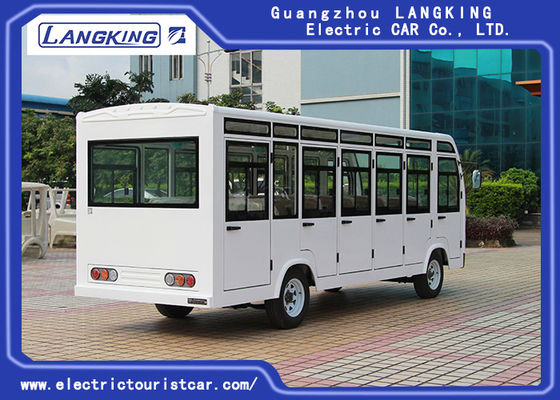

Showing photo:
FAQ:
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
