72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain

    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
    • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain
  • 72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain

    Product Details:

    Place of Origin: GUANGZHOU ,CHINA
    Brand Name: LANGKING
    Certification: CE
    Model Number: Y140A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Price: Negotiated
    Packaging Details: nude packing
    Delivery Time: 20-25 working day
    Payment Terms: T/T
    Supply Ability: 100 UNITS PER MONTH
    Contact Now
    Detailed Product Description
    HS CODE: 8703101900 Qty/20'GP (Assembled): 1 Unit
    Qty/40'GP (Assembled): 2 Units Passenger Capacity: 14 Seats
    Max.Speed: 28 Km/h Range(loaded): 90km
    Climbing Ability(loaded): 15% Braking Distance: ≤5m
    Min.Turning Radius: 6.5 M Min.Clearance: 150mm

    Blue/white 72V 14 Seats Electric Sightseeing Car For Multi Passenger 28km/h Max.Speed balck seat with curtain



     Feature Description



    This section has 8, 11, 14 seats, can load a variety of configurations, can be customized to install bus seats and other facilities, suitable for campus, villages, airports, terminal.



    Dimensions
    L×W×H 4960×1430×2000mm
    F/R Tread 1210/1200mm
    Axle Distance 2700mm
    Curb Weight 1200kg
    Max. loading 1190 kg



    Standard Configurations
    Motor 72V/5.5 KW DC motor
    Controller  72V/400A
    Battery Maintenance-free battery 6V/170Ah*12pcs
    Body & Roof High impact fiber glass
    Windshield  See-through Laminated glass
    Seats Sponge + artificial leather
    Rear view mirror 2pcs
    Bumper Front and rear Bumper
    Tire 155/80 R12 Radial tire (Auto tire)
    Chassis Welded tubular steel with rust-proof powder coated paint
    Steering Single reduction rack and pinion
    Front Suspension The MacPherson Strut suspension system, coil spring+shock absorber
    Rear suspension Leaf spring+shock absorber non-independent suspension
    Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
    Sound system  Radio and MP3 player; Speaker
    Brake system 4-wheel hydraulic drum brake system + handbrake
    Charger Automatic high efficiency pulse, Output:72V/25A, Input AC  220V/50HZ
    Dashboard Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button
    Color Option

    White, Grey, Navy, Red, Khaki, Purple, Green etc.

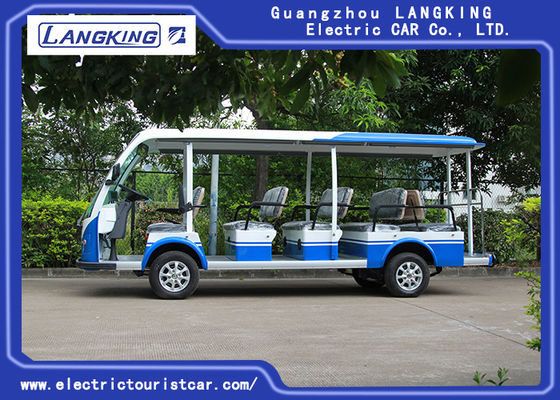

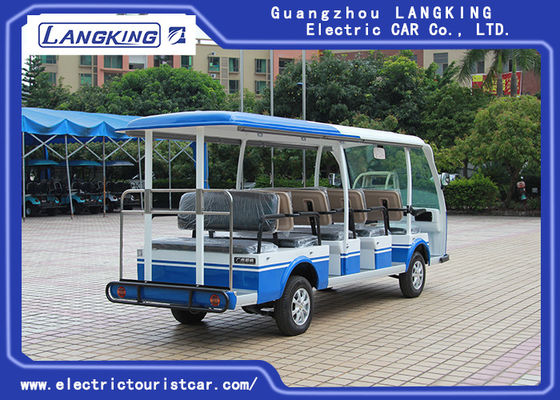

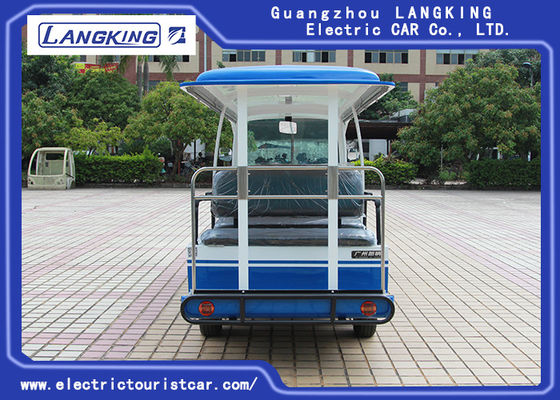

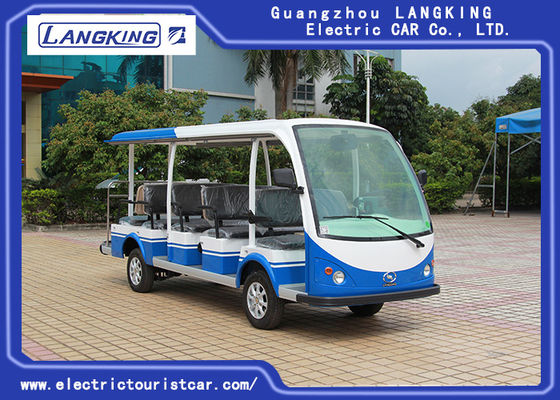

    Showing Photos:

    72V 14 Seats Electric Shuttle Vehicles For Multi Passenger 28km/H Max. Speed Balck Seat With Curtain







    Product Advantages



    1. Good aftersale-service, as most parts are manufactured by ourselves;
    2. Has CE certificate for whole carts.
    3. Brake system: Rear wheel Mechanical Drum Brake
    4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
    5. Good hill climbing ability, the system allows you to customize the car to fit your course;
    6. Smart steering system, easy to make forward and backward;
    7. Good climbing ablity and can park easily on Hills;
    8. Can be easily to be modified to Towing Tractor.



    FAQ:

    1. What's your payment term?
    T/T 30% deposit and balance paid before shipment.

    2. Can we also purchase the parts
    Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

    3. How do you provide after-sales once customer bought the cart from us?
    Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
