White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door

White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door

    • White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door
    • White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door
    • White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door
    • White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door
  • White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door

    Product Details:

    Place of Origin: GUANGZHOU ,CHINA
    Brand Name: LANGKING
    Certification: CE
    Model Number: Y116 with door

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiated
    Packaging Details: NUDE PACKING
    Delivery Time: 20-25 working day
    Payment Terms: T/T
    Supply Ability: 300/UNITS/MONTH
    Contact Now
    Detailed Product Description
    HS CODE: 8703101900 SEAT: 11 SEATS
    MODEL: Y116 With Door COLOR: You Can Choose You Like Color
    Ty/20'GP (Assembled): 1 Unit Ty/40'GP (Assembled): 2 Units
    Range(loaded): 100 Km Ax.Speed: 28 Km/h
    High Light:

    electric shuttle bus

    ,

    electric shuttle vehicles

    With door 11 Seater Electric Sightseeing Bus Equipped With Effective Shock Absorb model Y1116 72V/7.5KW motor





    Feature Description



    It adopts the advanced electric drive technology in foreign countries, and is equipped with a professional load bearing chassis. he structure is strong, so that it has the characteristics of ​large load capacity and strong power.



    Performance:
    Passenger capacity 11 seats
    Max.Speed 28 km/h
    Range(loaded) 100 km
    Climbing Ability(loaded) 20%
    Braking Distance ≤4.5m
    Min.Turning Radius 6 m
    Min.Clearance 150mm
    Recharge time 8~10h
    Dimensions
    L×W×H 4400×1460×2030mm
    F/R Tread 1280/1270mm
    Axle Distance 2650 mm
    Curb Weight 1300kg
    Max. loading 935kg
    Standard Configurations
    Motor 72V/7.5KW AC motor
    Controller 72V controller
    Body & Roof High impact fiber glass + High impact ABS Plastic
    Batteries Batteries 6V*12 pcs
    Windshield See-through Laminated glass
    Seats Sponge + artificial leather
    Rear view mirror left /right mirror +1 pc middle mirror
    Tire 155/80 R12 Radial tire (Auto tire)
    Chassis Welded tubular steel with rust-proof powder coated paint
    Steering Rack-and-pinion steering + power assistant
    Front Suspension McPherson independent suspension, spiral spring cylinder type hydraulic shock absorption.
    Rear suspension Direct-connected 24-tooth large deceleration ratio integral rear axle, leaf spring cylinder type hydraulic shock absorber suspension.
    Lighting system headlights, dipped headlights, turn signals, rear brake lights,lamplet,
    Sound system Radio and MP3 player; Speaker
    Brake system Hydraulic double circuit four-wheel brake (front disc rear drum) + handbrake
    Charger Output:72V/25A, Input AC 220V/50HZ
    Dashboard Combined meters(Voltameter, ammeter, turn signal indicator, speedometer), fiberglass dashboard
    Color Option Customized



    Showing Photos:

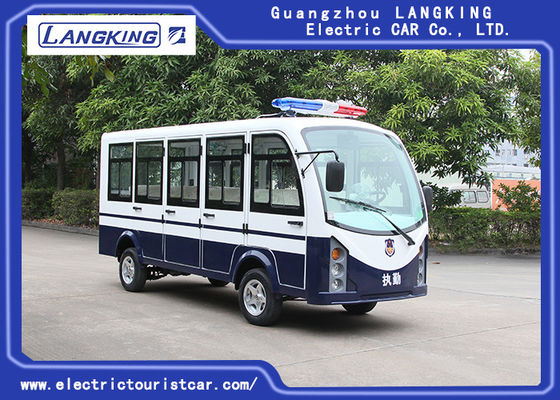

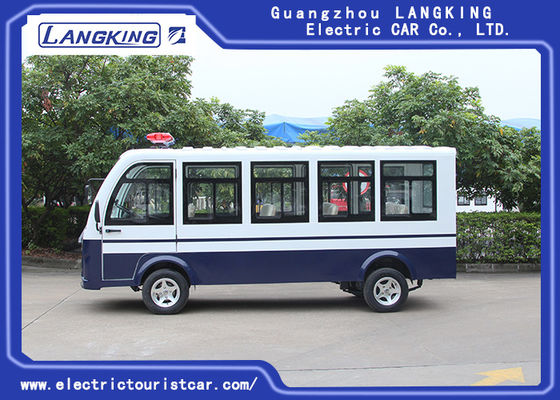

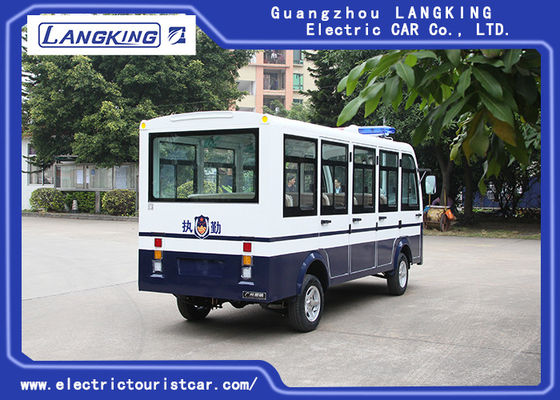

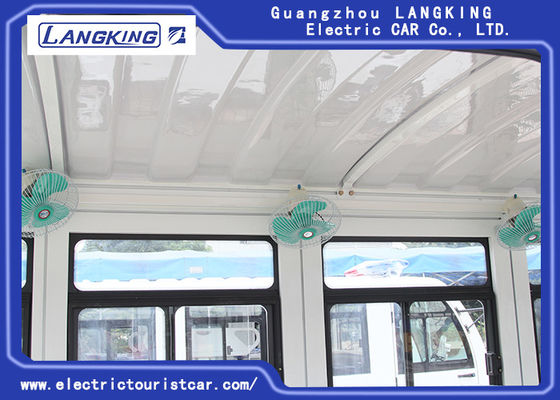

    White 11 Seater Electric Shuttle Car Equipped With Effective Shock Absorb / Door





    Product Advantages



    1. Good aftersale-service, as most parts are manufactured by ourselves;
    2. Has CE certificate for whole carts.
    3. Brake system: Rear wheel Mechanical Drum Brake
    4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
    5. Good hill climbing ability, the system allows you to customize the car to fit your course;
    6. Smart steering system, easy to make forward and backward;
    7. Good climbing ablity and can park easily on Hills;
    8. Can be easily to be modified to Towing Tractor.



    FAQ:

    1. What's your payment term?
    T/T 30% deposit and balance paid before shipment.

    2. Can we also purchase the parts
    Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

    3. How do you provide after-sales once customer bought the cart from us?
    Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
