Place of Origin: | CHINA |
Brand Name: | LANGKING |
Certification: | CE |
Model Number: | Y140A+11 SEATS TRAILER |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiate |
Packaging Details: | Nude packing |
Delivery Time: | 20-25 working day |
Payment Terms: | T/T |
Seats: | 14 +11 Seats | Color: | Red |
---|---|---|---|
Battery: | 6V*12PCS | Motor: | 72V |
Range: | 50-60km | Max. Speed: | 15-20 Km/h |
Climbing Ability(loaded): | 10% | Recharge Time: | 8-10h |
L×W×H: | 4960×1430×2000mm | F/R Tread: | 1210/1200mm |
Curb Weight: | 1200kg For 14 Seats | ||
High Light: | electric tourist vehicles,electric sightseeing bus |
Hot sales Electric shuttle bus min bus school electric car 14 seats +11 seats trailer for university
Specficiations :
Qty/20'GP (Disassembled) | 1 unit electric shuttle bus+1 unit trailer |
Qty/40'GP (Assembled) | 1 unit electric shuttle bus+1 unit trailer |
Qty/40'GP (Disassembled) | 2 units electric shuttle buses+2 units trailers |
Specifications | |
Performance: | |
Passenger capacity | 14 seats+11 seats trailer |
Max.Speed | 15-20 km/h |
Range(loaded) | 50-60km |
Climbing Ability(loaded) | 10% |
Braking Distance | ≤5m |
Min.Turning Radius | 6.5m |
Min.Clearance | 150mm |
Recharge time | 8~10h |
Dimensions | |
L×W×H | 4960×1430×2000mm |
F/R Tread | 1210/1200mm |
Axle Distance | 2700mm |
Curb Weight | 1200kg |
Max. loading | 1190kg |
|
|||||||
Motor | 72V/7.5KW AC motor | ||||||
Controller | 72V | ||||||
Battery | Battery 6V*12PCS | ||||||
Body & Roof | High impact fiber glass | ||||||
Windshield | See-through Laminated glass | ||||||
Seats | Sponge + artificial leather | ||||||
Rear view mirror | 2pcs | ||||||
Bumper | Front and rear Bumper | ||||||
Tire | 155/80 R12 Radial tire (Auto tire) | ||||||
Chassis | Welded tubular steel with rust-proof powder coated paint | ||||||
Steering | Single reduction rack and pinion | ||||||
Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||||||
Rear suspension | Leaf spring+shock absorber non-independent suspension | ||||||
Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||||||
Sound system | Radio and MP3 player; Speaker | ||||||
Brake system | 4-wheel hydraulic drum brake system + handbrake | ||||||
Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||||||
Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||||||
Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |

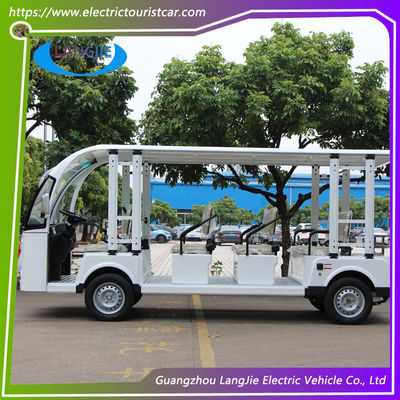

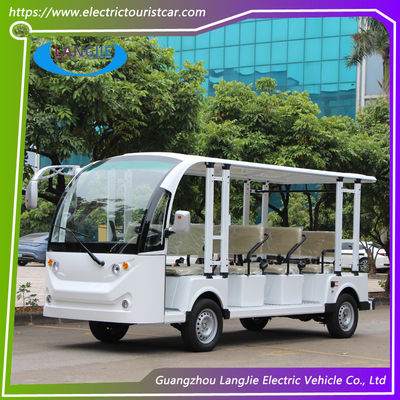

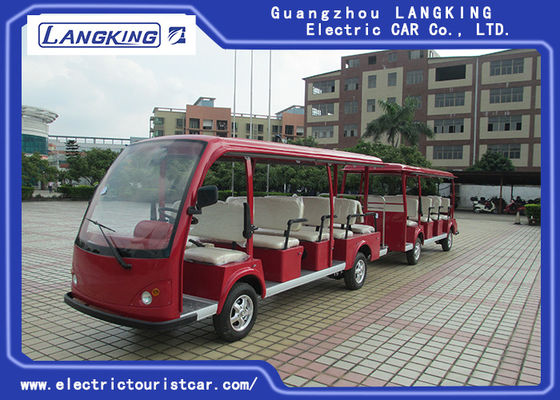

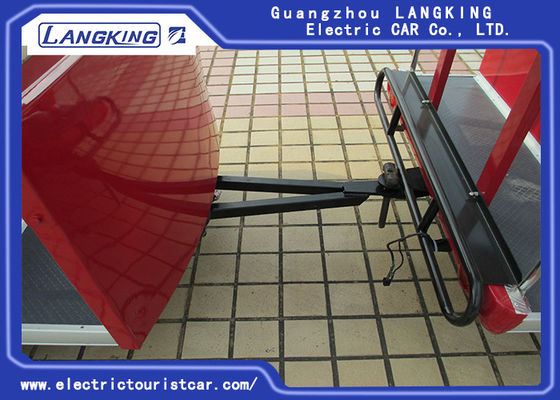

Showing Photos :
FAQ
Q1. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q2. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone.
Q3. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
