|Place of Origin:||Guangzhou|
|Model Number:||48V 20A|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Carton Box|
|Delivery Time:||5-10 Working Days|
|Electric Vehicle Charger:||48V||Color::||Black Or Silver|
|Packintg:||Carton Box||Input Volt::||110 Or 230 Vac|
|Net Weight::||4.5 KG|
club car battery charger,
electric golf cart battery charger
Electric Club Cart Shuttle Bus Classic Car Charger 48V 25A
|Case Material:||Aluminum||Size:||260*150*90 MM|
|Net Weight:||4.5 KG||Input Volt:||110 or 230 Vac|
|Output:||Rated 48V 20A, Max 54.6 / 58.4 / 58.8V||Housing Color:||Black Or Silver|
|Battery Types:||Lithium Or Lead Acid Battery||Charging Method:||Pre Charge, CC, CV, Floating / Trickle / Shut Off|
|Applied To EV:||Electric Golf Cart, Electric Club Car and E-tourist Car|

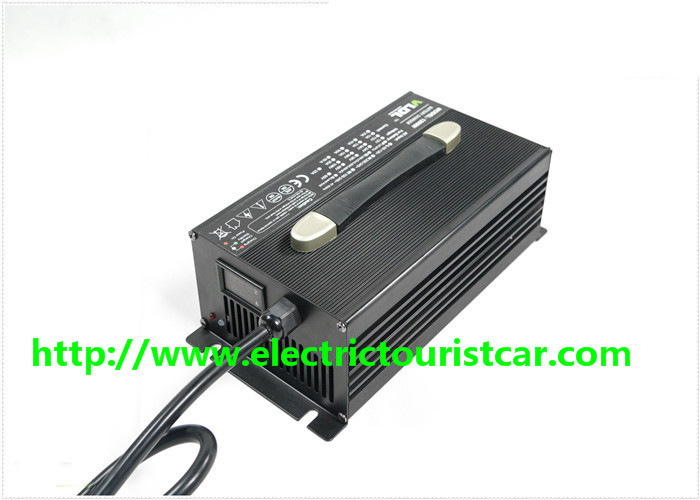

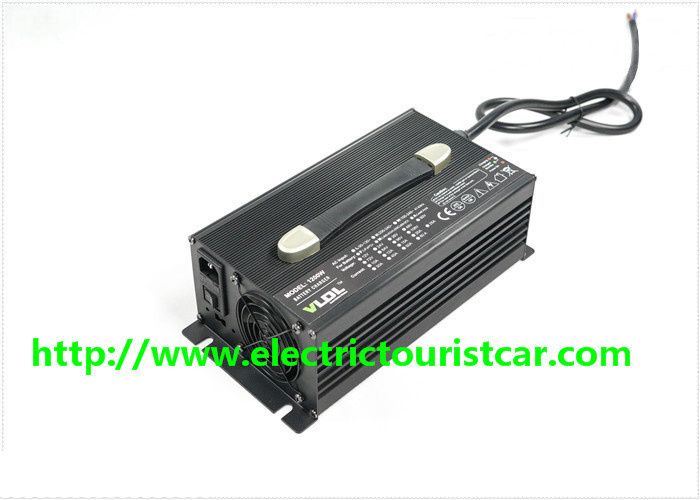

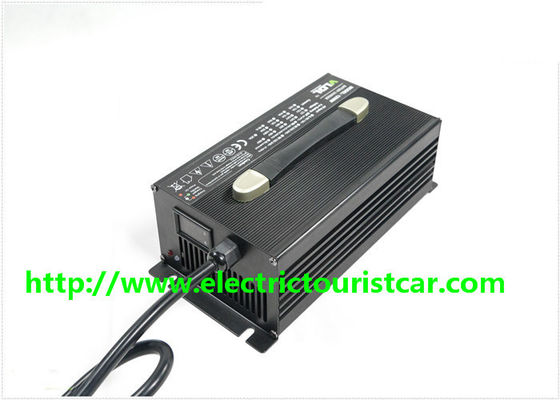

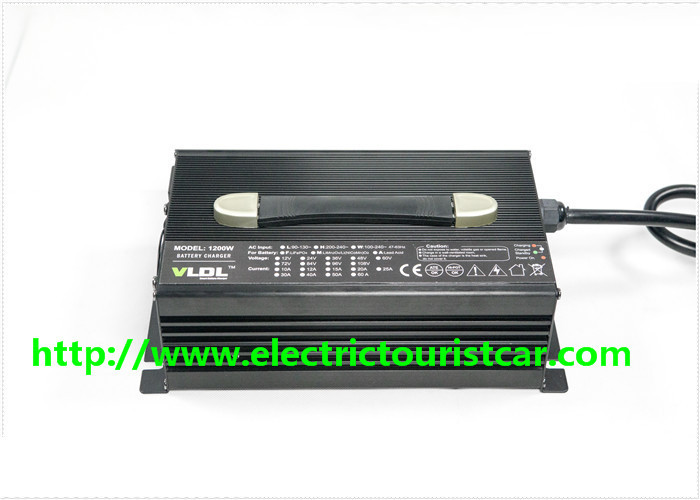

4 Steps Portable Automatic Battery Charger 48V 20A High Power With Aluminum Housing
Portable battery charger 48 volts 20 amps with aluminum housing and small size. Input 110V or 230 Vac. Max charging voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 48V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.
AC input voltage: 110 or 240Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 20Amps
Max charging voltage: 58.8V
Dimensions(LxWxH): 260 x 150 x 90 mm
Net weight: 4.5 KG
For Lead-acid Battery: pre-charge, CC, CV, floating.
For Lithium Battery: pre-charge, CC, CV, trickle, auto cut-off.
High Frequency Switching Mode Power Supply
Smart MCU controlled
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
Charging 48V Lead-acid Battery Powered Electric Golf Cart, Electric Club Car and E-tourist Car.
Input Plug & Output Connector:
We supply different plugs and connector by customer's applications.
|Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG|
|Input||Model||Apply to battery types||Floating V||CV (V)||CC (A)||Switching|
110 / 230V
|VL1260L||12V LiFePO4 Battery||14.6V||60A||CC5~8%|
|VL1260||12V Lead-acid Battery||13.5V||14.7V||60A||CC20%|
|VL1460||14V AGM Battery||13.5V||14.4V||60A||CC20%|
|VL1660L||16V LiFePO4 Battery||18.2V||60A||CC5~8%|
|VL2435LM||24V Li-MnO2 Battery||29.4V||35A||CC5~8%|
|VL2435L||24V LiFePO4 Battery||29.2V||35A||CC5~8%|
|VL2435||24V Lead-acid Battery||27.6V||29.4V||35A||CC20%|
|VL3620LM||36V Li-MnO2 Battery||42V||20A||CC5~8%|
|VL3620L||36V LiFePO4 Battery||43.8V||20A||CC5~8%|
|VL3620||36V Lead-acid Battery||41.4V||44.1V||20A||CC20%|
|VL4818LM||48V Li-MnO2 Battery||54.6V||18A||CC5~8%|
|VL4818L||48V LiFePO4 Battery||43.8V||18A||CC5~8%|
|VL4818||48V Lead-acid Battery||55.2V||58.8V||18A||CC20%|
|VL6015L||60V LiFePO4 Battery||73V||15A||CC5~8%|
|VL6015||60V Lead-acid Battery||67.5V||73.5V||15A||CC20%|
|VL7213L||72V LiFePO4 Battery||87.6V||13A||CC5~8%|
|VL7213||72V Lead-acid Battery||81V||88.2V||13A||CC20%|
|VL8411L||84V LiFePO4 Battery||102.2V||11A||CC5~8%|
|VL8411||84V Lead-acid Battery||94.5V||102.9V||11A||CC20%|
|VL9610L||96V LiFePO4 Battery||116.8V||10A||CC5~8%|
|VL9610||96V Lead-acid Battery||108V||117.6V||10A||CC20%|
|Note: customized input / output / plug type / connectors are available.|
Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.
Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.
Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
