Electric Tourist Car
Created with Pixso.

Resort Car 5 Seater Electric Freight Car 48V/5 KW ACmotor With Door For Park

Resort Car 5 Seater Electric Freight Car 48V/5 KW ACmotor With Door For Park

Brand Name: LANGJIE
Model Number: LQF1024F
MOQ: 1 units
Price: Negotiate
Payment Terms: T/T
Supply Ability: 300 Units/ month
Detail Information
Place of Origin:
GUANGZHOU ,CHINA
Certification:
CE
Part Name:
Electric Luggage Cart
Max.Speed:
30 Km/h
Range(loaded):
70km
Climbing Ability(loaded):
20%
Color:
Customized,white,green, Yellow, Blue.
Power Motor:
5 KW
Power Source:
Electric
Controller:
48V Controller
Packaging Details:
Nude Packing
Supply Ability:
300 Units/ month
Highlight:

low speed electric vehicles

Product Description
Resort Car 5 Seater Electric Freight Car 48V/5 KW ACmotor With Door For Park


Model LQF1024F Electric Freight Car 5 Seats Specifications :


HS CODE8709119000
Qty/20'GP (Assembled)1 unit
Qty/40' GP(Assembled)2 units

Specifications
Performance:
Passenger capacity5 seats
Range(loaded)70km
Max.Speed≤30m/h
Climbing Ability(loaded)≤20%
Braking Distance≤5m
Min.Turning Radius≤4.5m
Recharge time8~10h
Dimensions
L×W×H4190*1560*2010mm
L×W×H cargo size1500*1500*300mm
Axle Distance2020mm
Vehicle Weight1080kg
Max. loading900kg
Standard Configurations
Motor48V/5 KW AC motor
Controller48V
BatteryMaintenance-free battery 6V/170Ah*8pcs
Body & RoofThe high-strength composite material body (PP composite material injection-molded front hood) has excellent impact resistance./Enhanced composite material and aluminum alloy frame; lightweight, resistant to aging, and not prone to fading.
WindshieldSee-through Laminated glass
SeatsPU car seat, ergonomic, adjustable structure for driver's seat.
Rear view mirror2pcs
TireVacuum radial tire 165/70R13, steel rim
ChassisHigh-strength steel frame longitudinal beam chassis with electrophoresis and powder coating rust prevention treatment
SteeringDual-pinion rack and pinion steering with electric speed-sensitive power assistance system
Front SuspensionFront MacPherson independent suspension, with coil springs and telescopic hydraulic shock absorbers.
Rear suspensionIntegral rear axle with leaf springs and telescopic hydraulic shock absorbers
Lighting systemLED headlights, fog lights, turn signals, taillights, horn, reversing alarm
Brake systemFront ventilated disc rear drum hydraulic dual circuit braking system with handbrake parking, equipped with vacuum power-assisted brakes
ChargerIntelligent high-frequency vehicle charger. Input voltage 220V, output 48V/25A.
DashboardInjection-molded dashboard with a combination switch, electric lock switch, emergency power-off switch, and multifunctional LCD display (showing indicators for voltage, battery level, speed, mileage, etc., and an entertainment playback system). It is equipped with USB/Type-C ports, storage compartments, and a cup holder.

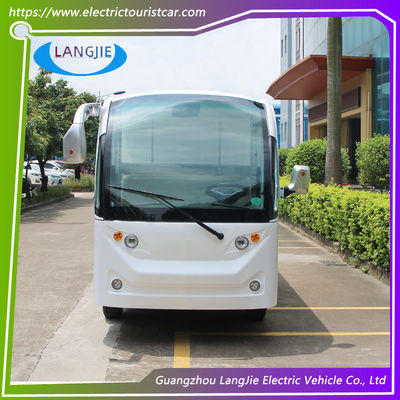

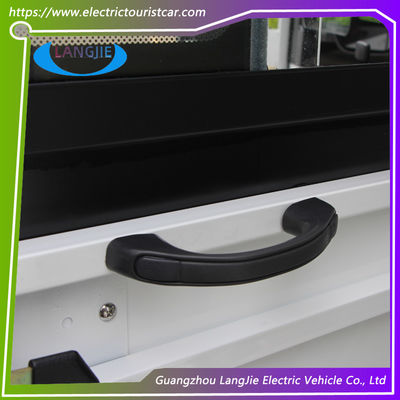

Product showing:
Resort Car 5 Seater Electric Freight Car 48V/5 KW ACmotor With Door For Park 0


FAQ
1, What's the production time?
Normally for 30 working days
2, What's your payment term?
T/T 30% deposit and balance paid before shipment
3, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
4, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
5.What is your MOQ?
You can order MOQ 1 unit .
6,Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
7,How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
