3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology

3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology

    • 3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology
    • 3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology
    • 3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology
    • 3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology
    • 3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology
  • 3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: Langking
    Certification: CE
    Model Number: Y083A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiate
    Packaging Details: Non packing Or Steel Packing
    Payment Terms: T/T
    Supply Ability: 100Units/ month
    Contact Now
    Detailed Product Description
    HS CODE: 8703101900 Qty/20'GP (Assembled): 1 Unit
    Qty/40'GP (Aassembled): 3 Units Passenger Capacity: 8 Seats
    Max.Speed: 28km/h Range(loaded): 80km
    Climbing Ability(loaded): 18% Recharge Time: 8~10h
    High Light:

    electric shuttle bus

    ,

    electric shuttle vehicles

    3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology



    Model LQY083A  Electric Shuttle Bus 8 Seats Specifications :



    HS CODE 8703101900
    Qty/20'GP (Assembled) 1 unit
    Qty/40'GP (Aassembled) 3 units


    Performance:



    Passenger capacity 8 seats
    Max.Speed 28km/h
    Range(loaded) 80km
    Climbing Ability(loaded) 18%
    Braking Distance ≤4m
    Min.Turning Radius 4m
    Min.Clearance 150mm
    Recharge time 8~10h


    Dimensions:



    L×W×H 3860×1430×1940mm
    F/R Tread 1210/1200mm
    Axle Distance 1935mm
    Curb Weight 830kg
    Max. loading 640kg



    Standard Configurations:



    Motor 48V/3KW DC motor
    Controller 48V
    Battery Maintenance-free battery 6V/170Ah*8pcs
    Body & Roof High impact fiber glass
    Windshield See-through Laminated glass
    Seats Sponge + artificial leather
    Rear view mirror 2pcs
    Bumper Front and rear Bumper
    Tire 155/80 R12 Radial tire (Auto tire)
    Chassis Welded tubular steel with rust-proof powder coated paint
    Steering Single reduction rack and pinion
    Front Suspension The MacPherson Strut suspension system, coil spring+shock absorber
    Rear suspension Leaf spring+shock absorber non-independent suspension
    Lighting system 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights
    Sound system Radio and MP3 player; Speaker
    Brake system 4-wheel hydraulic drum brake system + handbrake
    Charger Automatic high efficiency pulse, Output:48V/25A, Input AC 110/220V, 50-60HZ
    Dashboard Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button
    Color Option White, Grey, Navy, Red, Khaki, Purple, Green etc.

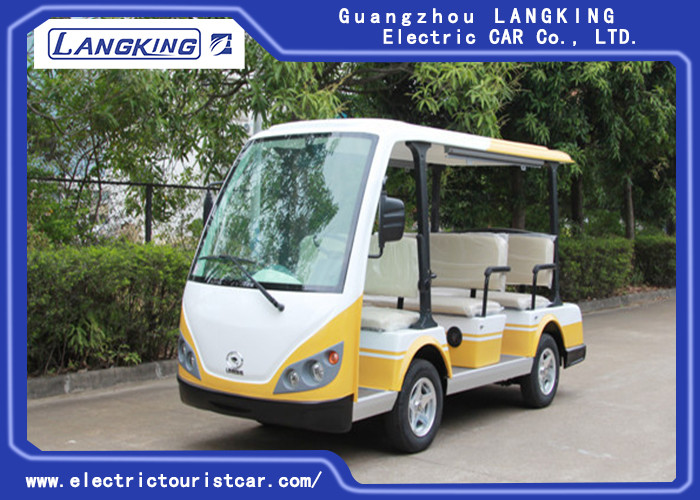

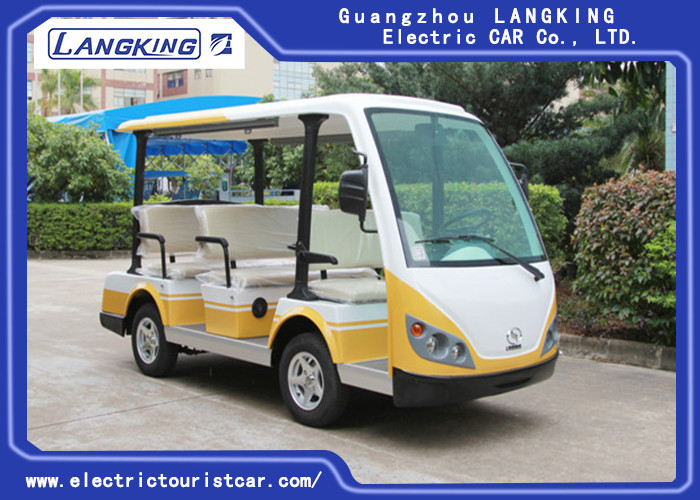

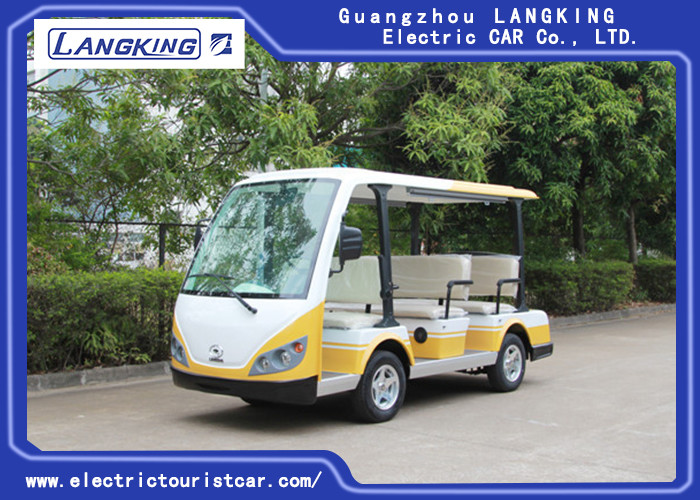

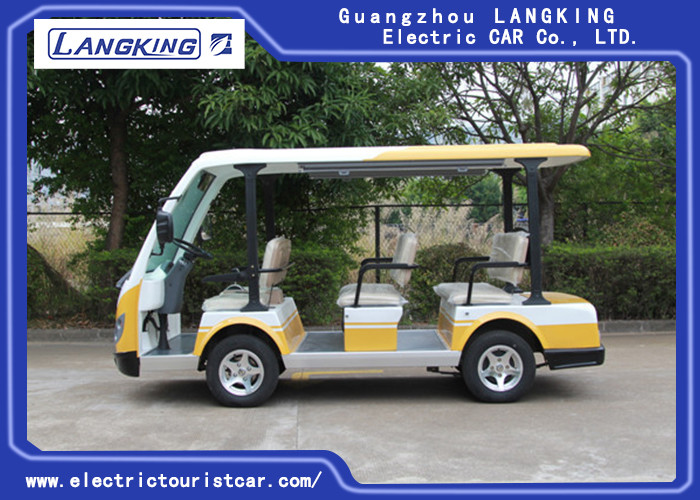

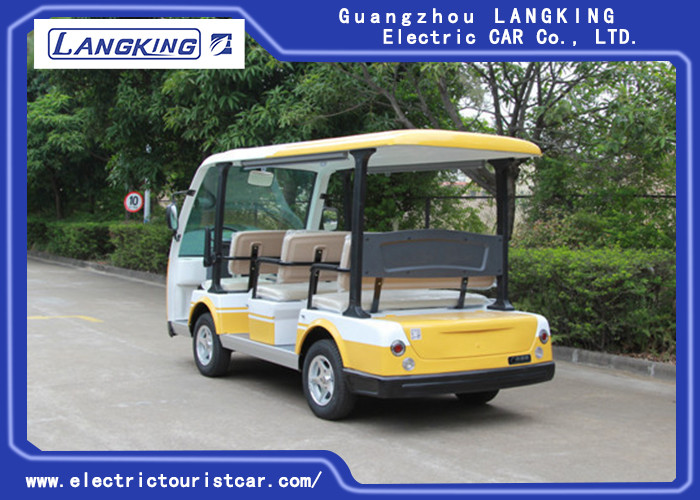

    Product Showing:



    3 KW 48V Motor Electric Passenger Bus Battery Operated Brake Drum Technology



    Application:



    * Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.



    FAQ:



    1. What's your warranty time?
    All Langking vehicles sold by us are quality guaranteed.
    We provide 1 year warranty for main parts to our electric vehicles when you get them.

    2. What's the production time?
    Normally for 30 working days.



    3. What's your payment term?
    T/T 30% deposit and the balance payment paid before shipment.



    4.Can we also purchase the parts?

    Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.


    5. How do you provide after-sales once customer bought the vehicle from us?
    Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.



    6.What is your MOQ?
    You can order MOQ 1 unit .
