Two Seats Electric Utility Golf Cart 48V AC Hotel Buggy Car With Roof Cargo Box

Two Seats Electric Utility Golf Cart 48V AC Hotel Buggy Car With Roof Cargo Box

Brand Name: LANGJIE
Model Number: AHS2-1 WITH CARGO BOX
MOQ: 1 UNIT
Price: Negotiated
Payment Terms: T/T
Supply Ability: 300 Units Per Month
Detail Information
Place of Origin:
GUANGZHOU ,CHINA
Certification:
CE
Part Name:
Electric Utility Car
Powertrain:
48V/4kW
Range(loaded):
80KM
Climbing Ability(loaded):
10%
Max.Speed:
28km/h
Braking Distance:
≤5m
Recharge Time:
8~10h
Used Place:
Hotel,Factory,Resort
Packaging Details:
NUDE PACKING
Supply Ability:
300 Units Per Month
Highlight:

electric utility carts

Product Description

Two Seats Electric Utility Golf Cart 48V AC Hotel Buggy Car With Roof Cargo Box



4kW AC Motor Driven Free Maintenance Battery Powered Mini Dimension Carry Van With a Enclosed Cargo Box





Feature Description



driven by a 5kW AC motor superior loading performs,enclosed cargo platform design,multiple modification choice.





Dimensions:



HS CODE 8703101900
Qty/20'GP (Assembled) 1 UNIT
Qty/40'HQ (Assembled) 3 UNITS
Passenger capacity 2 seats
Max.Speed 28km/h
Range(loaded) 80km(level road)
Climbing Ability 10%
Braking Distance <5.0m
Min.Turning Radius 5m
Min.Clearance 135 mm
Recharge time 8~10h
L×W×H 3520*1220*2020mm
L×W×H {CARGO SIZE} 1750*1100*1100mm
F/R Tread 859mm//1000mm
Axle Distance 2386mm
Curb Weight 485kg
Max. loading 500kg
Motor 48V/4KW AC motor
Controller 48V
Battery Maintenance-free battery 8V*6PCS
Body & Roof The front cover, seat bucket, body and rear bumper cover parts are injection molded with engineering PP special materials for aging resistance and ultraviolet protection+Grsted black square pipe frame + PP material injection molding roof
Windshield Foldable windshield
Seats PU leather + special sponge modeling sofa
Rear view mirror Left and right mirrors
Bumper Front Bumper
Tire 10 inch aluminum alloy wheel +10 inch golf cart special tire
Chassis Q235 high-strength sheet metal profile welding, electrophoresis + anti-rust spraying
Front Suspension McFerson independent double A swing arm front suspension system + helical spring + damping hydraulic shock absorber.
Rear suspension Integrated rear axle, speed ratio 15.89:1 drag rear suspension + helical spring shock absorber + damping hydraulic shock absorber + rear stabilizer bar
Lighting system LED front combination (near light, high beam, turn signal, daily light)
LED rear taillights (brake lights, running lights, turn signal lights); snail horn, reversing buzzer.
Brake system 180mm diameter hydraulic drum brake rear axle: four-wheel hydraulic brake, front disc and rear drum + foot pedal parking
Steering system Double gear rack steering system, automatic clearance compensation function
Charger Output:48V, Input AC 220V/50HZ~60HZ
Dashboard Injection molding dashboard, ignition switch, direction selection switch, high beam switch, horn and headlight combination switch, water cup seat; USB+Type-c charging/dual USB charging.
Display IP66 waterproof grade 2.5 inch LCD multimedia combination instrument, with vehicle fault identification and detection function
Roof beige
Optional color White, Metallic silver, Metallic black, Blue,Bright cherry-red, Green, Red.

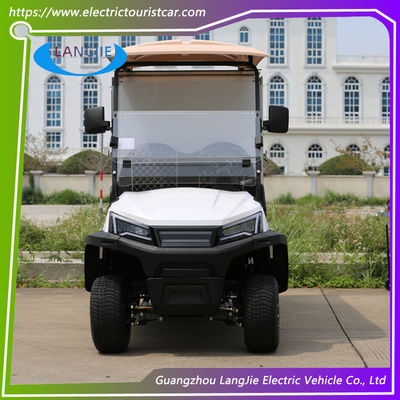

Showing Photos:

Two Seats Electric Utility Golf Cart 48V AC Hotel Buggy Car With Roof Cargo Box 0







Product Advantages



1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts.
3. Good hill climbing ability, the system allows you to customize the car to fit your course;
4. Smart steering system, easy to make forward and backward;
5. Good climbing ablity and can park easily on Hills;
6. Can be easily to be modified to Towing Tractor.



FAQ:

1. What's your payment term?
T/T 30% deposit and balance paid before shipment.

2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it .
