| Place of Origin: | CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y086 |
CE Certification 8 seater Electric Shuttle Bus City Bus New Model Y086 for Hotel/ Park/ University
Model Y086 is a Small Electric Shuttle Bus .It's an ideal shuttle for using in hotel, resort, residential community, airport, port, stations, museum, theme park, historic town, zoo, factory, campus, garden and any places where need a quite and clean vehicles, for moving cargos.
Specifications:
| HS CODE | 8703101900 | |
| Qty/20'GP (Assembled) | 1 units | |
| Qty/40'GP (Assembled) | 3 units | |
| Qty/20'GP (Disassembled) | 2 units | |
| Qty/40'GP (Disassembled) | 6 units | |
|
Performance:
|
||
| Passenger capacity | 8seats | |
| Max.Speed | 28km/h | |
| Range(loaded) | 80km | |
| Climbing Ability(loaded) | 18% | |
| Braking Distance | ≤4m | |
| Min.Turning Radius | 4.5m | |
| Min.Clearance | 150mm | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 3900×1480×1988mm | |
| F/R Tread | 1280/1270mm | |
| Axle Distance | 2000mm | |
| Curb Weight | 900kg | |
| Max. loading | 680kg | |
|
Standard Configurations
|
||
| Motor | 48V/4KW DC motor | |
| Controller | 48V controller | |
| Body | High impact fiber glass | |
| Roof | High strength ABS plastic molding | |
| Batteries | Free-maintenance Batteries 6V/170Ah*8pcs | |
| Windshield | See-through Laminated glass | |
| Seats | Sponge + artificial leather | |
| Rear view mirror | 2pcs | |
| Tire | 155/80 R12 Radial tire (Auto tire) | |
| Chassis | Welded tubular steel with rust-proof powder coated paint | |
| Steering | Power-Assisted Steering | |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | |
| Rear suspension | Leaf spring+shock absorber non-independent suspension | |
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | |
| Sound system | Radio and MP3 player; Speaker | |
| Brake system | 4-wheel hydraulic brake system(front disc brake, rear drum brake) + handbrake | |
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ | |
| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | |
| Color Option | Customized | |

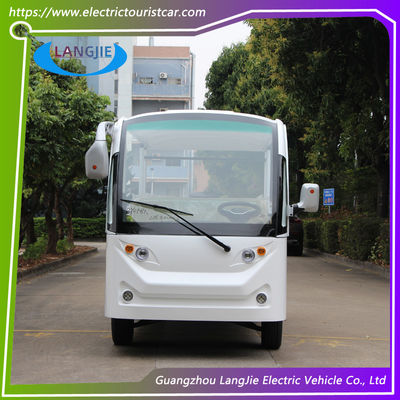

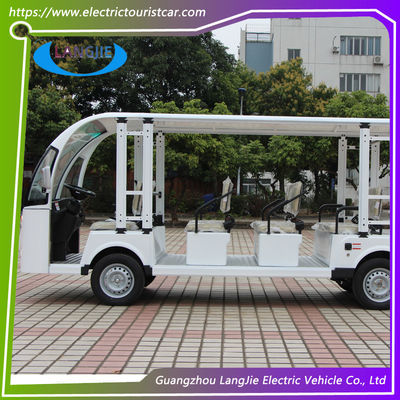

Showing Photo:
Feather of electric cart:
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
*2) Range will vary depending on temperature, grade, payload and driving style.
FAQ
1, what's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2, What's the production time?
Normally for 30 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
