| Place of Origin: | CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | F092M With hydraulic tail plate /door |
DC Controller Electric Utility Carts ,Dry Battery Powered Utility Vehicles 2 Seat With hydraulic tail plate for hotel
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 3 units |
| Specifications | |
| Performance: | |
| Passenger capacity | 2 seats |
| Max.Speed | 28 km/h |
| Range(loaded) | 70 km |
| Climbing Ability(loaded) | 12% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.5m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 3900×1470×2050mm |
| F/R Tread | 1280/1270mm |
| Axle Distance | 1960mm |
| Curb Weight | 1050kg |
| Max. loading | 900kg |
| Standard Configurations | |||
| Motor | 48V/4KW DC motor | ||
| Controller | 48V | ||
| Battery | battery 6V*8pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | Integral axle,Leaf spring+shock absorber non-independent suspension | ||
| Rear suspension | Direct integral rear axle,Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | Headlight, steering lamp, rear combination lamp, reversing buzzer, electric horn | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50-60HZ | ||
| Dashboard | Glass steel molding instrument, instrument (with current meter, voltage meter, power meter, speedometer, steering indicating lamp etc.). | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

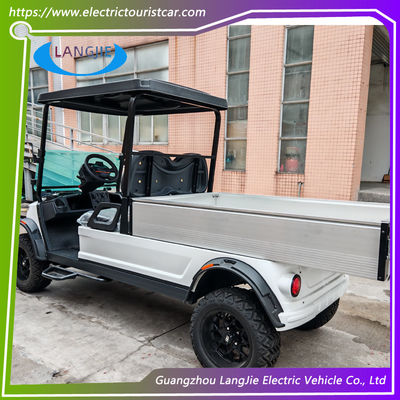

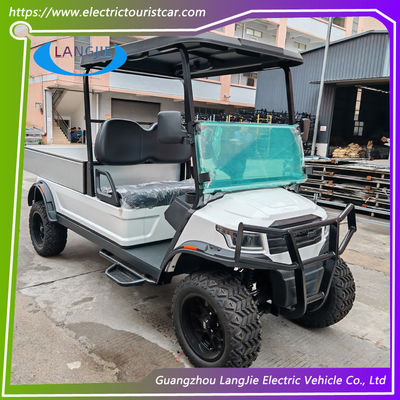

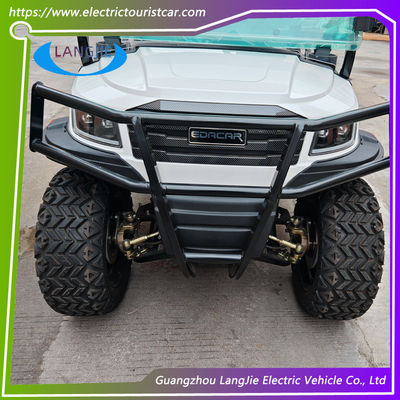

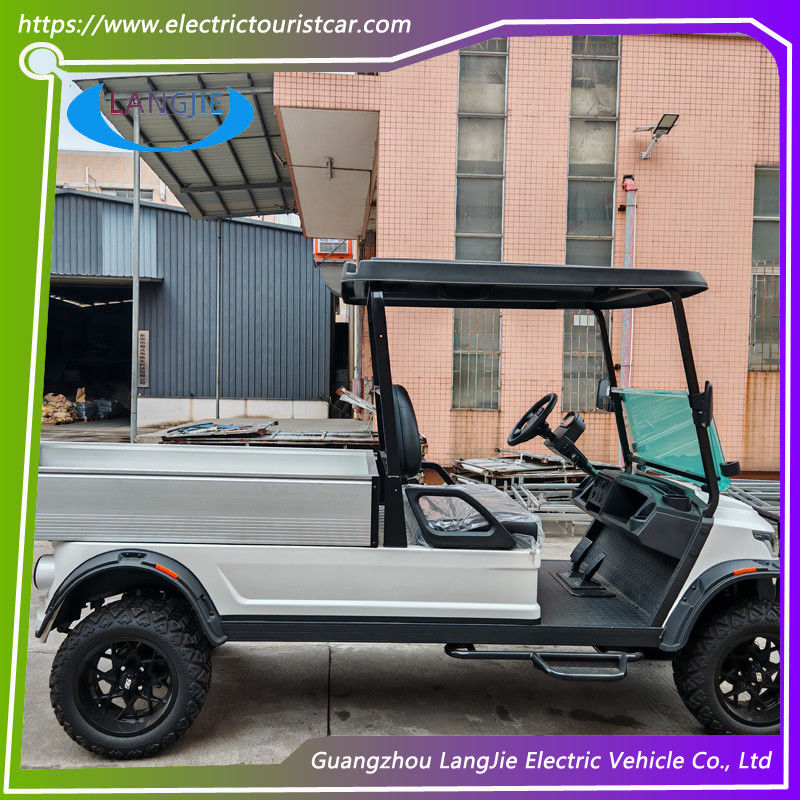

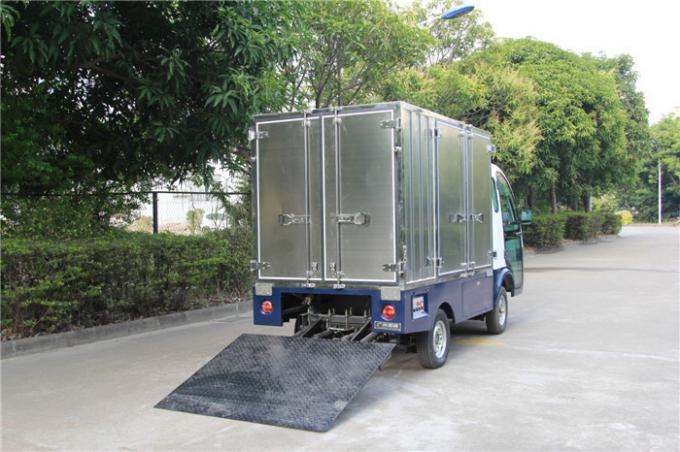

PHOTO:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4.Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order MOQ 1 unit .
7.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8.How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
