| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | X045 |

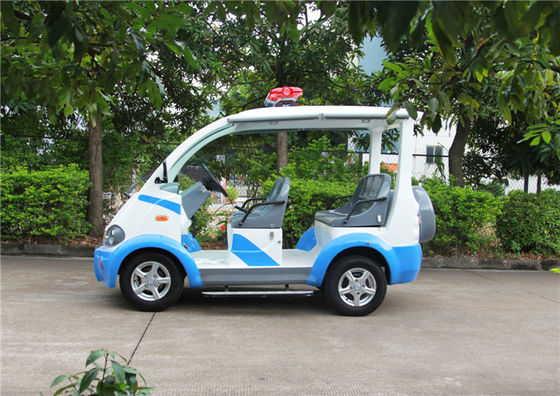

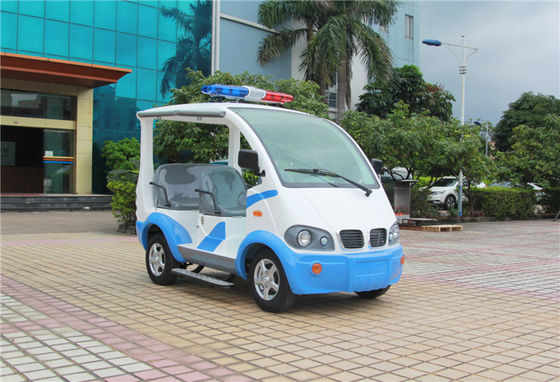

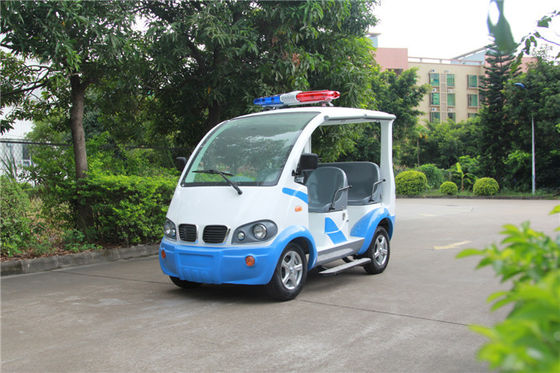

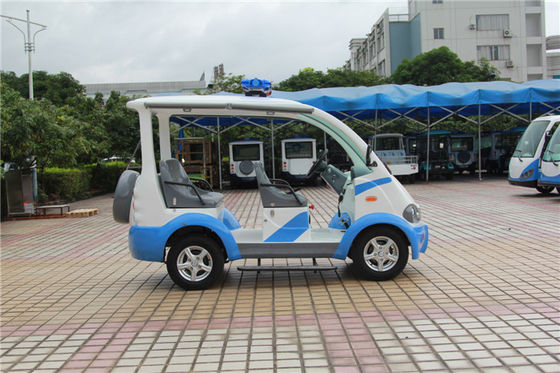

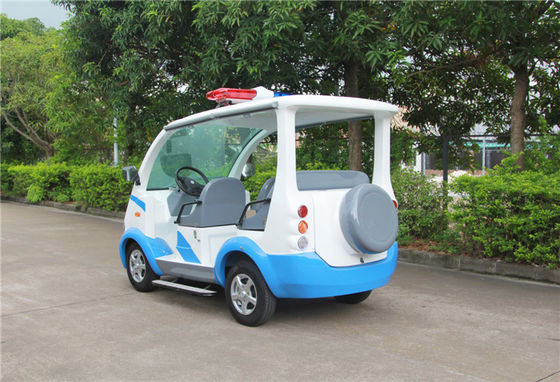

CE certificate Electric golf car /patrol car 4 seats with toplight fiber glass seats for resort blue/white color
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 3 units |
| Specifications | |
| Performance: | |
| Passenger capacity | 4 seats |
| Max.Speed | 28km/h |
| Range(loaded) | 85km |
| Climbing Ability(loaded) | 25% |
| Braking Distance | ≤4m |
| Min.Turning Radius | 4.5 m |
| Min.Clearance | 150 mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 3150×1520×2060mm |
| F/R Tread | 1150/1200mm |
| Axle Distance | 1780mm |
| Curb Weight | 635kg |
| Max. loading | 340 kg |
| Standard Configurations | |||
| Motor | 48V/3KW DC motor | ||
| Controller | 48V | ||
| Battery | Maintenance-free battery 6V/170Ah*8pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | High impact fiber glass | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Recirculating ball steering gear | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights,Police light bar | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ | ||
| Dashboard | Forward/reverse switch, turn signal indicator, ignition key, ammeter, speedometer, emergency switch, headlight switch, windscreen wiper switch, horn button, radio and tape player,electric power consumption indicator | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||
Supply Ability:
5000 Piece/Pieces per Year
Packaging Details
Container order, remove the canopy and package in the protective material.
Sample order, packaged in the individual steel shelf and the protective material.
Delivery Port:
Guangzhou or Shenzhen
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
a)We can change cars’ appearances and/or colors according to your demands.
b)We can replace the driving motor with gasoline engine or diesel engine, or add solar panels according to your demands.
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4.Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
