| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | H051 WITH CRAGO |

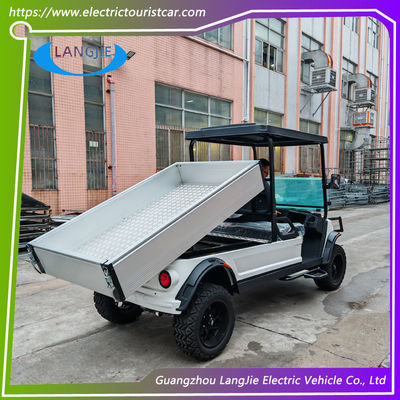

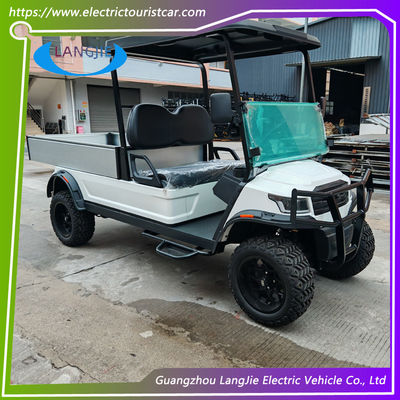

48V/4kW DC Motor Driven Battery Powered Carry Van With Enclosed Cargo Box/ with door/top light 4 seaters model H050
Feature Description
driven by a 4kW DC motor superior loading performs,enclosed cargo platform design
Dimensions
| L×W×H | 3750×1520×2060mm |
| F/R Tread | 1150/1200mm |
| Axle Distance | 1200mm |
| Curb Weight | 920kg |
| Max. loading | 1310kg |
| Weight Platform(L×W×H):1200×1520×1050mm |
Details
| Standard Configurations | ||
| Motor | 48V/4KW DC motor | |
| Controller | 48V controller | |
| Battery | Free-maintenance Battery 6V*8 PCS | |
| Body & Roof | High impact fiber glass | |
| Windshield | See-through Laminated glass | |
| Seats | High impact fiber glass | |
| Rear view mirror | 2pcs | |
| Tire | 155R12C Radial tire (Auto tire) | |
| Chassis | Welded tubular steel with rust-proof powder coated paint | |
| Steering | Recirculating ball steering gear | |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | |
| Rear suspension | Leaf spring+shock absorber non-independent suspension | |
| Lighting system | 2 headlights(big), 2 headlights(small), 2 front turn signals, 2 rear signals | |
| Sound system | Radio and MP3 player; Speaker | |
| Brake system | 4-wheel hydraulic drum brake system + handbrake | |
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ | |
| Dashboard | Forward/reverse switch, turn signal indicator, ignition key, ammeter, speedometer, emergency switch, headlight switch, windscreen wiper switch, horn button, radio and tape player,electric power consumption indicator | |
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | |
Product Advantages
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts.
3. Brake system: Rear wheel Mechanical Drum Brake
4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
5. Good hill climbing ability, the system allows you to customize the car to fit your course;
6. Smart steering system, easy to make forward and backward;
7. Good climbing ablity and can park easily on Hills;
8. Can be easily to be modified to Utility carts.
FAQ
1, what's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2, What's the production time?
Normally for 30 working days
