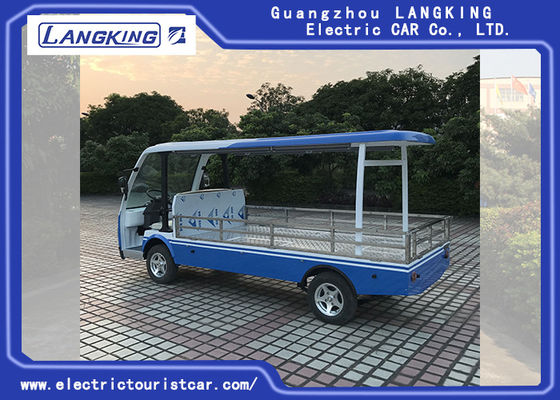

1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory

1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory

    • 1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory
    • 1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory
    • 1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory
    • 1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory
    • 1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory
  • 1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory

    Product Details:

    Place of Origin: GUANGZHOU ,CHINA
    Brand Name: LANGKING
    Certification: CE
    Model Number: F120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: NEGOCIATED
    Packaging Details: Nude packing
    Delivery Time: 20-25 days
    Payment Terms: T/T
    Supply Ability: 300/UNITS/MONTH
    Contact Now
    Detailed Product Description
    HS CODE: 8709119000 Passenger Capacity: 2 Seats With Cargo
    Max.Speed: 28 Km/h Range(loaded): 100km
    Climbing Ability(loaded): 12% Braking Distance: ≤4m
    Min.Turning Radius: 4m Min.Clearance: 150mm
    Recharge Time: 8-10h Motor: 72V/5KW DC Motor
    Qty/20'GP (Assembled): 1 Unit Qty/40'GP (Assembled): 2 Units
    High Light:

    electric tourist vehicles

    ,

    electric sightseeing bus

    1.2 Ton Large Space Cargo Vehicle 72V DC Motor Utility Electric Pick Up Truck model F120 for hotel /factory



    Description



    Electric freight car  use batteries to generate power , environmental pollution, efficient use of resources . It has a personalized control system, steering flexible , comfortable , lightweight and smooth driving easy. Power can be recycled, long life. Currently tourist vehicles are widely used in hotels, resorts, car sales showings , factories, airports , railway stations, bus stations , docks, stadiums, parks and other places



    Main Technical Parameters



    Dimensions
    L×W×H 4600×1520×1970mm
    F/R Tread 1280/1270mm
    Axle Distance 2650mm
    Curb Weight 1100kg
    Max. loading 1200kg
    Weight Platform(L×W×H) 3130×1463×300 mm



    Standard Configurations
    Motor 72V/5KW DC motor
    Controller 72V
    Battery Maintenance-free battery 6V/170Ah*8pcs
    Body & Roof High impact fiber glass
    Windshield See-through Laminated glass
    Seats Sponge + artificial leather
    Rear view mirror 2pcs
    Tire 155/80 R12 Radial tire (Auto tire)
    Chassis Welded tubular steel with rust-proof powder coated paint
    Steering Power-Assisted Steering
    Front Suspension The MacPherson Strut suspension system, coil spring+shock absorber
    Rear suspension Leaf spring+shock absorber non-independent suspension
    Lighting system 2 headlights(big), 2 headlights(small), 2 front turn signals, 2 rear turn signals and 2 rear brake lights

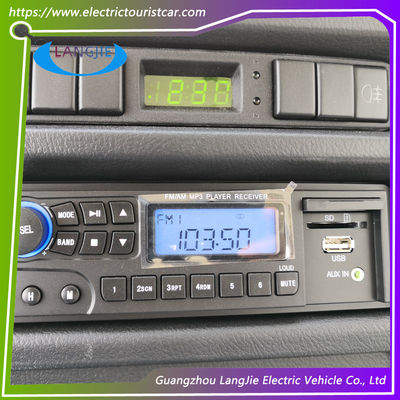

    Sound system Radio and MP3 player; Speaker
    Brake system Hydraulic double-loop four-wheel brake (front & rear drum) + handbrake
    Charger Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ
    Dashboard Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button
    Color Option White, Grey, Navy, Red, Khaki, Purple, Green etc.

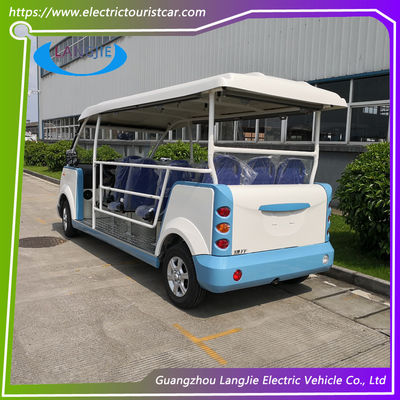

    Other model photos :

    1.2 Ton Large Space 72V DC Motor Utility Electric Tourist Car For Factory



    It has the characteristics of large load capacity and strong power.



    This section has 2, 4, 5seats, can load a variety of configurations, can be customized to install bus seats and other facilities, suitable for campus, villages, airports, terminal, real estate, tourist attractions, parks, amusement park, community, garden style hotels, resorts, villas, city street, port etc.





    FAQ


    1, what's your warranty time?
    All Langking golf cart sold by us are quality guaranteed.
    We provide 1 year warranty for main parts to our electric vehicles when you get them.

    2, What's the production time?
    Normally for 30 working days

    3, What's your payment term?
    T/T 30% deposit and balance paid before shipment
