11 Seater Electric Sightseeing Bus , 72v Electric Shuttle Car for Exhibition

Brand Name:	LANGJIE
Model Number:	D11AF
MOQ:	1 Unit
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	100 Units/ month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou

Certification:

Document:

Product Brochure PDF

Name:

Electric Shuttle Bus

Qty/20'GP (Assembled):

1 Unit

Qty/40'GP (Aassembled):

2 Units

Passenger Capacity:

14 Seats

Max.Speed:

38km/h

Range(loaded):

90km

Climbing Ability(loaded):

15%

Recharge Time:

8~10h

Packaging Details:

Non packing Or Steel Packing

Supply Ability:

100 Units/ month

Highlight:

11 seater electric sightseeing bus

Product Description

11 Seater Electric Sightseeing Bus , 72v Electric Shuttle Car for Exhibition

Product Application

They are easy to handle & maintain.

It is designed for non-public road use.

It is widely used in amusement park, city tourist line, upscale site, scenic spots as transportation facility.

Specifications of Model D11A Electric Shuttle Bus 11 seats:

HS CODE	8703101900
Qty/20'GP (Assembled)	1 unit
Qty/40' HQ(Assembled)	2 units

Specifications
Performance:
Passenger capacity	11 seats
Range(loaded)	90 km
Max.Speed	≤30m/h
Climbing Ability(loaded)	≤20%
Braking Distance	≤6m
Min.Turning Radius	≤6.5m
Recharge time	8~10h
Dimensions
L×W×H	465015102120mm
Axle Distance	2770mm
Vehicle Weight	1280kg
Max. loading	935kg

Standard Configurations
Motor	72V/7.5 KW AC motor
Controller	72V
Battery	Maintenance-free battery 6V/170Ah*12pcs
Body & Roof	High-strength composite material front apron (PP composite material injection-molded front cover) with excellent impact resistance. / Enhanced composite materials and aluminum alloy frame; lightweight, anti-aging, and resistant to fading.
Windshield	See-through Laminated glass
Seats	PU car seat, ergonomic, adjustable structure for driver's seat.
Rear view mirror	2pcs
Tire	Vacuum radial tire 165/70R13, steel rim
Chassis	High-strength steel frame longitudinal beam chassis, with electrophoresis and powder coating rust-proof treatment.
Steering	Dual-pinion rack and pinion steering + electric speed-sensitive power steering system
Front Suspension	Front MacPherson strut independent suspension, torsion springs + telescopic hydraulic shock absorbers
Rear suspension	Integral rear axle, leaf spring + telescopic hydraulic shock absorber
Lighting system	LED headlights/high beams, turn signals, rear combination taillights, horn, reversing beeper
Brake system	Dual-pinion rack and pinion steering + electric speed-sensitive power steering system
Charger	Intelligent high-frequency vehicle charger. Input voltage 220V, output 72V/25A.
Dashboard	Injection-molded dashboard with a combination switch, electric lock switch, emergency power-off switch, and a multifunctional LCD display (showing indicators such as voltage, battery level, speed, and mileage, along with an entertainment playback system). It is equipped with USB/Type-C ports, storage compartments, and a cup holder.

11 Seater Electric Sightseeing Bus , 72v Electric Shuttle Car for Exhibition

Product Showing:

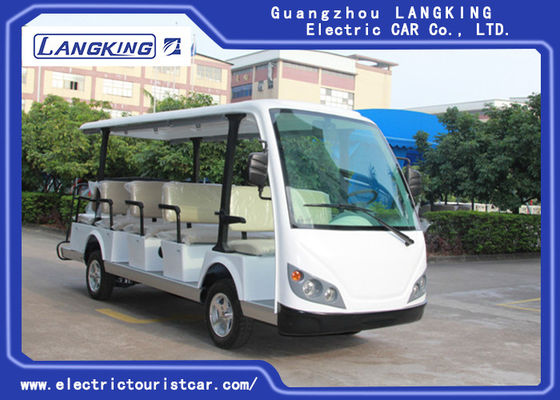

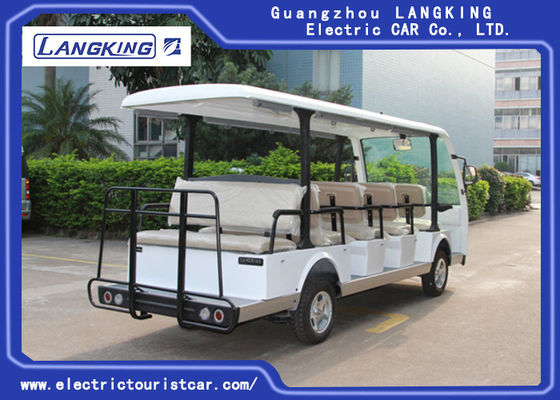

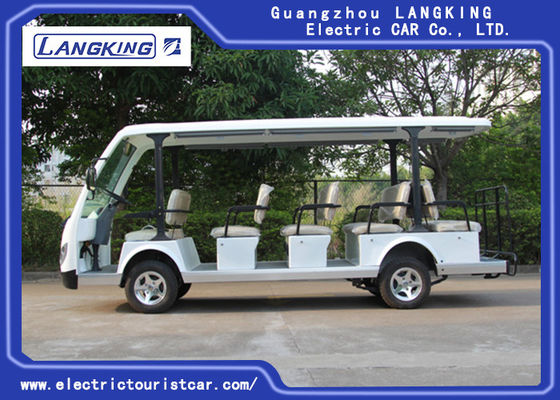

11 Seater Electric Sightseeing Bus , 72v Electric Shuttle Car for Exhibition

Application:

* Golf Course,any sports stadium or sports ground, country club, hotel, resort or other commercial setting. and so on.

Why choose Langjie electric vehicles for Tourist Cars?

· Ecological: they are 100% electric with zero emissions

· Silent: they can operate at any hour of the day or night

· Always operational: for continuous work shifts

· Flexible: hundreds of options available

FAQ:

1. What's your warranty time?
All Langjie vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.

2. What's the production time?
Normally for 30 working days.

3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.

4.Can we also purchase the parts?

Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
