|Place of Origin:||GUANGZHOU ,CHINA|
|Model Number:||Y145 Independent seat|
|Minimum Order Quantity:||1 UNIT|
|Packaging Details:||NUDE PACKING|
|Delivery Time:||20-25 WORKING DYA|
|Supply Ability:||300 /UNIT/MONTH|
|HS CODE:||8703101900||Qty/20'GP (Assembled):||1 Unit|
|Qty/40'GP (Aassembled):||2 Units||Passenger Capacity:||14 Seats|
|Max.Speed:||28 Km/h||Range(loaded):||100 Km|
|Climbing Ability(loaded):||25%||Braking Distance:||≤4.5m|
|Min.Turning Radius:||6.5 M||Min.Clearance:||150mm|
electric shuttle bus,
electric shuttle vehicles

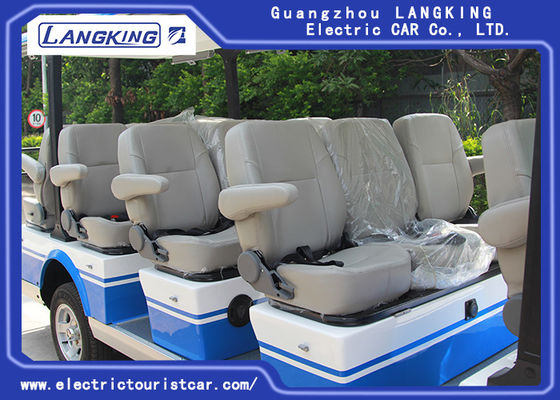

14 People Independent seat Electric Sightseeing Bus Max.Speed 28 km/h AC MOTOR 72V/7.5KW
|Max. loading||1190 kg|
|Motor||72V/7.5 KW AC motor|
|Body & Roof||High impact fiber glass|
|Windshield||See-through Laminated glass|
|Seats||Sponge + artificial leather|
|Rear view mirror||2pcs|
|Bumper||Front and rear Bumper|
|Tire||155/80 R12 Radial tire (Auto tire)|
|Chassis||Welded tubular steel with rust-proof powder coated paint|
|Front Suspension||The MacPherson Strut suspension system, coil spring+shock absorber|
|Rear suspension||Leaf spring+shock absorber non-independent suspension|
|Sound system||Radio and MP3 player; Speaker|
|Brake system||Hydraulic double circuit four wheel brake (front disc brake rear hub brake), and mechanical parking (hand brake).|
|Charger||Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ|
|Dashboard||Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button|
|Color Option||White, Grey, Navy, Red, Khaki, Purple, Green etc.|
City Bus 14 Seats Electric Shuttle Bus Vehicle
Passenger Capacity:14 people
Maximum loading:1275 kg
Classic design, various use
Adaptation:14 seats tourist bus is fit for different area. It can be used at scenic spot, park, airport, campus city etc.
- L×W×H 5045×1650×2310mm
- Motor 7.5kW(AC)
- Battery 6Vx12pcs
- Passenger Capacity 15 seats
- Kerb Weight 1550kg
- Gross Weight 2825kg
- Axle Distance 2650mm
- F Tread 1280mm
- F Tread 1360mm
- Min. Clearance 150mm
- Min Turning Radius 6.5m
- Braking distance≤5m
- Braking distance 25km/h
- Range 80km
- Charging Time 8~10h
- Climbing Ability(full loading) 20% (AC)
1. Strict quality control step by step.
2.After market service available.
3. Spare part available.
4. Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.
5.24 hours online service.
Life-time Spare Parts Supplies
In the life-time of the vehicles or maximum within a fews years we stop the production of any model, we still supply the spare parts for after service.
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
