CE Approved White Electric Club Carts 48V Battery 8 Seater AC Motor Electric Golf Buggy
Model EDA-E918-E6+2 Electric Club Car 8 Seats
Performance:
| Qty/20'GP (Disassembled) | 2 units |
| Qty/40'HQ (Disassembled) | 12 units |
Specifications:
| Passenger capacity | 8 seats |
| Max.Speed | 18-30km/h |
| Range(loaded) | 70km-80km(level road) |
| Climbing Ability(loaded) | 30% |
| Braking Distance | ＜6m |
| Min.Turning Radius | 5.7m |
| Roof color | Black |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 4485*1210*1940mm |
| F/R Tread | 900mm//1005mm |
| Axle Distance | 3305mm |
| Max. loading | 680 kg |
Standard Configurations
| Motor | 48V/5KW AC motor | ||
| Controller | 48V | ||
| Battery | Maintenance-free battery 8V /150Ah*6PCS | ||
| Body & Roof | The front cover, seat barrel and body cover parts are injection molded with automobile special PP material /Automobile PP material injection molding integrated molding roof | ||
| Windshield | Foldable windshield | ||
| Seats | Ergonomic seat, leather fabric | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front Bumper | ||
| Tire | 205/50-10'' Turf tire 10 inch iron rim | ||
| Chassis | Robotic welding chassis with high-end coating processing , Super strong, No Rust | ||
| Steering | Double gear rack steering system, automatic clearance compensation function | ||
| Front Suspension | Double swing arm independent front suspension + spiral spring + cylinder hydraulic shock absorption. | ||
| Rear suspension | Overall rear axle, speed ratio 12.49:1 spiral spring shock absorption + cylinder hydraulic shock + rear stabilizer bar | ||
| Lighting system | LED front combination light (near light, high beam, turn signal, daily running light, position light) LED rear taillight (brake light, position light, turn signal); snail horn, reversing buzzer | ||
| Sound system | Horn, back-up buzze | ||
| Brake system | Double-loop four-wheel hydraulic brake, four-wheel disc brake + electronic brake parking | ||
| Charger | Smart on-board charger Output:48V 25A, Input AC 220V/50HZ～60HZ | ||
| Dashboard | Injection molding instrument panel, electric lock switch, single arm combination switch, gear switch, water cup holder;, double USB power supply, 12V power supply. | ||
| Color Option | Ocean Grey ,Sapphire blue,Pearl black ,Pearl White ,Apple Green ,Matt Black ,Dark Green ,Orange ,Red | ||

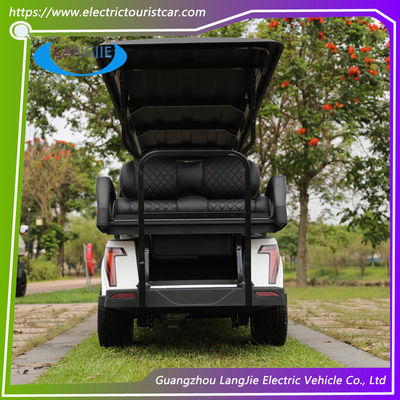

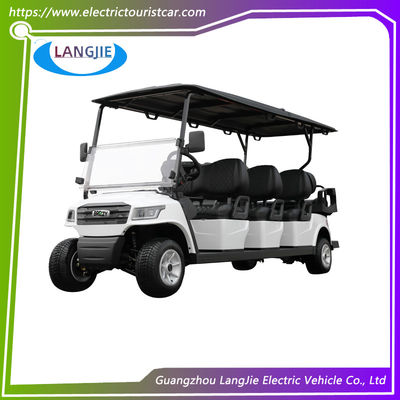

Product Showing:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langjie golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4.Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order MOQ 1 unit .
7.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8.How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Welcome to visit our factory !
