3.5 Meters Electric fire engine car /electric freight car 2 seats 70km range dry battery with toplight model H050
Performance:
Min.Clearance | 150mm | |
Recharge time | 8~10h | |
Max. Noise | ≤75dB |
Dimensions | ||
L×W×H | 3500×1440×1850 mm | |
Weight platform L×W×H | 2100×1420×1220mm | |
F/R Tread | 1280/1270mm | |
Axle Distance | 1820mm | |
Curb Weight | 1350kg | |
Water volume | 600L | |
Rated pressure (Mba) | 0.55 | |
Maximum flow (T/h) | 50 | |
Maximum head M | 70 | |
Engine Weight | 58kg | |
Engine Rate | 13HP | |
Self priming depth M | 7 | |
Engine type | Single cylinder gasoline engine | |
Water intake through mm | 65 | |
Standard Configurations | ||
Motor | 48V/4KW DC motor | |
Controller | 48V controller | |
Battery | Free-maintenance Batteries 6V/170Ah*8 pcs | |
Body | High impact fiber glass + Sheet metal carriage | |
Windshield | See-through Laminated glass | |
Seats | Sponge + artificial leather | |
Rear view mirror | 2pcs | |
Tire | 155/80R12 Radial tire with aluminium alloy wheel | |
Chassis | Welded tubular steel with rust-proof powder coated paint | |
Steering | Single reduction rack and pinion | |
Front Suspension | Integrated front axle, Leaf spring+shock absorber non-independent suspension | |
Rear suspension | Direct connect Integrated rear axle, Leaf spring+shock absorber non-independent suspension | |
Lighting system | headlights, front turn signals, rear turn signals and rear brake lights | |
Sound system | MP3 player; Speaker | |
Brake system | 4-wheel hydraulic drum brake system + handbrake | |
Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50-60 HZ | |
Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | |
fire-fighting equipment | Alarm device (1 sets), 20m fire hose water gun (1 sets), 3kg dry powder fire extinguisher (2), fire helmet (2), gas mask (2 sets), safe belt (2), fire-fighting gloves (2 pairs), fire hose (1 pairs), fire extinguisher support (2) fire flashlight, axe, broken wire clamp, fire hydrant wrench, hammer Steel shovel, fire crowbar (1 pieces each), police yelling (1), famous brand engine (with water pump), fire hose (1) with fast joint with 3M. | |
Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |

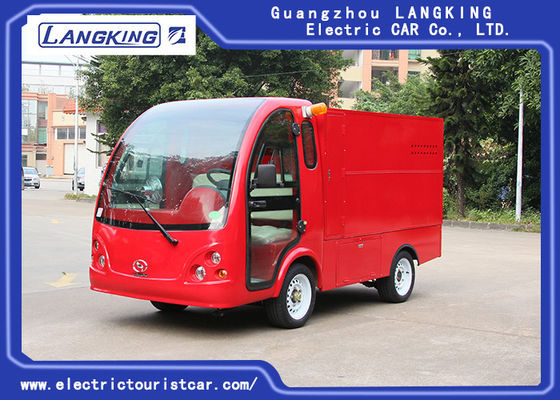

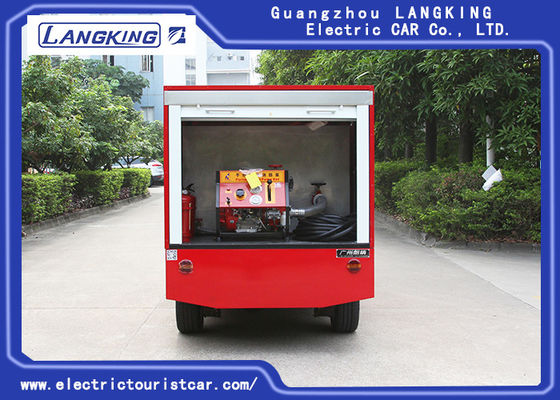

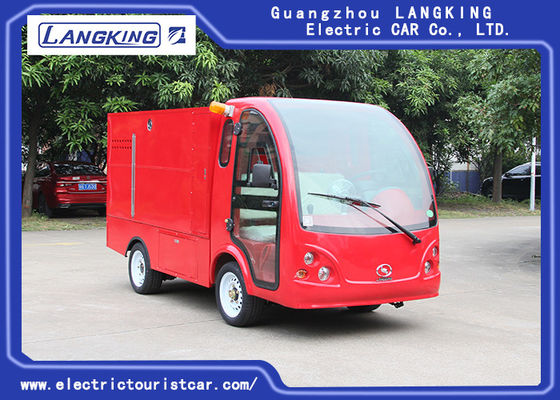

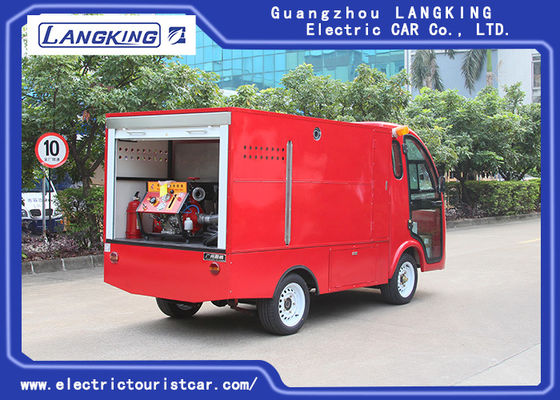

Showing Photos:
Product Advantages
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts.
3. Brake system: Rear wheel Mechanical Drum Brake
4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
5. Good hill climbing ability, the system allows you to customize the car to fit your course;
6. Smart steering system, easy to make forward and backward;
7. Good climbing ablity and can park easily on Hills;
8. Can be easily to be modified to Towing Tractor.
FAQ:
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
