| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | F047 |
2 Seaters Electric Car , Electric utility carts 48V/3KW With Bucket 80km range for hotel
The 2 seats Express short tray back golf cart offers an affordable choice for hauling light cargo at any sports stadium or sports ground, country club, hotel, resort or other commercial setting.
Product Application of 2 seats utility carts Model F047
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 3 units |
| Qty/20'GP (Disassembled) | 2 units |
| Qty/40'GP (Disassembled) | 6 units |
| Specifications | |
| Performance: | |
| Passenger capacity | 2 seats |
| Max.Speed | 24km/h |
| Range(loaded) | 80km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5m |
| Min.Clearance | 105mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 3280×1230×1880mm |
| F/R Tread | 870/980mm |
| Axle Distance | 2450mm |
| Curb Weight | 700kg |
| Max. loading | 400kg |
| Cargo box size | 1500mm*1210mm*300mm |
| Cargo box material | Steel-Frame Construction +Composite Board |
| Standard Configurations | |||
| Motor | 48V/3KW DC motor | ||
| Controller | 48V | ||
| Battery | battery 6V*8PCS | ||
| Body & Roof | ABS Plastic | ||
| Windshield | one - piece see-through POLYCARBONATE glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front | ||
| Tire | Steel 18×8.50-8 6PR | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Horn, back-up buzze | ||
| Brake system | Dual rear wheel mechanical self-adjusting drum brakes. | ||
| Charger | Automatic high efficiency pulse, Output:48V/20A, Input AC 220V/50HZ | ||
| Dashboard | Forward/reverse switch, turn signal indicator, ignition key, headlight switch, horn button,,electric power consumption indicator,four cup holders | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

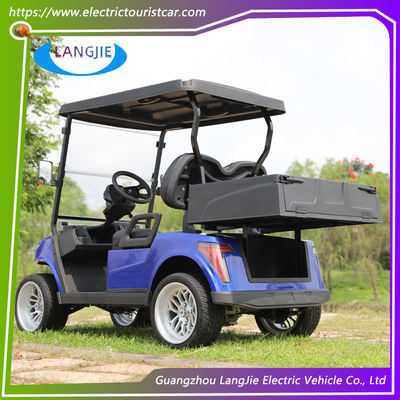

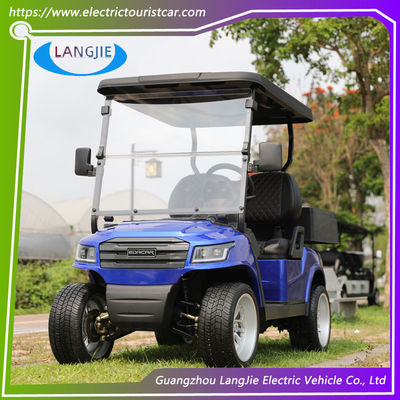

Product Showing:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
Efficiency
Go far with little or no environmental impact. EV people movers feature 48 V batteries that drive 50-60 miles after one full charge.
Universities – Shuttle students, faculty, and parents safely around campus.
Hospitals – Transport patients and staff quickly through medical campuses.
Theme Parks –tours through the park with zero emissions.
Resorts – Just part of the luxury. Move guests through the resort with efficiency and style.
Airports – Shuttle travelers between gates. No need to miss a flight.
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
