| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | F090 with roof |
900kg loading capacity White color electric mini truck 2 seats 48V/4KW with roof for factory /hotel
1.Innovative figure & ergonomic design concept seat make you enjoy luxury ;
2.Full automatci high frequency charger;
3.Whole style steel rear axle
4.Small turning radius; and smart steering system;
5.Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise.
| HS CODE | 8709119000 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 3 units |
| Specifications | |
| Performance: | |
| Passenger capacity | 2 seats |
| Max.Speed | 28km/h |
| Range(loaded) | 70km |
| Climbing Ability(loaded) | 12% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 4.5m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 3820×1430×1940mm |
| F/R Tread | 1210/1200mm |
| Axle Distance | 1935mm |
| Curb Weight | 900kg |
| Max. loading | 900kg |
| Weight Platform(L×W×H) |
2400×1360×300mm
|
| Standard Configurations | |||
| Motor | 48V/4KW DC motor | ||
| Controller | 48V | ||
| Battery | Maintenance-free battery 6V/170Ah*8pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

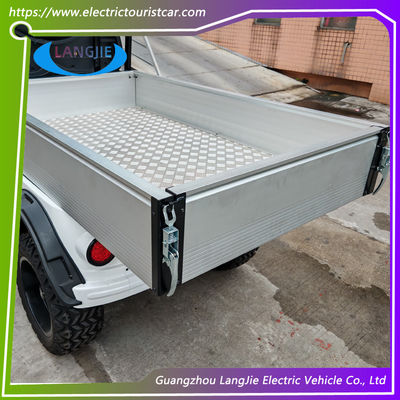

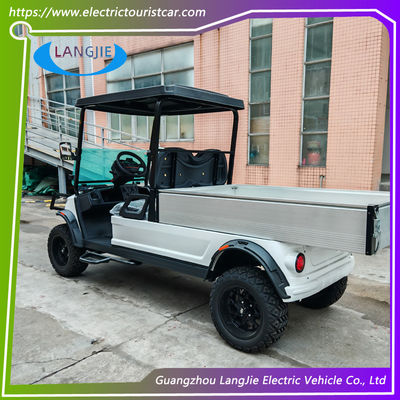

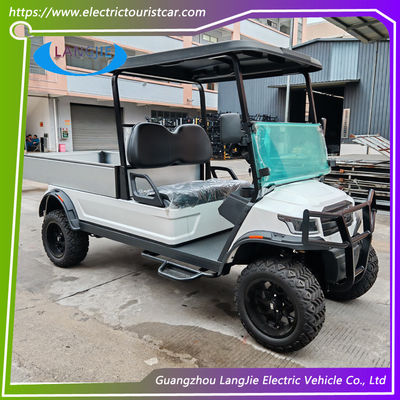

Showing Picture:
Comfort
people movers feature high-back seats, rack-and-pinion steering, and independent suspension.
Performance
Heavy duty Advanced AC and DC motors with a top speed of 28 km/h and 400 A Curtis Controllers; pack on the load, you won’t the notice difference.
Efficiency
Go far with little or no environmental impact. EV people movers feature 48 V Trojan batteries that drive 50-60 miles after one full charge.
Universities – Shuttle students, faculty, and parents safely around campus.
Hospitals – Transport patients and staff quickly through medical campuses.
Theme Parks –tours through the park with zero emissions.
Resorts – Just part of the luxury. Move guests through the resort with efficiency and style.
Airports – Shuttle travelers between gates. No need to miss a flight.
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
Our Services
1. Strict quality control step by step.
2.After market service available.
3. Spare part available.
4. Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.
5.24 hours online service.
