Electric Luggage Cart
Created with Pixso.

2 seats Hotel Or Park Electric Luggage Cart With Comfortable Chair AC motor

2 seats Hotel Or Park Electric Luggage Cart With Comfortable Chair AC motor

Brand Name: LANGJIE
Model Number: LQF093A With hydraulic tail plate
MOQ: 1 UNIT
Price: NEGOTIATED
Payment Terms: T/T
Supply Ability: 300/UNITS/MONTH
Detail Information
Place of Origin:
CHINA
Certification:
CE
Part Name:
Electric Freight Car
COLOR:
OPTIONAL
SEATS:
2 PERSON
BATTERY:
6V*8PCS
MOTOR:
AC MOTOR
CHAGRER:
48V
CHARGING TIME:
8-10H
HS CODE:
8709119000
Packaging Details:
NUDE PACKING
Supply Ability:
300/UNITS/MONTH
Highlight:

electric tourist vehicles

Product Description

CE Certificate 2 seats DC Controller dry Battery Powered Utility Cart Green Color Hotel Or Park Electric Luggage Cart With Comfortable Chair:



HS CODE 8709119000
Qty/20'GP (Assembled) 1 units
Qty/40'GP (Assembled) 2 units
Specifications
Performance:
Passenger capacity 2 seats
Max.Speed 25 km/h
Range(loaded) 70km
Climbing Ability(loaded) 20%
Braking Distance ≤4.5m
Min.Turning Radius 5m
Recharge time 8~10h
Dimensions
L×W×H 4080*1560*2010mm
Axle Distance 1960mm
Curb Weight950  950kg
Max. loading 900 kg
Standard Configurations
Motor 48V/5KW AC motor
Controller 48V controller
Battery Free-maintenance Batteries 6V/170Ah*8 pcs
Body

High strength composite body (PT+PBT alloy injection molding hood), with super anti-collision function.



Seats PU car seat, in line with the principle of ergonomics, the driving position can be adjusted
Rear view mirror 2pcs
Tire Vacuum meridian tire 165/70R13, steel rim with rim cover.
Chassis

High strength steel structure frame longitudinal beam chassis,

electrophoretic + spray powder anti-rust treatment.

Steering Gear rack steering + electric steering assist system.
Front Suspension Front McPherson independent suspension, spiral spring + cylinder hydraulic shock absorber.
Rear suspension Integrated rear axle, steel spring + cylinder hydraulic shock absorber.
Brake system

The front disc hydraulic double circuit brake + handbrake parking,

with vacuum assisted brake system.

Charger Intelligent high-frequency on-board charger, input voltage AC220V output DC48V/25A.
Rear door hydraulic pressure lift board
Dashboard

Injection molding dashboard, with combination switch,

electric lock switch, emergency power off switch,

multi-function LCD display (including voltage, electricity,

speed mileage and other instrument indicators

and entertainment playback system), equipped

with USB/Type-C interface, storage box, water cup seat.

Color Option White, Grey, Navy, Red, Khaki, Purple, Green etc.

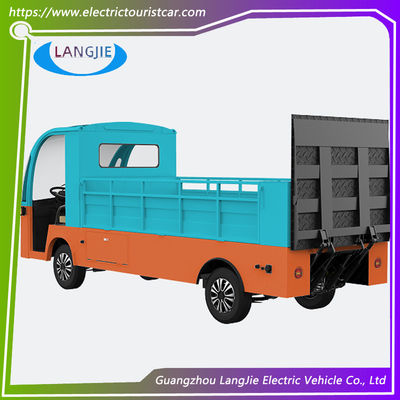

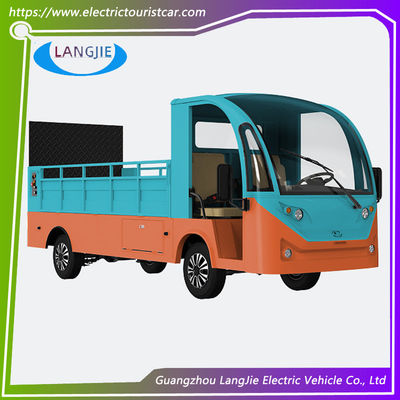

PHOTO:



2 seats Hotel Or Park Electric Luggage Cart With Comfortable Chair AC motor 0

2 seats Hotel Or Park Electric Luggage Cart With Comfortable Chair AC motor 12 seats Hotel Or Park Electric Luggage Cart With Comfortable Chair AC motor 2



Application:





* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.





FAQ:


1. What's your warranty time?
All Langjie
 golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.

2. What's the production time?
Normally for 30 working days

3. What's your payment term?
T/T 30% deposit and balance paid before shipment.

4.Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
