| Place of Origin: | CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y111B Wheelchair Car |
| Document: | Product Brochure PDF |
ELECTRIC SHUTTLE BUS MODEL Y111B 5 seats with Wheelchair using resort/school/park
Technical Parameter:
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 2 units |
| Performance: | |
| Passenger capacity | 5 seats |
| Max.Speed | 28km/h |
| Range(loaded) | 100km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 6.5m |
| Min.Clearance | 150mm |
| Recharge time |
8~10h
|
| Dimensions | |
| L×W×H | 4580×1430×1940mm |
| F/R Tread | 1210/1200mm |
| Axle Distance | 2650mm |
| Curb Weight | 1170 kg |
| Max. loading | 935kg |
| Controller | 72V | ||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

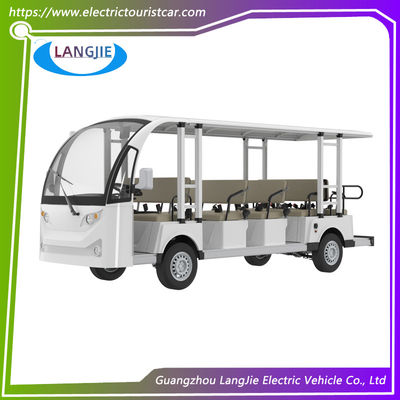

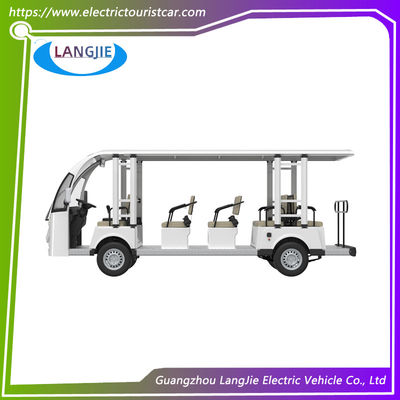

Photo:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1.What is your MOQ?
You can order MOQ 1 unit .
2.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
3. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit ;
2). We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
