| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y111B with toplight |
11 Person Electric Shuttle Car , Motorised Golf Buggies Y111B 11 SEATERS
Feather of electric cart:
1 Type sofa chair, comfortable
2 Efficient special driving axle
3 FR/disc RR/drum, safey
This type of electric cart is becoming more and more popular, and we're selling very well over the country.
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 2 units |
| Performance: | |
| Passenger capacity | 11 seats |
| Max.Speed | 28 km/h |
| Range(loaded) | 100km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
| Dimensions | |
| L×W×H | 4580×1430×1940mm |
| F/R Tread | 1210/1200mm |
| Axle Distance | 2650mm |
| Curb Weight | 1050kg |
| Max. loading | 880kg |
|
|||||||
| Motor | 72V/5KW DC motor | ||||||
| Controller | 72V | ||||||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||||||
| Body & Roof | High impact fiber glass | ||||||
| Windshield | See-through Laminated glass | ||||||
| Seats | Sponge + artificial leather | ||||||
| Rear view mirror | 2pcs | ||||||
| Bumper | Front and rear Bumper | ||||||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||||||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||||||
| Steering | Single reduction rack and pinion | ||||||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||||||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||||||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||||||
| Sound system | Radio and MP3 player; Speaker | ||||||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||||||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||||||
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||||||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||||||

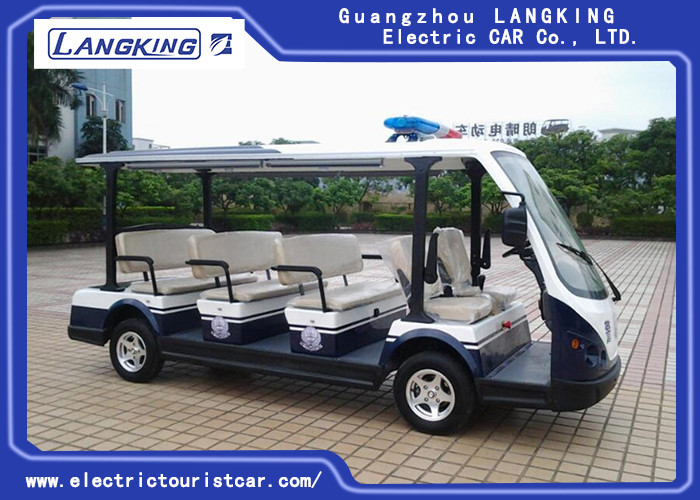

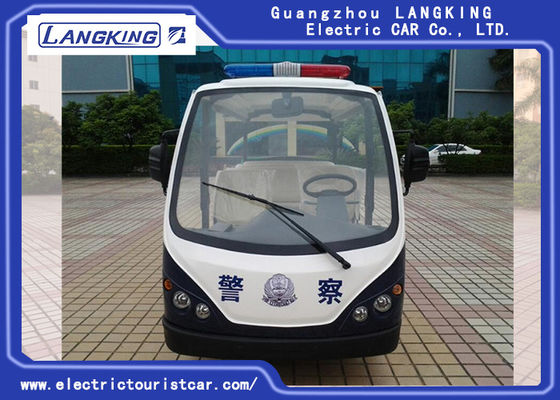

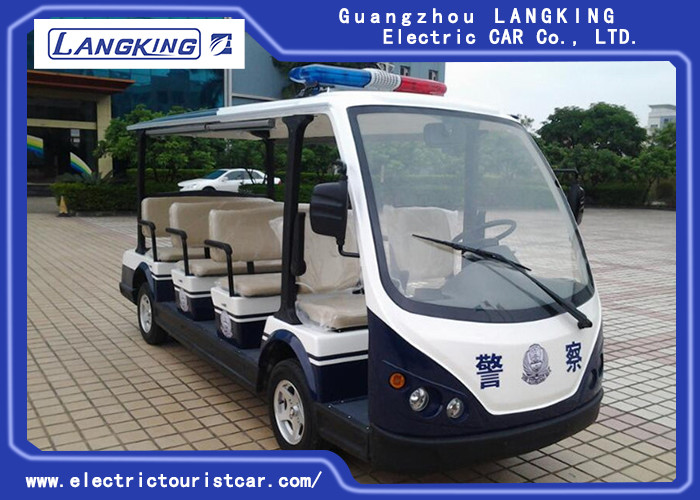

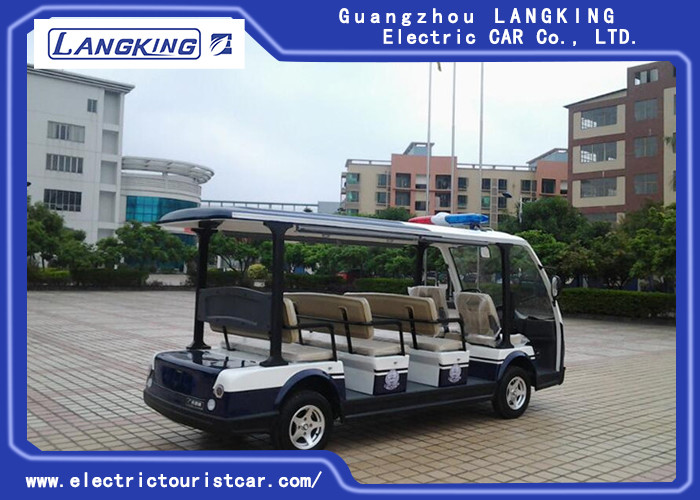

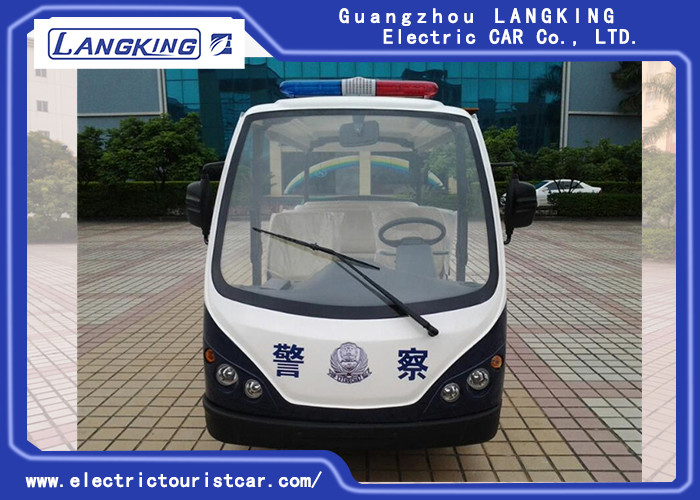

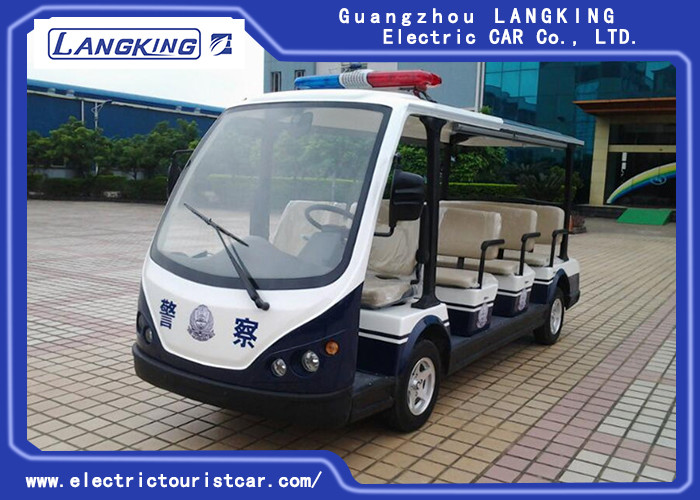

Picture:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
Our Services
1. Strict quality control step by step.
2.After market service available.
3. Spare part available.
