Brand Name: | Langjie |
Model Number: | G100 |
MOQ: | 3 Unit |
Price: | Negotiate |
Payment Terms: | T/T |
Supply Ability: | 100Units/ month |
Langjie sightseeing car can be used for scenic spot sightseeing, public security patrol, short-distance shuttle, etc., so it is widely used in scenic spot, hotel, school, police station, fair…
Langjie sightseeing car with a stylish exterior, ride comfort, powerful engine or electric capacity, safety design, etc., especially its body is made by steel plate that be treated by electrophoresis treatment, this ensures a high quality and performance.
Gasoline sightseeing car series includes 8-seats,11-seats,14-seats,18-seats and 22-seats.
Specifications :
MOQ | 3 UNITS | ||
Passenger Capacity(seats, including driver) | 2 seats | ||
Overall Dimension(L*W*H, mm) | 4490×1610×1900 mm | ||
Container volume | 2622×1457×1340mm | ||
Rudder | LHD | ||
Wheel base | 3050mm | ||
Wheel base front/rear | 1386/1408mm | ||
Tire specifications | 175/70R14C | ||
Maximum gradability | 27% | ||
Maximum speed | 90km/h | ||
Minimum ground clearance | 125mm | ||
Min turning diameter | 11.9m | ||
Sprung mass | 950KG | ||
Max. total mass | 2510KG | ||
Mass of preparation | 1430KG | ||
Full load shaft load | 1135KG | ||
1375KG | |||
Power type | EV | ||
Battery type | Lithium Iron Phosphate | ||
Electric power | 41.86 kwh | ||
Charging time(fast charge) | 1h | ||
Rated/Peak power | 30/60kw | ||
Rated/Peak torque | 90/220 N·m | ||
Pure electric driving range(NEDC) | 300 km | ||
Front suspension | Macpherson independent suspension | ||
Rear suspension | Multi-link non-independent suspension | ||
Drive system | Integral rear axle reduction assembly | ||
Steering gear |
Rack and pinion type mechanical steering gear | ||
AC | Optional | ||
Basic hand tool | Optional | ||
Battery Heating | Optional | ||
Note: | This information is only for reference, Labgjie has final explanation right. |

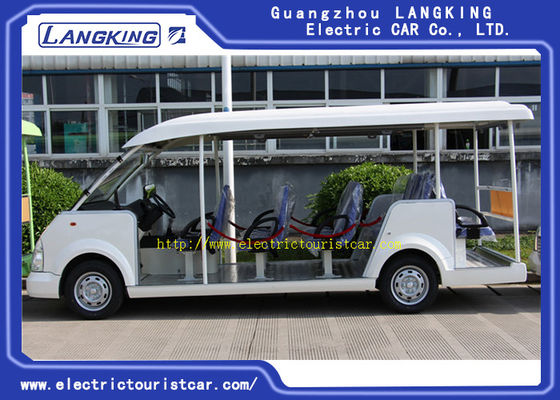

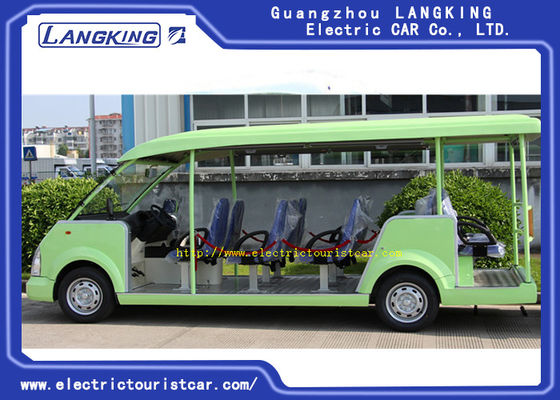

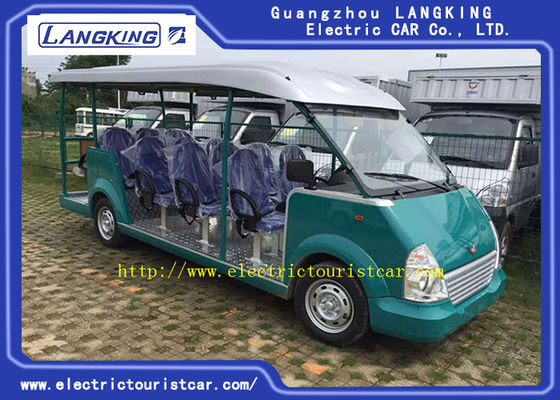

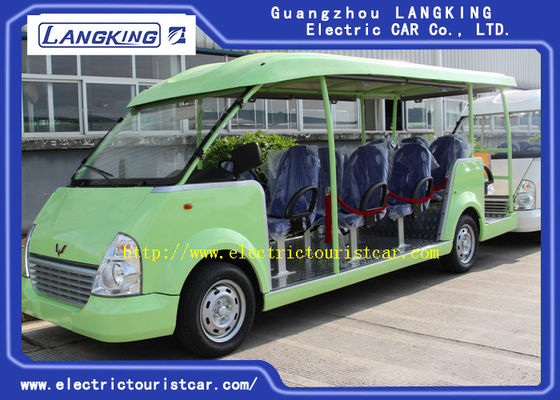

Detail Photos :
Application:
Shuttle bus can be used for scenic spot sightseeing, public security patrol, short-distance shuttle, etc., so it is widely used in scenic spot, hotel, school, police station, fair.
Gasoline shuttle bus series includes 8-seat,11-seat,14-seat ,18-seat and 22-seat. We can also design and manufacture customized sightseeing car according to customers.
FAQ:
1. What's your warranty time?
All Langjie vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
4. Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
5. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.
6. What is your MOQ?
You can order MOQ 1 unit .
7. Can we put the Logo we designed on the vehicle?
Yes, you can put your own Logo on the vehicle where you like.
8. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
9. How about the dealer?
If you can sell to get the quantity about 100-200pcs in a year,then the next year,we will sign exclusive dealer with you and prosime never sold to your dealer area.Great to do business with you and your good choice.
