| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | Y146 |
White Colour 2 seats+2Rows 72V Electric Ambulance Car For Emergency Closed Type used in Hospital :
Product Advantages
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts.
3. Brake system: Rear wheel Mechanical Drum Brake
4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
5. Good hill climbing ability, the system allows you to customize the car to fit your course;
Specifications of Model LQY146 Electric Shuttle Bus
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP(Aassembled) | 2 units |
Performance:
| Passenger capacity | 2 seats+2Rows |
| Max.Speed | 38km/h |
| Range(loaded) | 90km |
| Climbing Ability(loaded) | 15% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 4965×1520×1970mm |
| F/R Tread | 1280/1270mm |
| Axle Distance | 2650mm |
| Curb Weight | 1290kg |
| Max. loading | 1120kg |
Standard Configurations:
| Motor | 72V/5KW DC motor | ||
| Controller | 72Vcontroller | ||
| Battery | battery 6V*12PCS | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Power-Assisted Steering | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option |
White, Grey, Navy, Red, Khaki, Purple, Green etc.
|
||

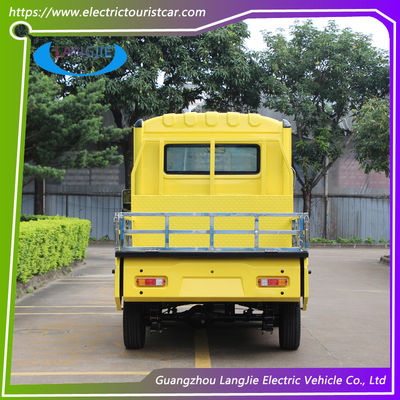

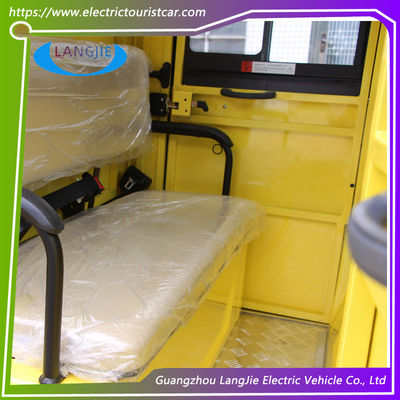

Product Showing:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Hospital and so on.

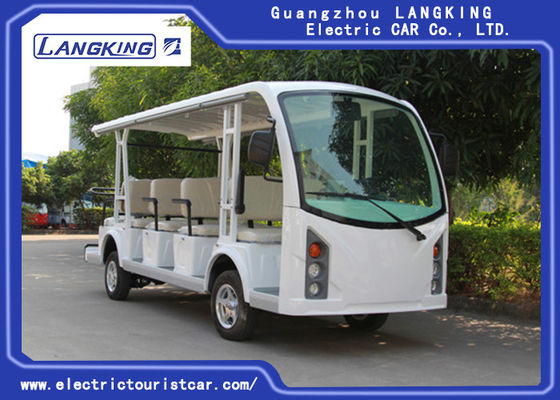

Whether you need to transport 14 guests with luggest box, or 12 guests with two facing rearwards, the Standard 14seats is a beautiful addition to any resort's fleet. Using the latest design and quality components from around the global, while providing excellent value for money. Ensuring a level of comfort unavailable,Adjustable camber provides longer tyre life. Rollaway protection and downhill regenerative braking are included as standard equipment.
Have your vehicle finished in your choice of colour scheme, with black or ivory coloured seats. Other options include alloy wheels, AC or DC motors, weather enclosures and rear vision mirrors. The Standard 14seats is one of the most beautiful golf carts has ever seen! With class-leading 150mm ground clearance, headlights and tail lights, this 14-seat tourist cart is worthy of your consideration.
Shippent packing；
Our Services
1. Strict quality control step by step.
2.After market service available.
3. Spare part available.
4. Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.
5.24 hours online service.
