| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | F047 |

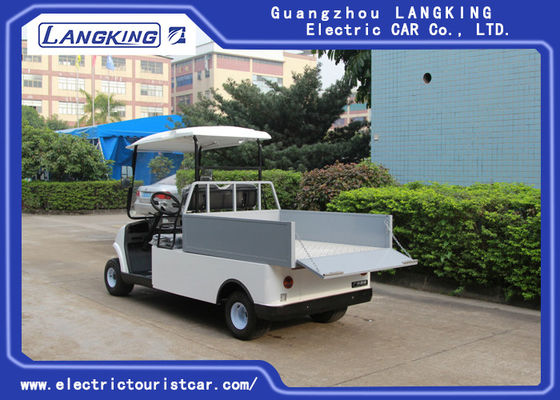

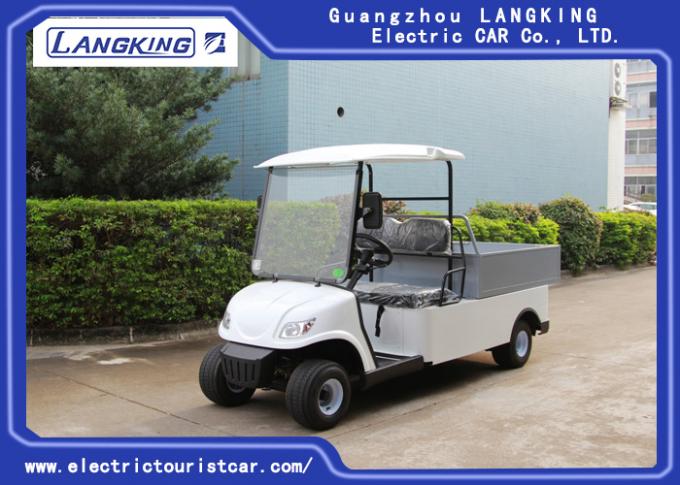

Model LQF047 Electric Luggage Cart Two Seats with Cargo Box
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Assembled) | 3 units |
| Qty/40'GP (Disassembled) | 6 units |
Performance:
| Passenger capacity | 2 seats |
| Max.Speed | 19~24km/h |
| Range(loaded) | 70km |
| Climbing Ability(loaded) | 20% |
| Braking Distance | ≤4m |
| Min.Turning Radius | 4m |
| Min.Clearance | 105mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 3050×1220×1170mm |
| F/R Tread | 870/980mm |
| Axle Distance | 2070mm |
| Curb Weight | 570kg |
| Max. loading | 400kg |
| Cargo box size | 1300mm*1140mm*380mm |
| Cargo box material | Steel-Frame Construction +Composite Board |
Standard Configurations:
| Motor | 48V/3KW DC motor | ||
| Controller | 48V | ||
| Battery | battery 6V*8PCS | ||
| Body & Roof | ABS Plastic | ||
| Windshield | one - piece see-through POLYCARBONATE glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front | ||
| Tire | Steel 18×8.50-8 6PR | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Horn, back-up buzze | ||
| Brake system | Dual rear wheel mechanical self-adjusting drum brakes. | ||
| Charger | Automatic high efficiency pulse, Output:48V/20A, Input AC 220V/50HZ | ||
| Dashboard | Forward/reverse switch, turn signal indicator, ignition key, headlight switch, horn button,,electric power consumption indicator,four cup holders | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||
ProductShowing:
FAQ:
1, what's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2, What's the production time?
Normally for 30 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
5, How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6. What is your MOQ?
You can order MOQ 1 unit .
7, Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8, How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
