| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | Y083A |
| Document: | Product Brochure PDF |
· Ecological: they are 100% electric with zero emissions
· Silent: they can operate at any hour of the day or night
· Always operational: for continuous work shifts
· Flexible: hundreds of options available
Electric cars offer advantages of both an economic and technical nature. Running costs are lower as, unlike combustion vehicles, there aren't any parts subject to wear, and the motor works in a cleaner, more simple manner than traditional engines.
But there are also other benefits, such as the possibility to move freely even in areas with traffic limitations because these vehicles are non-polluting. This is a huge advantage nowadays, given the ever increasing traffic bans. Consumption is very low,

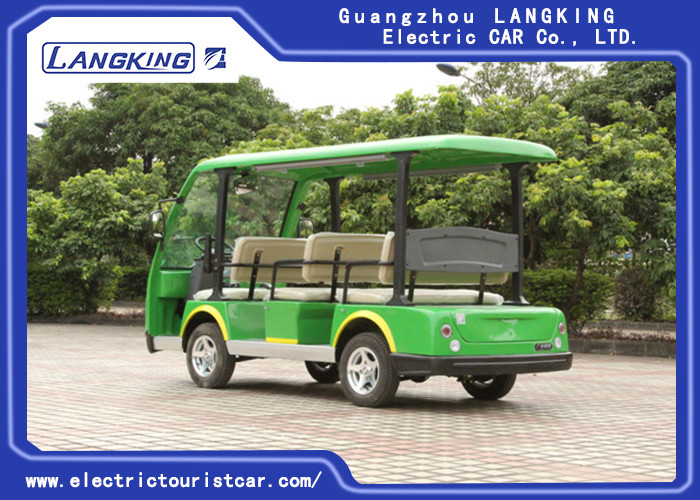

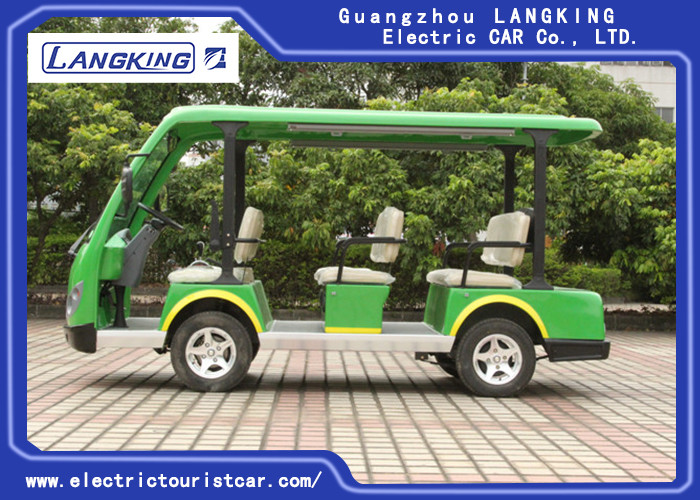

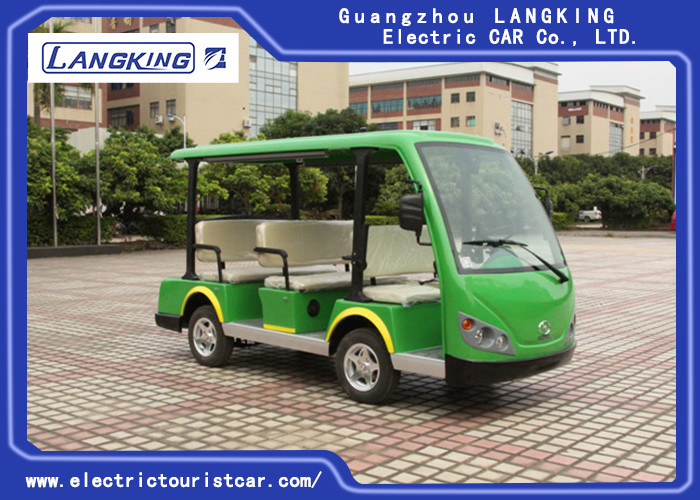

Model LQY083A Electric Shuttle Bus 8 Seats
Specifications :
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Aassembled) | 3 units |
Performance:
| Passenger capacity | 8 seats |
| Max.Speed | 28km/h |
| Range(loaded) | 80km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4m |
| Min.Turning Radius | 4m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 3860×1430×1940mm |
| F/R Tread | 1210/1200mm |
| Axle Distance | 1935mm |
| Curb Weight | 830kg |
| Max. loading | 640kg |
Standard Configurations:
| Motor | 48V/3KW DC motor | ||
| Controller | 48V | ||
| Battery | Maintenance-free battery 6V/170Ah*8pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 110/220V, 50-60HZ | ||
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||
Product Showing:
Comfort
people movers feature high-back seats, rack-and-pinion steering, and independent suspension.
Performance
Heavy duty Advanced AC and DC motors with a top speed of 28 km/h and Curtis Controllers; pack on the load, you won’t the notice difference.
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
4.Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
