| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | Y081A |
8 seats Electric Shuttle Bus is the perfect option for grounds maintenance personnel in hotels, resorts, schools, universities, parks, theme-parks, shopping centres and stadiums.These vehicles can be fitted with a number of power options to suit your environment. Using the latest technology, this vehicle is made with PP Plastic front and rear body.
Specifications of Model LQY081A Electric Shuttle Bus 8 Seats
· Hundreds of configurations available
· Negotiable slope up to 15%
· 3 different types of cars to choose
· 100% made in China
Detail:
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Aassembled) | 3 units |
Performance:
| Passenger capacity | 8 seats |
| Max.Speed | 28km/h |
| Range(loaded) | 80km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4m |
| Min.Turning Radius | 4m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
| L×W×H | 3860×1430×1940mm |
| F/R Tread | 1210/1200mm |
| Axle Distance | 1935mm |
| Curb Weight | 830kg |
| Max. loading | 640kg |
Standard Configurations:
| Motor | 48V/3KW DC motor | ||
| Controller | 48V | ||
| Battery | Maintenance-free battery 6V/170Ah*8pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Single reduction rack and pinion | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:48V/25A, Input AC 110/220V, 50-60HZ | ||
| Dashboard | Voltameter, ammeter, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

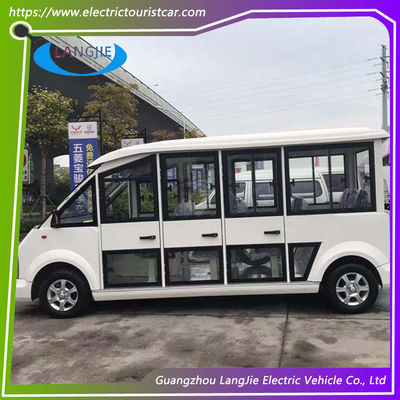

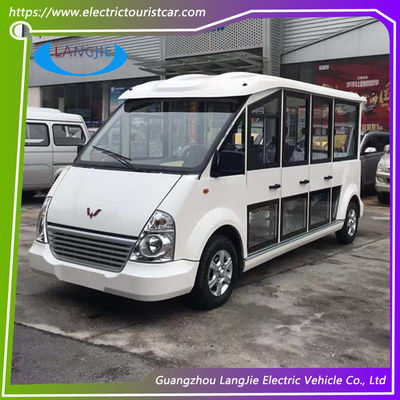

Product Showing:
Application:
Whether you need to transport 4 guests with golf bags, or 7 guests , the Standard Six is a beautiful addition to any resort's fleet. Using the latest design and quality components from around the global, while providing excellent value for money. Ensuring a level of comfort unavailable,Adjustable camber provides longer tyre life. Rollaway protection and downhill regenerative braking are included as standard equipment.
· Ecological: they are 100% electric with zero emissions
· Silent: they can operate at any hour of the day or night
· Always operational: for continuous work shifts
· Flexible: hundreds of options available
FAQ:
1.Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
2. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.
3.What is your MOQ?
You can order MOQ 1 unit .
4.Can we put the Logo we designed on the vehicle?
Yes, you can put your own Logo on the vehicle where you like.
