| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | Y110B |
| Document: | Product Brochure PDF |

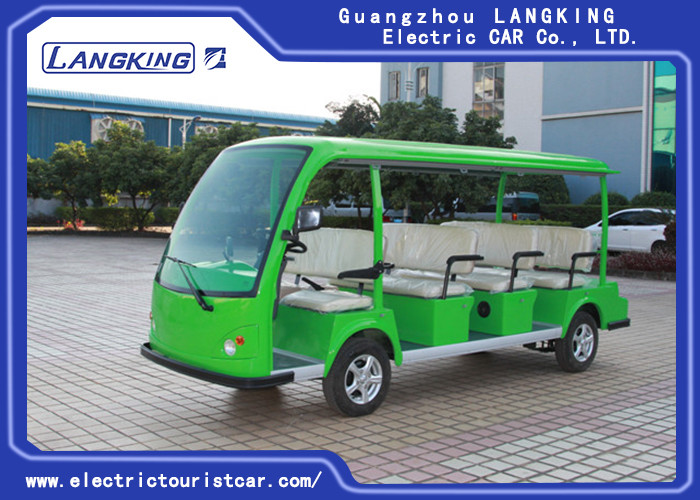

Eco Friendly Electric Tourist Car Green 11 Seats High Frequency On board Charger
The electric tourist car is driven by the storage battery power supply, without generating any harmful gas polluting the gas. It is one kind of environmental passenger vehicle specially designed for the tourist attraction, park, large-scale recreation ground, gated community, campus, garden hotel, villa district, city commercial pedestrian street, airport, port and wharf. The vehicle has excellent performance, modern appearance design, luxury and delicate trim, comfortable and safe driving experience, which makes it the most ideal intra-field vehicle at home.
Model LQY110B Electric Shuttle Bus 11 Seats
Specifications :
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Aassembled) | 2 units |
Performance:
| Passenger capacity | 11 seats |
| Max.Speed | 40km/h |
| Range(loaded) | 100km |
| Climbing Ability(loaded) | 20% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 4615×1520×1970mm |
| F/R Tread | 1280/1270mm |
| Axle Distance | 2650mm |
| Curb Weight | 1230kg |
| Max. loading | 880kg |
Standard Configurations:
| Motor | 72V/5KW DC motor | ||
| Controller | Curtis 72V/400A controller | ||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Power-Assisted Steering | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
|
Color Option |
White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||
Product Showing:
· Ecological: they are 100% electric with zero emissions
· Silent: they can operate at any hour of the day or night
· Always operational: for continuous work shifts
· Flexible: hundreds of options available
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
