| Place of Origin: | Guangzhou |
| Brand Name: | Langking |
| Certification: | CE |
| Model Number: | Y110B |
| Document: | Product Brochure PDF |
Multi - Purpose Electric Sightseeing Bus Yellow11 Seater Electric Car Shuttle Bus
Feather of electric cart:
1 Type sofa chair, comfortable
2 Efficient special driving axle
3 FR/disc RR/drum, safey
Specifications of Model LQY110B Electric Shuttle Bus 11 seats
| HS CODE |
8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Aassembled) | 2 units |
Performance:
| Passenger capacity | 11 seats |
| Max.Speed | 40km/h |
| Range(loaded) | 100km |
| Climbing Ability(loaded) | 20% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 4615×1520×1970mm |
| F/R Tread | 1280/1270mm |
| Axle Distance | 2650mm |
| Curb Weight | 1230kg |
| Max. loading | 880kg |
Standard Configurations:
| Motor | 72V/5KW DC motor | ||
| Controller | Curtis 72V/400A controller | ||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Power-Assisted Steering | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option |
White, Grey, Navy, Red, Khaki, Purple, Green etc.
|
||

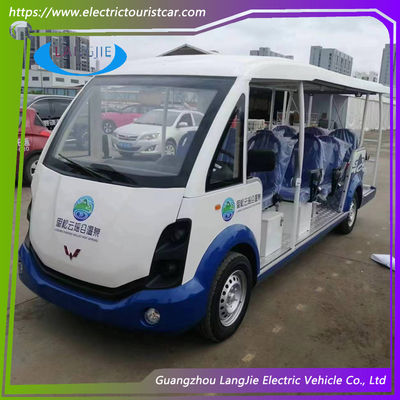

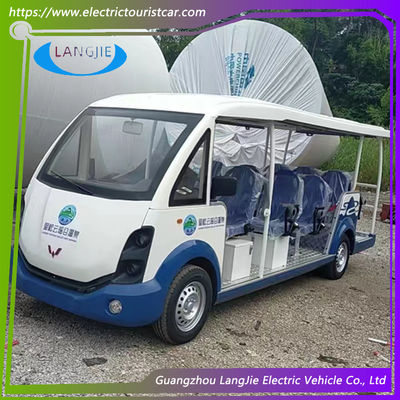

Product Showing:
Application:
Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.
2. What is your MOQ?
You can order MOQ 1 unit .
3. How about the dealer?
If you can sell to get the quantity about 100-200pcs in a year,then the next year,we will sign exclusive dealer with you and prosime never sold to your dealer area.Great to do business with you and your good choice.
