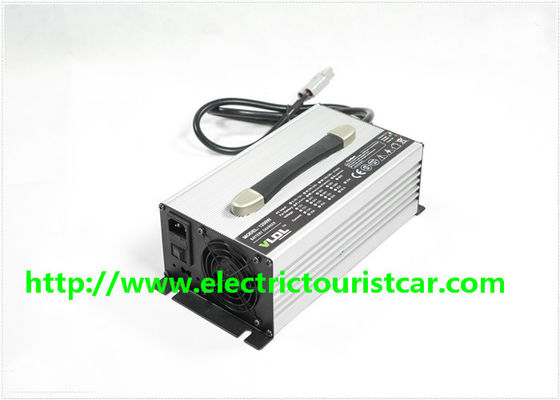

Portable On Board Electric Car Battery Charger For Club Cart Shuttle Bus

Portable On Board Electric Car Battery Charger For Club Cart Shuttle Bus

    • Portable On Board Electric Car Battery Charger For Club Cart Shuttle Bus
    • Portable On Board Electric Car Battery Charger For Club Cart Shuttle Bus
  • Portable On Board Electric Car Battery Charger For Club Cart Shuttle Bus

    Product Details:

    Place of Origin: Guangzhou
    Brand Name: Langking
    Model Number: 48V 20A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiate
    Packaging Details: Carton Box
    Delivery Time: 5-10 Working Days
    Payment Terms: T/T
    Supply Ability: 100Unit/Week
    Contact Now
    Detailed Product Description
    Electric Vehicle Charger: 48V Applicable Models: Club Cart Shuttle Bus Classic Car
    Packintg: Carton Box Air Transportation International Express: DHL,TNT,FedEx,UPS,EMS,ETC.
    High Light:

    electric golf cart battery charger


    club car 48 volt battery charger

    Portable On Board Electric Car Battery Charger For Club Cart Shuttle Bus

    Electric Vehicle Charger 48V for Club Cart Shuttle Bus Classic Car


    Technical parameters

    Case Material: Aluminum Size: 260*150*90 MM
    Net Weight: 4.5 KG Input Volt: 110 or 230 Vac
    Output: Rated 48V 20A, Max 54.6 / 58.4 / 58.8V Housing Color: Black Or Silver
    Battery Types: Lithium Or Lead Acid Battery Charging Method: Pre Charge, CC, CV, Floating / Trickle / Shut Off
    Applied To EV: Electric Golf Cart, Electric Club Car and E-tourist Car



    4 Steps Portable Automatic Battery Charger 48V 20A High Power With Aluminum Housing


    Brief Description:


    Portable battery charger 48 volts 20 amps with aluminum housing and small size. Input 110V or 230 Vac. Max charging voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 48V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.




    AC input voltage: 110 or 240Vac

    AC input freq.: 50 / 60 Hz

    Rated output: 48V 20Amps

    Max charging voltage: 58.8V

    Dimensions(LxWxH): 260 x 150 x 90 mm

    Net weight: 4.5 KG

    Housing: Aluminum


    Charging method:


    For Lead-acid Battery: pre-charge, CC, CV, floating.

    For Lithium Battery: pre-charge, CC, CV, trickle, auto cut-off.





    High Frequency Switching Mode Power Supply

    Smart MCU controlled





    Short circuit, Over-voltage, Over-temperature, Reverse Polarity.





    Fully 2-year warranty with Free Replacing Policy.

    Response in 24 hours after getting failed product report from customers.





    Charging 48V Lead-acid Battery Powered Electric Golf Cart, Electric Club Car and E-tourist Car.



    Input Plug & Output Connector:


    We supply different plugs and connector by customer's applications.



    Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG
    Input Model Apply to battery types Floating V CV (V) CC (A) Switching


    AC Input:

    110 / 230V





    VL1260L 12V LiFePO4 Battery   14.6V 60A CC5~8%
    VL1260 12V Lead-acid Battery 13.5V 14.7V 60A CC20%
    VL1460 14V AGM Battery 13.5V 14.4V 60A CC20%
    VL1660L 16V LiFePO4 Battery   18.2V 60A CC5~8%
    VL2435LM 24V Li-MnO2 Battery   29.4V 35A CC5~8%
    VL2435L 24V LiFePO4 Battery   29.2V 35A CC5~8%
    VL2435 24V Lead-acid Battery 27.6V 29.4V 35A CC20%
    VL3620LM 36V Li-MnO2 Battery   42V 20A CC5~8%
    VL3620L 36V LiFePO4 Battery   43.8V 20A CC5~8%
    VL3620 36V Lead-acid Battery 41.4V 44.1V 20A CC20%
    VL4818LM 48V Li-MnO2 Battery   54.6V 18A CC5~8%
    VL4818L 48V LiFePO4 Battery   43.8V 18A CC5~8%
    VL4818 48V Lead-acid Battery 55.2V 58.8V 18A CC20%
    VL6015L 60V LiFePO4 Battery   73V 15A CC5~8%
    VL6015 60V Lead-acid Battery 67.5V 73.5V 15A CC20%
    VL7213L 72V LiFePO4 Battery   87.6V 13A CC5~8%
    VL7213 72V Lead-acid Battery 81V 88.2V 13A CC20%
      VL8411L 84V LiFePO4 Battery   102.2V 11A CC5~8%
      VL8411 84V Lead-acid Battery 94.5V 102.9V 11A CC20%
      VL9610L 96V LiFePO4 Battery   116.8V 10A CC5~8%
      VL9610 96V Lead-acid Battery 108V 117.6V 10A CC20%
    Note: customized input / output / plug type / connectors are available.


    Battery Charger Knowledge


    Q. What charger should I choose?
    A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.


    Q. Can I charge several batteries in parallel?
    A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.


    Q. Can you really connect and then forget about the charger?
    A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.






    Q1, What golf cart shuttle bus tourist car classic car luggage cart club cart electric car's parts do you supply?
    A: We supply a wide variety parts ranging from steerin box, suspension, lift kits, wheel hub, steering shaft, steering yoke, shock absorber...

    Q2,How long have you dealing with the golf cart parts?
    A: Since 2003

    Q3,Do you develop according samples?
    A: Yes, we can develop new items according customers' samples


    Q4, Do you accept small quantity orders?

    A: Yes, we have some items in stocks, or conbine the small quantity with other customer's order to produce


    Q5, Can we also purchase the parts
    Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.

    Q6, How do you provide after-sales once customer bought the cart from us?
    Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

    Q7,What is your MOQ?
    You can order MOQ 1 unit .


    Q8,How do you make our business long-term and good relationship?

    1. We keep good quality and competitive price to ensure our customers benefit ;

    2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
