Place of Origin: | Guangzhou |
Brand Name: | Langking |
Certification: | CE |
Model Number: | Y146 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiate |
Packaging Details: | Non packing |
Delivery Time: | 20-25 working days |
Payment Terms: | T/T |
Supply Ability: | 100Units/ month |
HS CODE: | 8703101900 | L*W*H: | 5000mm*1480mm*1988mm |
---|---|---|---|
Kerb Weight: | 1350kgs | Passenger Capacity: | 14 Seats |
Max.Speed: | 38km/h | Range(loaded): | 90km |
Climbing Ability(loaded): | 15% | Recharge Time: | 8~10h |
Model: | LQY146 With Door | Motor: | 72V |
Color: | Optional | ||
High Light: | electric tourist vehicles,electric sightseeing bus |

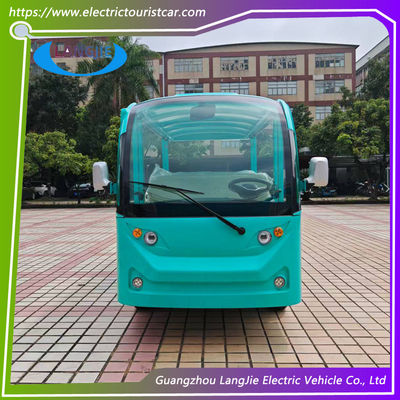

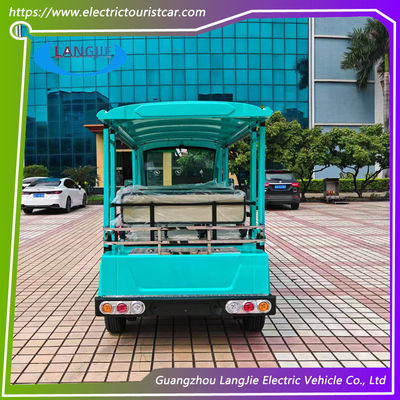

Closed 14 seats Electric Shuttle Bus Sightseeing Car Chinese Mini Bus for Hotel Model Y146 72V
Feather of electric cart:
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
*2) Range will vary depending on temperature, grade, payload and driving style.
Model Y146 Electric sightseeing car 14 seats
Electric sightseeing car that can handle the tough jobs while going easy on the turf. Electric sightseeing car has the hauling power you would not expect from an electric vehicle
The outside cover of this electric car made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of sightseeing cart can be easily fixed.
As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We’ re a more reliable partner.
Specifications :
HS CODE | 8703101900 |
Qty/20'GP (Assembled) | 1 unit |
Qty/40'GP (Aassembled) | 2 units |
Performance:
Passenger capacity | 14 seats with door |
Max.Speed | 38km/h |
Range(loaded) | 90km |
Climbing Ability(loaded) | 15% |
Braking Distance | ≤4.5m |
Min.Turning Radius | 5.7m |
Min.Clearance | 150mm |
Recharge time | 8~10h |
Dimensions:
L×W×H | 4965×1520×1970mm |
F/R Tread | 1280/1270mm |
Axle Distance | 2650mm |
Curb Weight | 1290kg |
Max. loading | 1120kg |
Standard Configurations:
Motor | 72V/5KW DC motor | ||
Controller | 72Vcontroller | ||
Battery | battery 6V*12PCS | ||
Body & Roof | High impact fiber glass | ||
Windshield | See-through Laminated glass | ||
Seats | Sponge + artificial leather | ||
Rear view mirror | 2pcs | ||
Bumper | Front and rear Bumper | ||
Tire | 155/80 R12 Radial tire (Auto tire) | ||
Chassis | Welded tubular steel with rust-proof powder coated paint | ||
Steering | Power-Assisted Steering | ||
Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
Sound system | Radio and MP3 player; Speaker | ||
Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |
Product Showing:
· 3 different types of cars to choose
· 100% made in China
Whether you need to transport 14 guests with luggest box, or 12 guests with two facing rearwards, the Standard 14seats is a beautiful addition to any resort's fleet. Using the latest design and quality components from around the global, while providing excellent value for money. Ensuring a level of comfort unavailable,Adjustable camber provides longer tyre life. Rollaway protection and downhill regenerative braking are included as standard equipment.
Have your vehicle finished in your choice of colour scheme, with black or ivory coloured seats. Other options include alloy wheels, AC or DC motors, weather enclosures and rear vision mirrors. The Standard 14seats is one of the most beautiful golf carts has ever seen! With class-leading 150mm ground clearance, headlights and tail lights, this 14-seat tourist cart is worthy of your consideration.
Efficiency
Go far with little or no environmental impact. EV people movers feature 48 V batteries that drive 50-60 miles after one full charge.
Universities – Shuttle students, faculty, and parents safely around campus.
Hospitals – Transport patients and staff quickly through medical campuses.
Theme Parks –tours through the park with zero emissions.
Resorts – Just part of the luxury. Move guests through the resort with efficiency and style.
Airports – Shuttle travelers between gates. No need to miss a flight.
FAQ:
1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
4.Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
