| Place of Origin: | CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | Y230-B |
Electric sightseeeing car Molde Y230-B 72V/8.5KW 23 seats using school /park /resort
Molde Y230-B Specificate
| Qty/20'GP (Assembled) | 1 unit | |
| Qty/40'GP (Assembled) | 2 units | |
| HS Code |
8703101900
|
|
| Performance: | ||
| Passenger capacity | 23 seats | |
| Max.Speed | 28km/h | |
| Range(loaded) | 90km | |
| Climbing Ability(loaded) | 15% | |
| Braking Distance | ≤7m | |
| Min.Turning Radius | 8.5m | |
| Min.Clearance | 150mm | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 5300×1730×2250mm | |
| F/R Tread | 1470/1470mm | |
| Axle Distance | 3050mm | |
| Curb Weight | 1780kg | |
| Max. loading | 2000kg | |
| Standard Configurations | ||
| Motor | 72V/8.5KW motor | |
| Controller | 72V | |
| Body & Roof | High impact fiber glass | |
| Batteries | Batteries 6V*12 pcs | |
| Seats | Four-seat low-back seat (leather + high-repulse PU + stainless steel armrest) | |
| Rear view mirror | 2pcs +1 middle mirror | |
| Tire | Steel wheel hub / front 165 R13C Rear 185R14C vacuum meridians | |
| Chassis | Steel frame, surface rust treatment | |
| Steering | Recirculating ball type steering machine, electric assistance | |
| Front Suspension | Loaded front axle, leaf spring + cylinder type hydraulic shock absorber | |
| Rear suspension | Full-floating rear axle, leaf spring non-independent suspension, drum type hydraulic shock absorber | |
| Brake system | Front and rear drum hydraulic brakes, dual circuit hydraulic brake, parking brake | |
| Charger | 72V/25A, Input AC 220V/50HZ | |
| Dashboard | LCD meter (including current, voltage, speed, speed, cruising range, battery power, light signal, etc.) | |
| Doors and windows | Sheet metal spray door, sliding aluminum tempered glass window, under the organic glass | |
| Sound | MP3, professional speaker | |
| Switch | Start switch, light and wiper combination switch, front and rear reversing, interior lights, warning light and reversing alarm rocker switch | |
| Color Option |
Customized,white,green, yellow, blue.
|
|

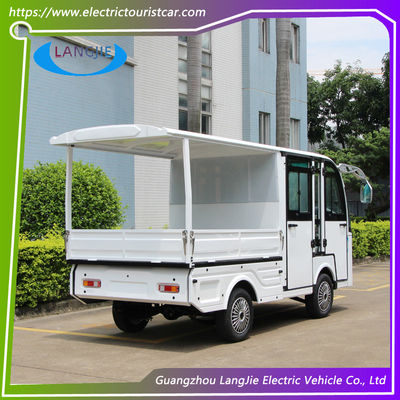

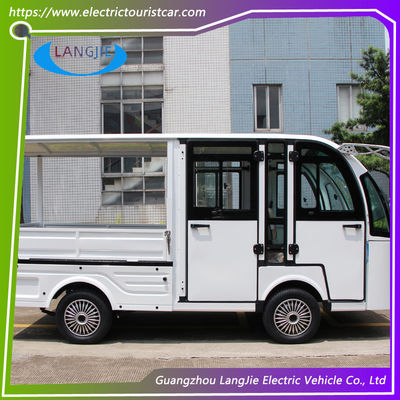

Picture:
Feather of electric cart:
* 1) based on the test conditions: 28km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
*2) Range will vary depending on temperature, grade, payload and driving style.
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
Why choose Langking's electric cars for work?
· Hundreds of configurations available
· Negotiable slope up to 15%
· 3 different types of cars to choose
· 100% made in China
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
