| Place of Origin: | Guangzhou |
| Brand Name: | Bailing |
| Model Number: | AG2 |
| Document: | Product Brochure PDF |
Model FHA2+2 Electric golf car 4 seats
Specifications :
| HS CODE | 8703101900 |
| Qty/20'GP (Disassembled) | 6 unit |
| Qty/40'GP (Disassembled) | 18 units |
Performance:
| Passenger capacity | 4 seats |
| Max.Speed | 40km/h |
| Range(loaded) | 80km |
| Climbing Ability(loaded) | 25% |
| Braking Distance | ≤3.5m |
| Min.Turning Radius | 3m |
| Min.Clearance | 170mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 3005×1350×22080mm |
| F/R Tread | 965/968mm |
| Axle Distance | 1470mm |
| Curb Weight | 575kg |
| Max. loading | 340kg |
Standard Configurations:
| Motor | 48V/5KW AC motor | ||
| Controller | 48Vcontroller | ||
| Battery | battery 8V*6PCS | ||
| Body & Roof | The front cover, seat bucket, body and rear bumper cover parts are injection molded with engineering PP special materials for aging resistance and ultraviolet protection+Grsted black square pipe frame + PP material injection molding roof | ||
| Windshield | Foldable windshield | ||
| Seats | PU leather + special sponge modeling sofa | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front Bumper | ||
| Tire | 14-inch aluminum alloy wheels + 14-inch off-road tires | ||
| Chassis | Q235 high-strength sheet metal profile welding, electrophoresis + anti-rust spraying | ||
| Steering | Power-Assisted Steering | ||
| Front Suspension | McPherson independent front suspension + spiral spring + damped hydraulic shock absorber. | ||
| Rear suspension | Integral rear axle, speed ratio 16:1 spiral spring shock absorber + damping hydraulic shock absorber + rear stabilizer bar | ||
| Sound system | Speaker | ||
| Brake system | 220 large size hydraulic drum brake rear axle: four wheel hydraulic brake, front disc rear drum + foot parking | ||
| Charger | Output:48V, Input AC 220V/50HZ～60HZ | ||
| Dashboard | Injection molding instrument panel, ignition switch, direction selection switch, high beam switch, horn headlight combination switch, water cup holder; USB + Type-c charging / double USB charging. | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

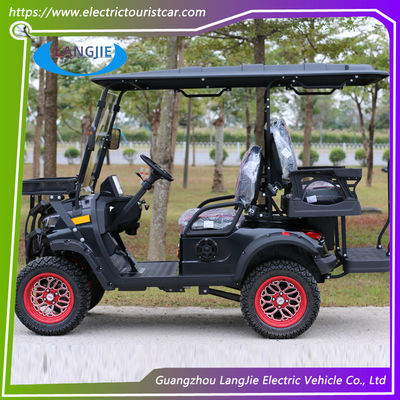

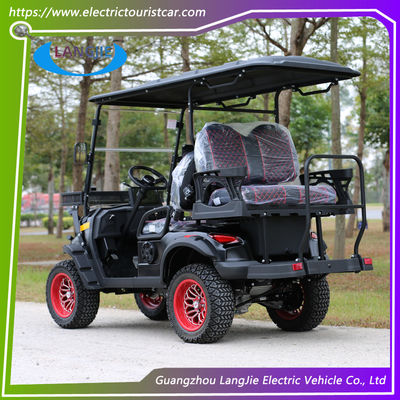

Product Showing:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
The electric tourist cart:
1. Noble and luxury appearance,the design concept of golf cart and traditional technology.
2. Electric power steering system, Suspension system good comfort.
3. High efficiency AC(Alternating Current) motor
FAQ:
1. What's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and balance paid before shipment.
4.Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order MOQ 1 unit .
7.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
8.How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from
9.Dealer:If you can do 100-200pcs in a year,then the next year,we will sign exclusive dealer with you and prosime never sold to your dealer area.
