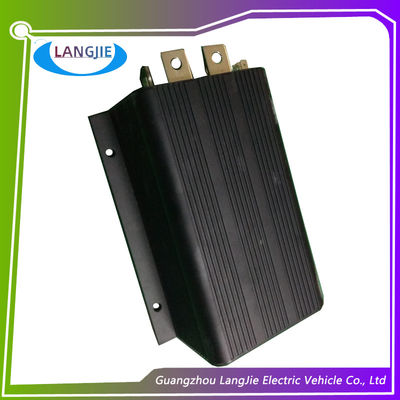

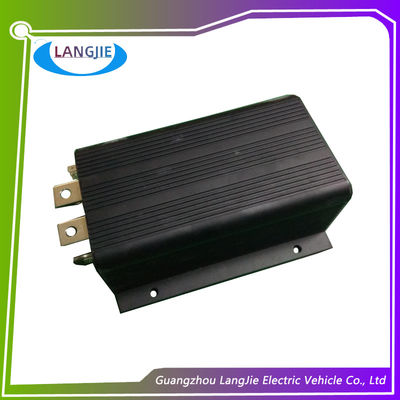

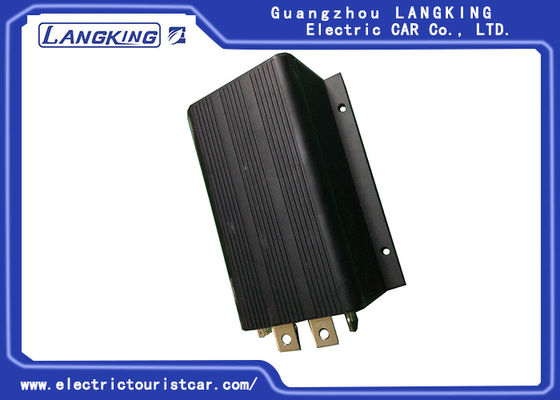

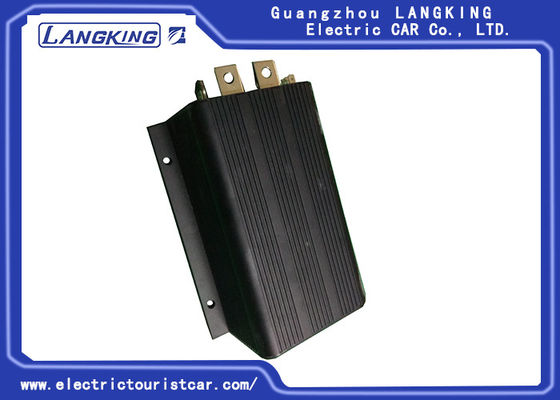

Hotel Electric Cart Parts 72V Golf Cart Chopper -40°C - 50°C Working Temperature

Specifications:

1. PWM operating frequency: 16 kHz
2. Electrical isolation to heatsink (min.): 500 VAC
3. KSI input voltage (minimum): 16.8 V
4. KSI input current (typical): 160 mA without programmer; 200 mA with programmer
5. Ambient operating temperature range: -40°C to 50°
6. Heatsink overtemperature cutback: starts at 85°C; cutoff at 95°C
7. Heatsink undertemperature cutback: 50% armature current at -25°C

Detail part point:

Overview:

CURTIS 1268 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include heavy-duty golf carts, personnel transports, burden carriers, and other utility vehicles.

The 1268 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.
