Place of Origin: | GUANGZHOU ,CHINA |
Brand Name: | LANGKING |
Certification: | CE |
Model Number: | Q020 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiated |
Packaging Details: | Nude packing & iron packing |
Delivery Time: | 20-25 working day |
Payment Terms: | T/T |
Supply Ability: | 300/UNITS/MONTH |
HS CODE: | 8703101900 | Qty/20'GP (Assembled): | 2 Units |
---|---|---|---|
Qty/40'GP (Assembled): | 4 Units | Qty/20'GP (Disassembled): | 4 Units |
Qty/40'GP (Disassembled): | 8 Units | Passenger Capacity:: | 2 Seats |
Max.Speed :: | 20 Km/h | Range(loaded):: | 70 Km |
Climbing Ability(loaded):: | 5% | Braking Distance:: | ≤2.5m |
Min.Turning Radius:: | 4m | Min.Clearance:: | 125mm |
Recharge Time:: | 8~10h | ||
High Light: | electric tourist vehicles,low speed electric vehicles |
Electric golf cart 2 seats Model Q020 Electric Towing Tractor 2 Tons using factory
Specification :
1.Used 48V control stepless speed regulation system, high efficiency;
2.Two operation type: Seated and standing steer type;
3.Unique transmission system can easily achieve the maximization of the traction;
4.Reasonable design of traction mechanism can provide driver an easy operation;
5.Popularly used in the fields of airport, railway, postal service and industrial enterprises;
6.Charger parameters: 25 Amp DC output at 48 volts; input AC 220 volts, 50HZ;
7.Tractor load capacity can be customized as required;
Dimensions | |
L×W×H: | 2440×1150×1830mm |
F/R Tread: | 870/970mm |
Axle Distance: | 1670mm |
Net weight: | 540kgs |
Max. loading weight: | 2T |
Battery: | 6V*8PCS | ||
Motor: | 48V/3KW | ||
Controller: | 48V | ||
Charger: | Fully automatic high efficiency pulse, 25 Amp DC output at 48 volts; input AC 220 volts, 50HZ | ||
Suspension: | multiple leaf springs with hydraulic shock absorbers | ||
Steering: | Single reduction rack and pinion | ||
Brakes: | Dual rear wheel mechanical self-adjusting drum brakes. Automatic park brake release with self-compensating system | ||
Chassis: | carbon steel | ||
Tires: | 18×8.5-8 6PR | ||
Body: | front body is ABS Plastic, back body is sheet iron | ||
Roof: | High impact fiber glass | ||
Windshield: | one - piece see-through POLYCARBONAT glass | ||
Dashboard : | black plastic finish, forward/reverse switch, Ammeter, turn signal switch, Headlight switch, key | ||
Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |

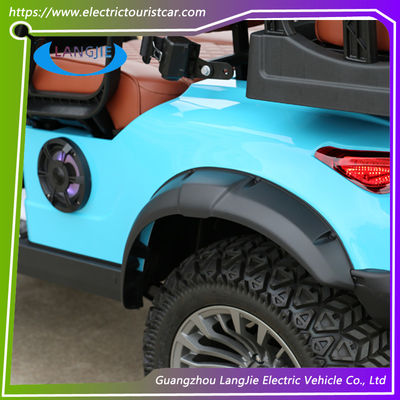

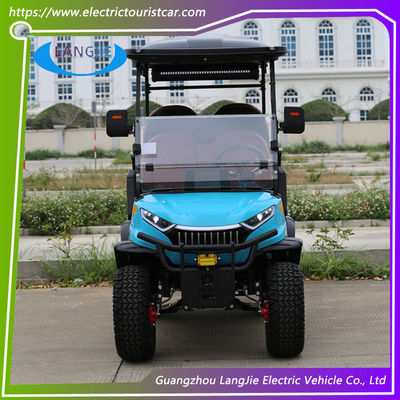

Showing Photos:
Product Advantages
1. Good aftersale-service, as most parts are manufactured by ourselves;
2. Has CE certificate for whole carts.
3. Brake system: Rear wheel Mechanical Drum Brake
4. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Rear&Side mirror; Different colors and option parts;
5. Good hill climbing ability, the system allows you to customize the car to fit your course;
6. Smart steering system, easy to make forward and backward;
7. Good climbing ablity and can park easily on Hills;
8. Can be easily to be modified to Towing Tractor.
FAQ:
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
