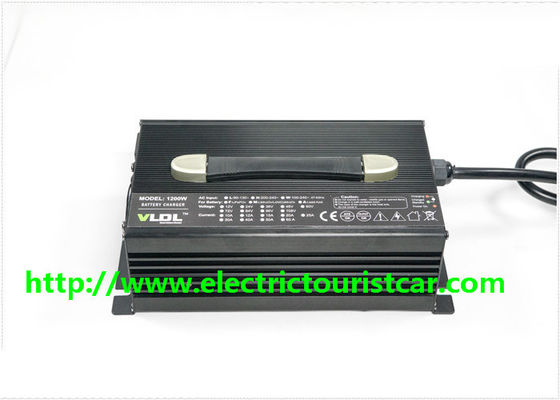

Black Housing Classic Electric Car Battery Charger 48V 25A 260*150*90 Mm

Electric Club Cart Shuttle Bus Classic Car Charger 48V 25A





Technical parameters


Case Material:	Aluminum	Size:	260*150*90 MM
Net Weight:	4.5 KG	Input Volt:	110 or 230 Vac
Output:	Rated 48V 20A, Max 54.6 / 58.4 / 58.8V	Housing Color:	Black Or Silver
Battery Types:	Lithium Or Lead Acid Battery	Charging Method:	Pre Charge, CC, CV, Floating / Trickle / Shut Off
Applied To EV:	Electric Golf Cart, Electric Club Car and E-tourist Car





4 Steps Portable Automatic Battery Charger 48V 20A High Power With Aluminum Housing



Brief Description:



Portable battery charger 48 volts 20 amps with aluminum housing and small size. Input 110V or 230 Vac. Max charging voltage is 54.6V or 58.4V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or 57.6V / 58.8V for lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 48V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.



Specifications:



AC input voltage: 110 or 240Vac

AC input freq.: 50 / 60 Hz

Rated output: 48V 20Amps

Max charging voltage: 58.8V

Dimensions(LxWxH): 260 x 150 x 90 mm

Net weight: 4.5 KG

Housing: Aluminum



Charging method:



For Lead-acid Battery: pre-charge, CC, CV, floating.

For Lithium Battery: pre-charge, CC, CV, trickle, auto cut-off.





Technology:



High Frequency Switching Mode Power Supply

Smart MCU controlled





Protections:



Short circuit, Over-voltage, Over-temperature, Reverse Polarity.





Warranty:



Fully 2-year warranty with Free Replacing Policy.

Response in 24 hours after getting failed product report from customers.





Applications:



Charging 48V Lead-acid Battery Powered Electric Golf Cart, Electric Club Car and E-tourist Car.





Input Plug & Output Connector:



We supply different plugs and connector by customer's applications.





Output series: 1,200W Size: 260×150×90 mm Net weight: 4.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V   Frequency: 47~63HZ	VL1260L	12V LiFePO4 Battery		14.6V	60A	CC5~8%
	VL1260	12V Lead-acid Battery	13.5V	14.7V	60A	CC20%
	VL1460	14V AGM Battery	13.5V	14.4V	60A	CC20%
	VL1660L	16V LiFePO4 Battery		18.2V	60A	CC5~8%
	VL2435LM	24V Li-MnO2 Battery		29.4V	35A	CC5~8%
	VL2435L	24V LiFePO4 Battery		29.2V	35A	CC5~8%
	VL2435	24V Lead-acid Battery	27.6V	29.4V	35A	CC20%
	VL3620LM	36V Li-MnO2 Battery		42V	20A	CC5~8%
	VL3620L	36V LiFePO4 Battery		43.8V	20A	CC5~8%
	VL3620	36V Lead-acid Battery	41.4V	44.1V	20A	CC20%
	VL4818LM	48V Li-MnO2 Battery		54.6V	18A	CC5~8%
	VL4818L	48V LiFePO4 Battery		43.8V	18A	CC5~8%
	VL4818	48V Lead-acid Battery	55.2V	58.8V	18A	CC20%
	VL6015L	60V LiFePO4 Battery		73V	15A	CC5~8%
	VL6015	60V Lead-acid Battery	67.5V	73.5V	15A	CC20%
	VL7213L	72V LiFePO4 Battery		87.6V	13A	CC5~8%
	VL7213	72V Lead-acid Battery	81V	88.2V	13A	CC20%
	VL8411L	84V LiFePO4 Battery		102.2V	11A	CC5~8%
	VL8411	84V Lead-acid Battery	94.5V	102.9V	11A	CC20%
	VL9610L	96V LiFePO4 Battery		116.8V	10A	CC5~8%
	VL9610	96V Lead-acid Battery	108V	117.6V	10A	CC20%
Note: customized input / output / plug type / connectors are available.



Battery Charger Knowledge



Q. What charger should I choose?
A. It depends on the type of battery, the capacity of the battery, the application and how much you are prepared to spend. Just tell us your battery information, DANL battery charger engineer will recommend the most suitable charger for you or customized by your batteries and applications.



Q. Can I charge several batteries in parallel?
A. The charger has no problem whatsoever of charging or maintaining several batteries, as long as they are connected in parallel. The charger sees the parallel connected batteries as one large battery. The sum of the capacity has to be below the recommendation for your model. Please note that there could be a high current between batteries when they are connected together, i.e. use high quality wiring.



Q. Can you really connect and then forget about the charger?
A. That depends on your batteries state and charger’s type. Danl lead-acid battery chargers have maintenance mode(floating mode), charger charges with very small current at this mode, so you can forget about the charger but not exceed 24 hours. If your battery is lithium type and without BMS system, please don’t forget the charger.
