GUANGZHOU LANGKING ELECTRIC CAR CO., LTD.
--- Professional Electric Vehicles Manufacturer In China ---
GUANGZHOU LANGKING ELECTRIC CAR CO., LTD.
--- Professional Electric Vehicles Manufacturer In China ---
 |
| Place of Origin: | GUANGZHOU ,CHINA |
| Brand Name: | LANGKING |
| Certification: | CE |
| Model Number: | F047 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Steel Frame or Non Packing |
| Delivery Time: | 20-25 WORKING DAY |
| Payment Terms: | T/T |
| Supply Ability: | 300Unit/month |
| Passenger Capacity: | 2 Seats With Cargo | Max.Speed: | 24km/h |
|---|---|---|---|
| Range(loaded): | 80km | Recharge Time: | 8~10h |
| Min.Clearance: | 105mm | L×W×H: | 3280×1230×1880mm |
| F/R Tread: | 870/980mm | Cargo Box Size: | 1500mm*1210mm*300mm |
| HS CODE: | 8703101900 | Battery: | Battery 6V*8PCS |
| Controller: | 48V | Motor: | 48V/3KW DC Motor |
| Rear View Mirror: | 2pcs | Color Option: | White, Grey, Navy, Red, Khaki, Purple, Green Etc. |
| High Light: | electric utility carts,airport electric cart |
||
CE Cetification 48V/3KW DC Motor Electric 2 Seater Golf Buggy Battery Operated China Controller
Features:
1.48V/3KW DC motor, powerful, superior traction performance, low noise, overload capacity.
2. China controller, Special supporting electronic control and stepless speed change system, the controller has lower temperature, greater control current, more stable, more powerful motor, and play the highest efficiency of the motor
3.Free-maintenance Batteries 6V*8 pcs,
4. Comfortable seats.
Performance
| Passenger capacity | 2 seats |
| Max.Speed | 24km/h |
| Range(loaded) | 80km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5m |
| Min.Clearance | 105mm |
| Recharge time | 8~10h |
Dimensions
| L×W×H | 3280×1230×1880mm |
| F/R Tread | 870/980mm |
| Axle Distance | 2450mm |
| Curb Weight | 700kg |
| Max. loading | 400kg |
| Cargo box size | 1500mm*1210mm*300mm |
| Cargo box material | Steel-Frame Construction +Composite Board |
Standard Configurations
| Motor | 48V/3KW DC motor | |
| Controller | 48V | |
| Battery | battery 6V*8PCS | |
| Body & Roof | ABS Plastic | |
| Windshield | one - piece see-through POLYCARBONATE glass | |
| Seats | Sponge + artificial leather | |
| Rear view mirror | 2pcs | |
| Bumper | Front | |
| Tire | Steel 18×8.50-8 6PR | |
| Chassis | Welded tubular steel with rust-proof powder coated paint | |
| Steering | Single reduction rack and pinion | |
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | |
| Rear suspension | Leaf spring+shock absorber non-independent suspension | |
| Lighting system | 2 headlights, 2 rear turn signals and 2 rear brake lights | |
| Sound system | Horn, back-up buzze | |
| Brake system | Dual rear wheel mechanical self-adjusting drum brakes. | |
| Charger | Automatic high efficiency pulse, Output:48V/20A, Input AC 220V/50HZ | |
| Dashboard | Forward/reverse switch, turn signal indicator, ignition key, headlight switch, horn button,,electric power consumption indicator,four cup holders | |
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. |

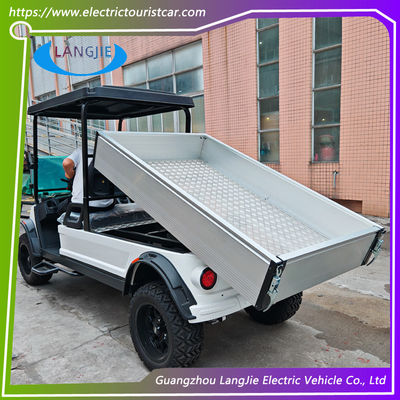

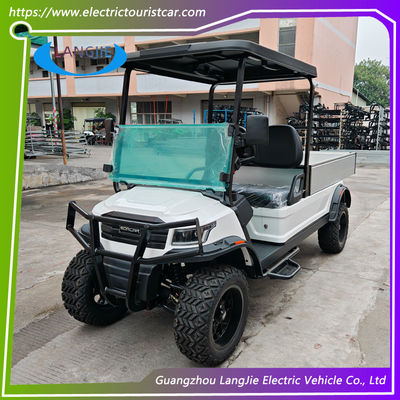

Showing Photo :
Packing&Shipping:
1) Clients can choose to assemble the sun blend or rain curtain.
2) Design your own color
FAQ:
1, what's your warranty time?
All Langking golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2, What's the production time?
Normally for 30 working days
3, How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
