Place of Origin: | GUANGZHOU ,CHINA |
Brand Name: | LANGKING |
Certification: | CE |
Model Number: | Y143 |
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | Negotiate |
Packaging Details: | Nude packing |
Delivery Time: | 20-25 working day |
Payment Terms: | T/T |
Supply Ability: | 300 units/month |
Country Of Original: | CHINA | Qty/20'GP (Assembled): | 1 Unit |
---|---|---|---|
Qty/40'GP (Assembled): | 2 Units | Passenger Capacity: | 14 Seats |
Max.Speed: | 28km/h | Range(loaded): | 100km |
Climbing Ability(loaded): | 20% | Braking Distance: | ≤4.5m |
Min.Turning Radius: | 6.5m | Min.Clearance: | 150mm |
Recharge Time: | 8~10h | ||
High Light: | electric tourist vehicles,electric sightseeing bus |
14 seaters New model Electric shuttle bus /shuttle bus /tourisrt coach with door for hotet/park /university
Feather of electric shuttle bus:
1.Type sofa chair, comfortable
2. Efficient special driving axle
3.FR/disc RR/drum, safey
4. Deep cycle battery of super capacity can provide this electric cart’s higher driving ability
This type electric car jalopy with 12 pcs Free-maintenance Batteries and motor powered 7.5kw ,low noise, no emissions. Noble, elegant appearance, stretch the temperament of the harmonious with nature, type sofa chair, four groups of two-way damper configurations have excellent ride comfort.
Model Y143 detail information:
Qty/20'GP (Assembled) | 1 unit | |
Qty/40'GP (Assembled) | 2 units | |
Performance: | ||
Passenger capacity | 14 seats | |
Max.Speed | 28km/h | |
Range(loaded) | 100km | |
Climbing Ability(loaded) | 20% | |
Braking Distance | ≤4.5m | |
Min.Turning Radius | 6.5m | |
Min.Clearance | 150mm | |
Recharge time | 8~10h | |
Dimensions | ||
L×W×H | 5070×1410×2060mm | |
F/R Tread | 1280/1270mm | |
Axle Distance | 2800mm | |
Curb Weight | 1450kg | |
Max. loading | 1190kg | |
Standard Configurations | ||
Motor | 72V/7.5KW AC motor | |
Controller | 72V controller | |
Body | High impact fiber glass front enclosure and Aluminum alloy body | |
Roof | Aluminum alloy framework + high strength ABS | |
Batteries | Free-maintenance Batteries 6V/210Ah*12 pcs | |
Windshield | See-through Laminated glass | |
Seats | Sponge + artificial leather | |
Rear view mirror | 2pcs and 1 Inner mirror | |
Tire | 155/80 R12 Radial tire (Auto tire) | |
Chassis | Welded tubular steel with rust-proof powder coated paint | |
Steering | Power-Assisted Steering | |
Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | |
Rear suspension | Leaf spring+shock absorber non-independent suspension | |
Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | |
Sound system | Radio and MP3 player; Speaker | |
Brake system | 4-wheel hydraulic brake system(front disc brake, rear drum brake) + handbrake | |
Charger | Automatic high efficiency pulse, Output:72V/30A, Input AC 220V/50HZ | |
Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | |

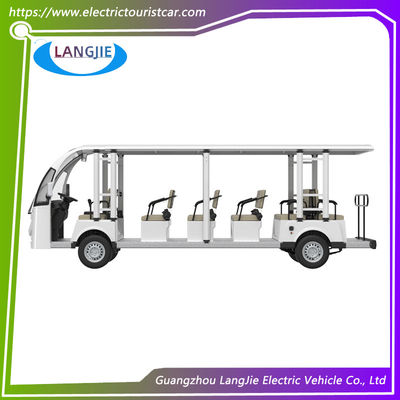

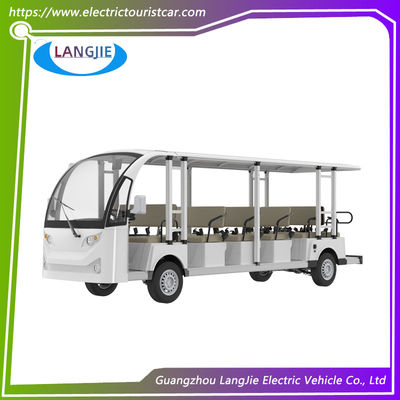

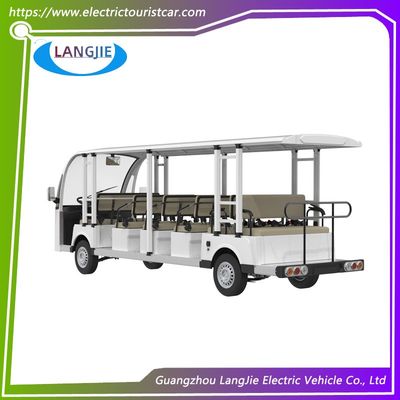

Product Showing:
The detail of products and prices may change in different conditions, please be sure to contact the sales representative to confirm every thing before placing the order.
Application
* Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
Our Servince:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
