Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h

Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h

    • Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h
    • Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h
    • Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h
    • Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h
    • Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h
  • Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h

    Product Details:

    Place of Origin: GUANGZHOU ,CHINA
    Brand Name: LANGKING
    Certification: CE
    Model Number: Y145

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiated
    Packaging Details: NUDE PACKING
    Delivery Time: 20-25 WORKING DYA
    Payment Terms: T/T
    Supply Ability: 300 /UNIT/MONTH
    Contact Now
    Detailed Product Description
    HS CODE: 8703101900 Qty/20'GP (Assembled): 1 Unit
    Qty/40'GP (Aassembled): 2 Units Passenger Capacity: 14 Seats
    Max.Speed: 28 Km/h Range(loaded): 100 Km
    Climbing Ability(loaded): 25% Braking Distance: ≤4.5m
    Min.Turning Radius: 6.5 M Min.Clearance: 150mm
    Recharge Time: 8~10h

    Small Electric Sightseeing Bus 7.5KM Motor 72V dry battery Electric Tour Car 14 seats for park



    Dimensions



    L×W×H 4965×1520×1970mm
    F/R Tread 1280/1270mm
    Axle Distance 2650mm
    Curb Weight 1260kg
    Max. loading 1190 kg
    Motor 72V/7.5 KW AC motor
    Controller 72V controller
    Battery battery 6V*12PCS
    Body & Roof High impact fiber glass
    Windshield See-through Laminated glass
    Seats Sponge + artificial leather
    Rear view mirror 2pcs
    Bumper Front and rear Bumper
    Tire 155/80 R12 Radial tire (Auto tire)
    Chassis Welded tubular steel with rust-proof powder coated paint
    Steering Power-Assisted Steering
    Front Suspension The MacPherson Strut suspension system, coil spring+shock absorber
    Rear suspension Leaf spring+shock absorber non-independent suspension
    Sound system Radio and MP3 player; Speaker
    Brake system Hydraulic double circuit four wheel brake (front disc brake rear hub brake), and mechanical parking (hand brake).
    Charger Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ
    Dashboard Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button
    Color Option White, Grey, Navy, Red, Khaki, Purple, Green etc.

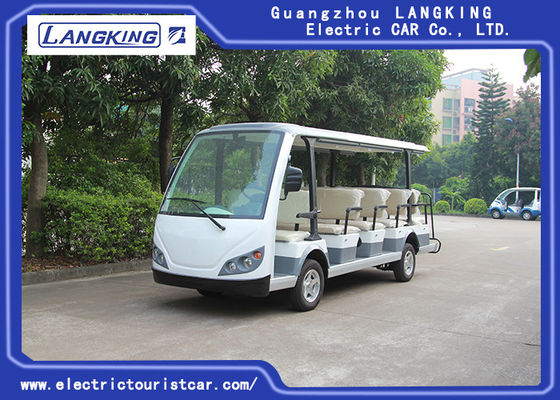

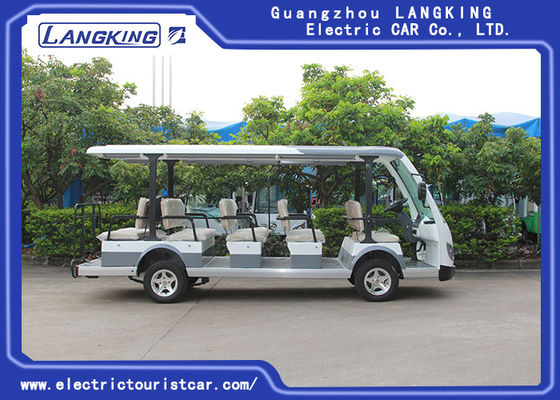

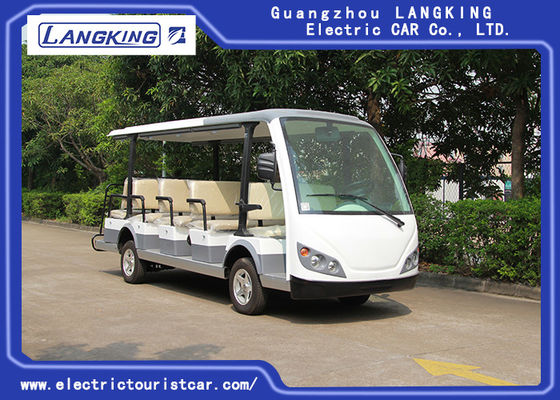

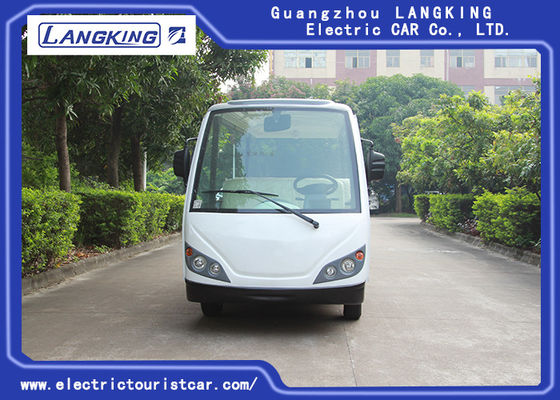

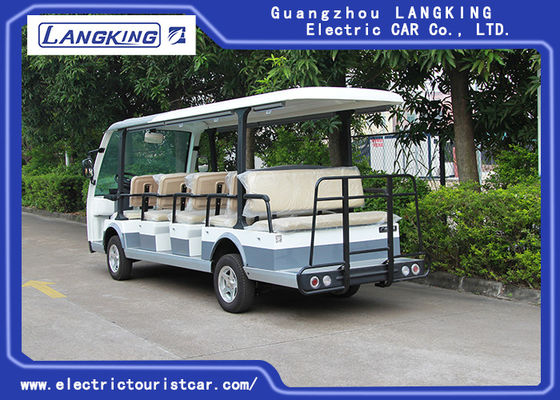

    Showing photo:



    Small Electric Shuttle Car , 14 People Electric Sightseeing Bus Max.Speed 28 km/h



    City Bus 14 Seats Electric Shuttle Bus Vehicle


    Passenger Capacity:14 people
    Maximum loading:1275 kg

    Range:80 km
    Maximum speed:25km/h


    Classic design, various use


    Adaptation:14 seats tourist bus is fit for different area. It can be used at scenic spot, park, airport, campus city etc.


    - L×W×H 5045×1650×2310mm

    - Motor 7.5kW(AC)

    - Battery 6Vx12pcs

    - Passenger Capacity 15 seats

    - Kerb Weight 1550kg

    - Gross Weight 2825kg

    - Axle Distance 2650mm

    - F Tread 1280mm

    - F Tread 1360mm

    - Min. Clearance 150mm

    - Min Turning Radius 6.5m

    - Braking distance≤5m

    - Braking distance 25km/h

    - Range 80km

    - Charging Time 8~10h

    - Climbing Ability(full loading) 20% (AC)



    Our Services



    1. Strict quality control step by step.

    2.After market service available.

    3. Spare part available.

    4. Company’s own shipping port storage warehouse and pre-shipment inspection by our professional engineer.

    5.24 hours online service.



    Life-time Spare Parts Supplies



    In the life-time of the vehicles or maximum within a fews years we stop the production of any model, we still supply the spare parts for after service.



    FAQ:

    1. What's your payment term?
    T/T 30% deposit and balance paid before shipment.

    2. Can we also purchase the parts
    Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales,

    3. How do you provide after-sales once customer bought the cart from us?
    Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.
